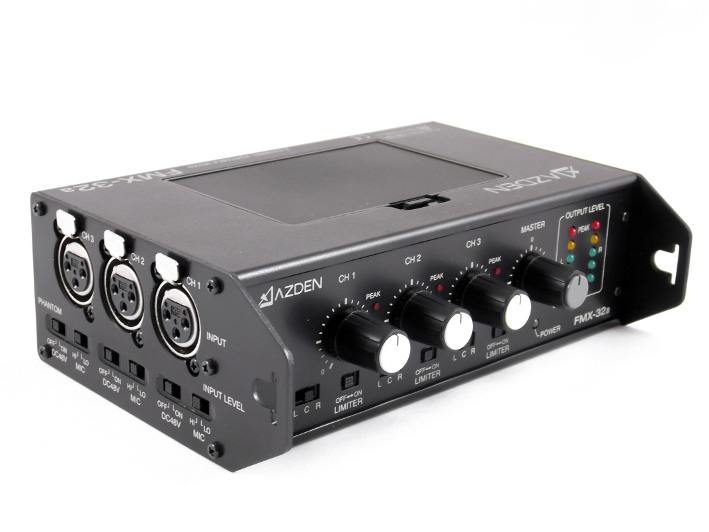

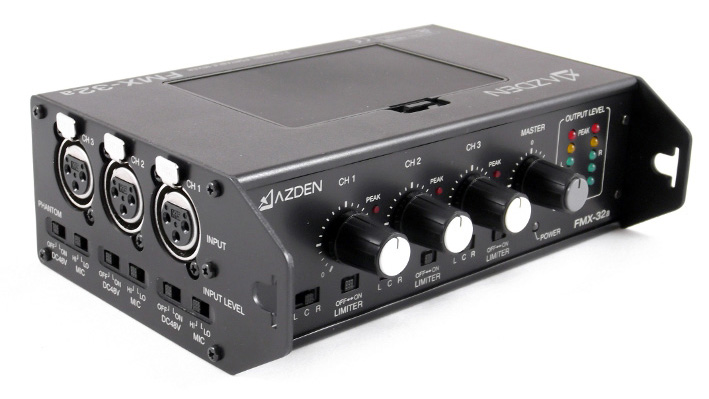

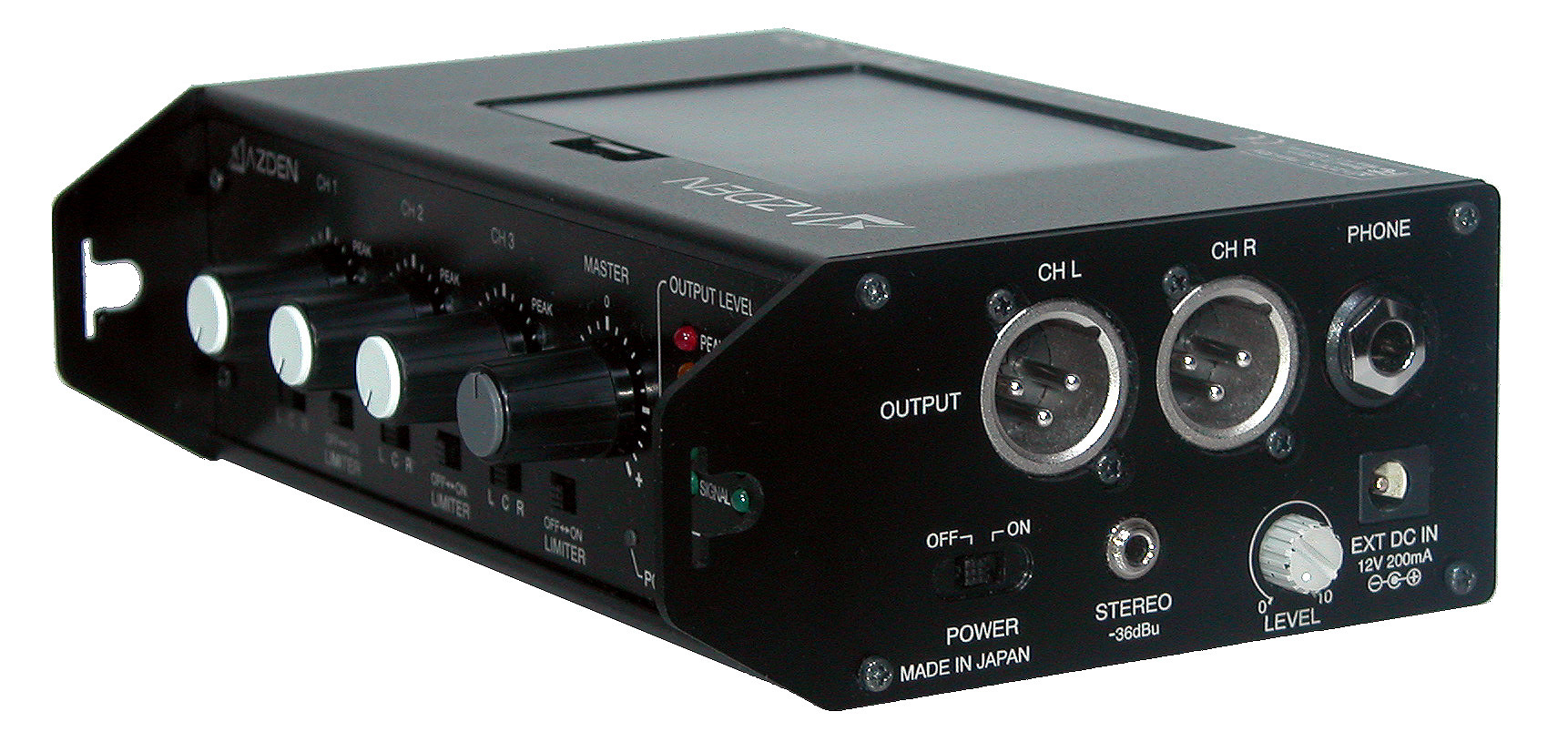

Azden FMX-32a Mixer

New and improved, the FMX-32a now uses the same circuit topology as the more expensive FMX-42 series mixers. With improved signal to noise ratio and wider frequency response the new FMX-32a is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (6-“AA”) mixer can be attached directly to the camera with supplied hook-and-loop fastener or neck worn with the optional FMX-32c carrying case. The FMX-32a has the following features: 3 XLR microphone inputs each with 2 input settings, 3 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.

Technical Specs:

Frequency Response

• Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
• Monitor Output: 50-17,000Hz (-3dB)

Noise Level:

• Left & Right Channel:-120dBu (A weighted, Input Equivalent Level)
• T.H.D.: less than 0.005% @ 1KHz (+10dBu output)

 MIC Input Level

• LO  -20 dBu Gain -6Db
• HI  -3dBu Gain  +45Db

Monitor Output

• 3.5mm Stereo: -4dBu (32 ohm load)
• (Recommended load 16-100 ohms)

Maximum Output Level

• Balanced Output: +20dBu (5K ohms)
• Unbalanced Output (3.5mm) -19dBu (2K ohms)

Battery Type/Duration:

6 – AA Alkaline – 15 hours

Current Drain:

• 47mA nominal (Phantom Power Off)
• 100mA maximum (Phantom Power On)

Phantom Power

• Voltage: 48VDC (+/- 4VDC)

Dimensions:

• Size: 53.5H x 170W x 120D mm (2.19 x 6.93 x 4.75 inches)
• Weight w/o Battery: 26.45 ounces (750 grams)
