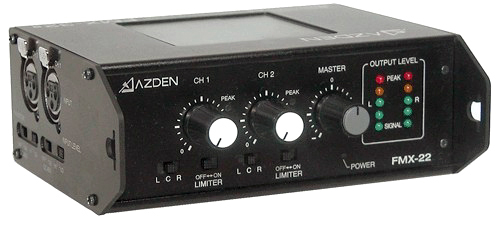

Azden FMX-22 Mixer

New and improved, the FMX-22 now uses the same circuit topology as the more expensive Azden mixers. With improved signal to noise ratio and wider frequency response the new FMX-22 is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (4-“AA”) mixer can be attached directly to any flat surface with supplied hook-and-loop fastener. The FMX-22 has the following features: 2 XLR microphone inputs each with 2 input settings, 2 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.

Technical Specs:

Frequency Response:

• Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
• Monitor Output: 50-17,000Hz (-3dB)

Noise Level:

• Left & Right Channel: -119dBu (A weighted, Input Equivalent Level)
• T.H.D.: less than 0.005% @ 1KHz (+10dBu output)

MIC Input Level:

• LO -21 dBu Gain +58dB max gain
• HI -5dBu Gain +42dB max gain

Monitor Output:

• 3.5mm Stereo: -4dBu (32 ohm load)
• (Recommended load 16-100 ohms)

Maximum Output Level:

• Balanced Output:
• +15dBu (5K ohms)
• Unbalanced Output (3.5mm):
• -20dBu (2K ohms)

Battery Type/Duration:

• 4 – AA Alkaline – 15 hours

Current Drain:

• 77mA nominal (Phantom Power Off)
• 118mA maximum (Phantom Power On)

Phantom Power:

• Voltage: 48VDC (+/- 1.5VDC)

Dimensions:

• Size: 53.5H x 145W x 120D mm (2.19 x 5.70 x 4.75 inches)
• Weight w/o Battery: 23.58 ounces (670 grams)
