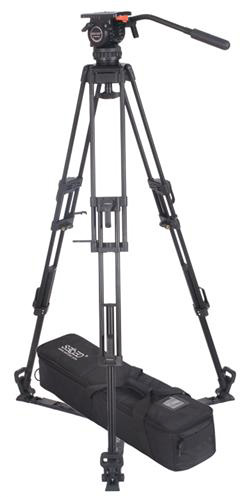

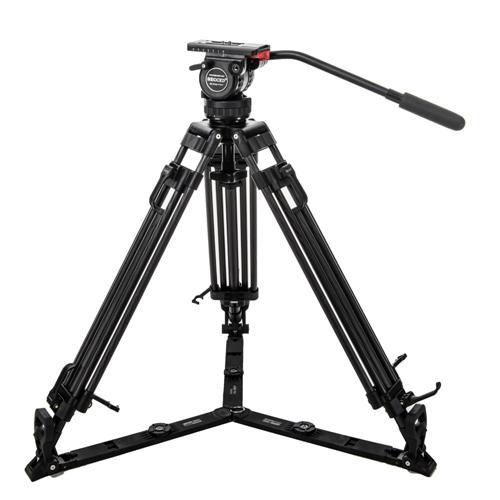

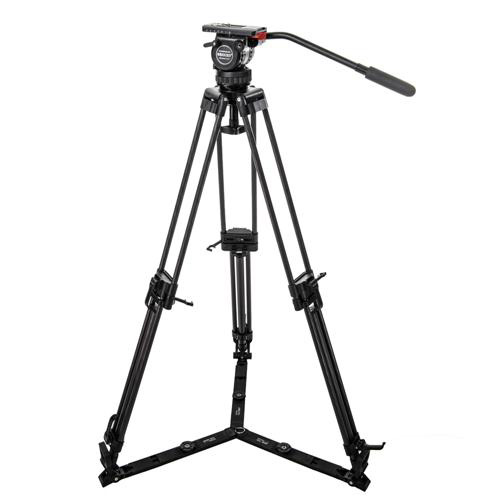

Configuration

Head: SC-DV6/75RP

Tripod: SC-DV/AL75D

Pan Bar:SC-PB10

Ground Spreader:SC-FS100

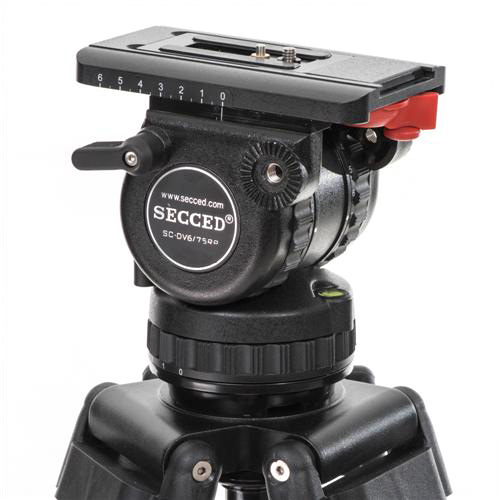

Head: SC-DV6/75RP



It has 8kg max. payload, compatible with most Mini-DV and HDV camcorder.

Improved drag system enhances smoothness of head movement, matching the quality of most famous brand. In addition, graded drag adjustment ensure fast change of tilt and pan drag.

Step-type counterbalance system help operator to balance the camera in a minute without changing over and over to look for the right amount of counterbalance.

Quick release mechanism ensures operator to quickly mount or dismount the camera on the head.

All main parts are made with high quality CNC machine. It enhances parts machining precision, ensures high reliability and improves fluid head performance substantially.

In order to enhance rigidity of plastic parts, high quality hard plastic is adopted to manufacture all plastic parts of fluid heads, especially those control elements (brake level, clamp level etc.), which results in considerable high durability of SECCED fluid heads.

75mm ball head, compatible with most 75mm tripod on the market.

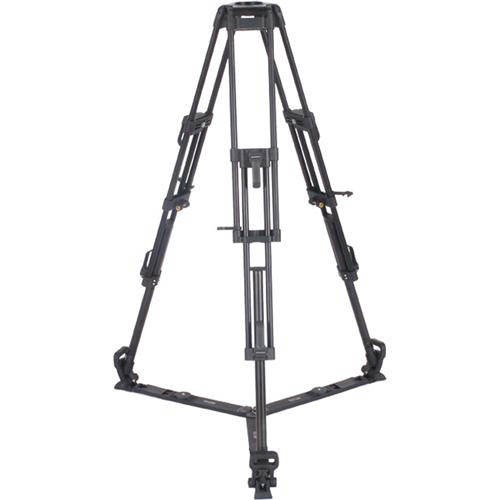

Tripod: SC-DV/AL75D

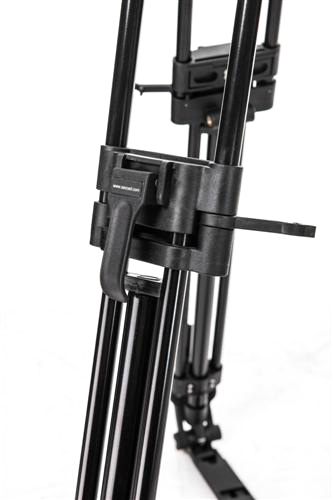

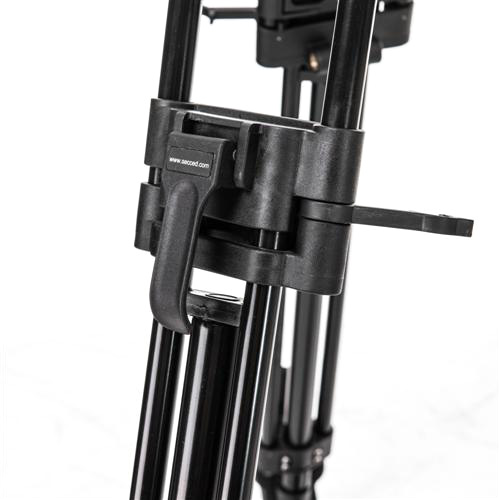

Speed Locking system ensures quick setup of tripods and operators can get it ready for work within a minute.

Equipped with off ground and ground spreader

All plastic parts adopt the imported material, enhance the quality of spare parts and ensure high rigidity of tripods.



Reach Plus 1 Kit:



Weight: 6.4 kg

Max Paylaod: 6.9 kg

Height Range: 55-162 cm

Bowl Diameter: 75 mm

Transport Length: 86 cm



Head:



Weight: 2.5 kg

Counterbalance: 0-7 steps

Sliding range-plate: 110mm

Grades of tilt drag: 0-3

Grades of pan drag: 0-3

Tilt range: -75°/+90°

Tripod fitting: 75mm



Payload

C.O.G (mm)    Min Payload (kg)   Max Payload (kg)

    50                   0.00                          6.90

    75                   0.00                          5.60

   100                  0.00                          4.71

   125                  0.00                          4.13



Tripod:

Weight (With Ground Spreader): 3.7kg

Max. Payload: 20kg

Height Range (With Ground Spreader): 40-147cm

Height Range (With Off Ground Spreader): 49-142cm

Bowl Size: 75mm

Transport Length: 71cm

Extension: Double

Material: Aluminium
