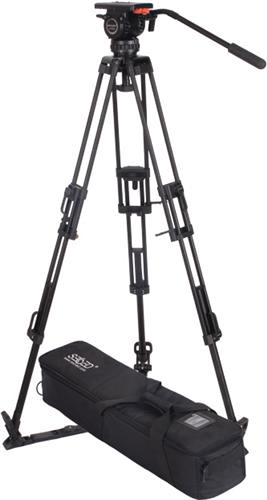

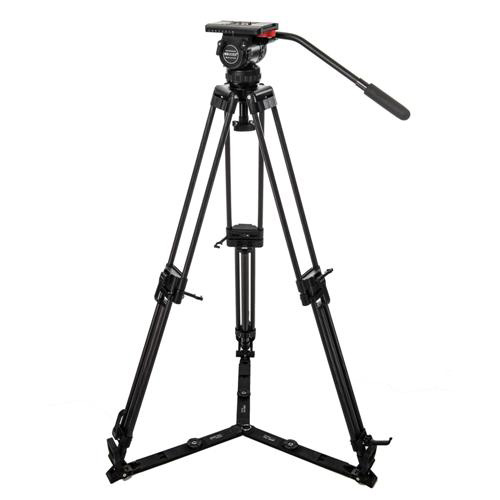

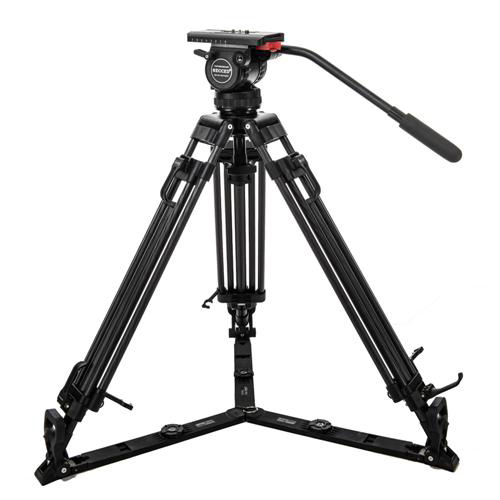

SECCED Reach Plus 2 Kit
Configuration
Head: SC-DV10/75RP
Tripod: SC-DV/AL75D
Pan Bar:SC-PB10
Ground Spreader:SC-FS100

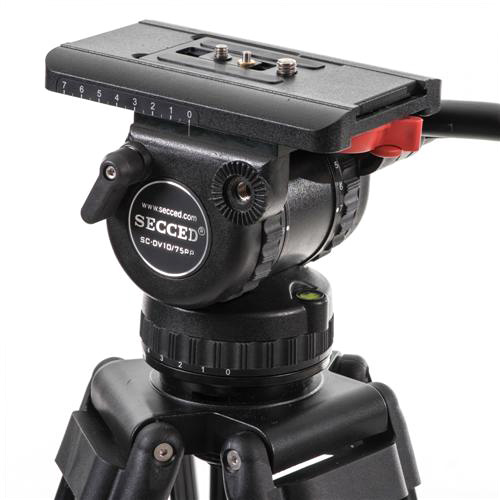

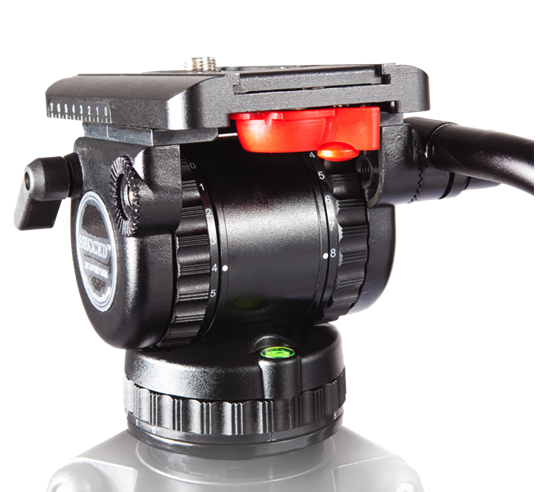

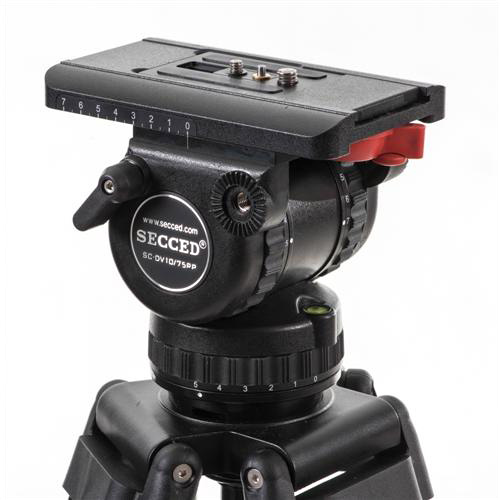

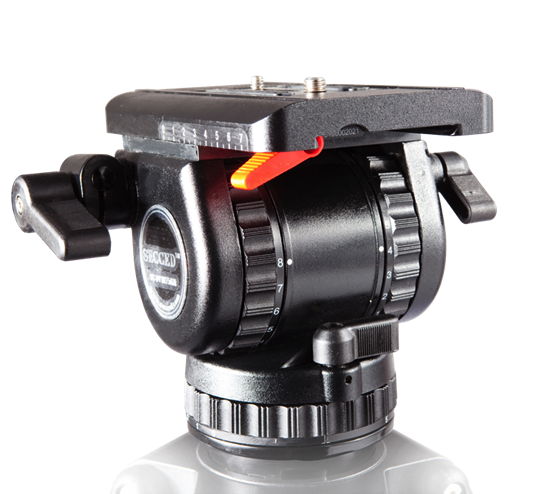

Head: SC-DV10/75RP
Max capacity of 11kg, offer outstanding support for ENG configuration cameras and film-ready HDV cameras.
Improved drag system enhances smoothness of head movement, matching the quality of most famous brand. In addition, graded drag adjustment ensure fast change of tilt and pan drag.
Step-type counterbalance system help operator to balance the camera in a minute without changing over and over to look for the right amount of counterbalance.
Quick release mechanism ensures operator to quickly mount or dismount the camera on the head.
All main parts are made with high quality CNC machine. It enhances parts machining precision, ensures high reliability and improves fluid head performance substantially.
In order to enhance rigidity of plastic parts, high quality hard plastic is adopted to manufacture all plastic parts of fluid heads, especially those control elements (brake level, clamp level etc.), which results in considerable high durability of SECCED fluid heads.
75mm ball head, compatible with most 75mm tripod on the market.
Tripod: SC-DV/AL75D

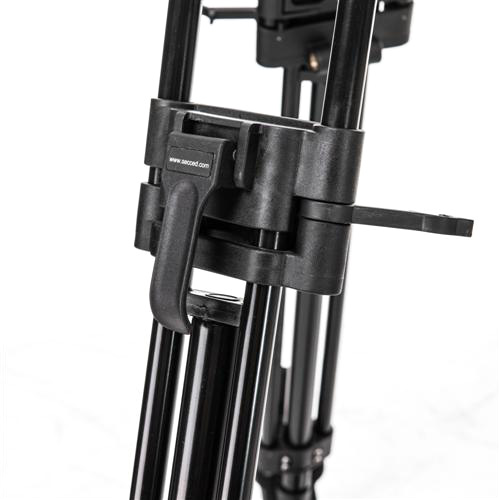

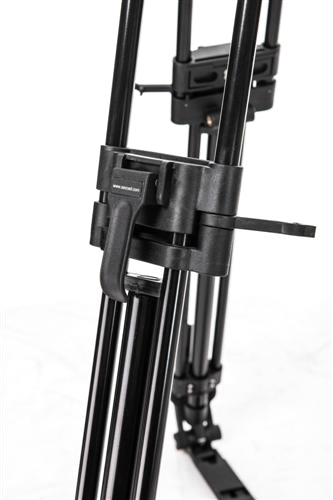

Speed Locking system ensures quick setup of tripods and operators can get it ready for work within a minute.
Equipped with off ground and ground spreader.
All plastic parts adopt the imported material, enhance the quality of spare parts and ensure high rigidity of tripods.
Reach Plus 2 Kit:
Weight: 6.8kg
Max Paylaod: 11.4kg
Height Range: 55-162mm
Bowl Diameter: 75 mm
Transport Length: 86cm
Head:
Weight: 3 kg
Counterbalance: 0-7 steps
Sliding range-plate: 70mm
Grades of tilt drag: 0-5
Grades of pan drag: 0-5
Tilt range: -75°/+90°
Tripod fitting: 75mm
Payload
C.O.G (mm) Min Payload (kg) Max Payload (kg)
75 0.00 11.4
100 0.00 9.60
125 0.00 8.24
150 0.00 7.22
Tripod:
Weight (With Ground Spreader): 3.7kg
Max. Payload: 20kg
Height Range (With Ground Spreader): 40-147cm
Height Range (With Off Ground Spreader): 49-142cm
Bowl Size: 75mm
Transport Length: 71cm
Extension: Double
Material: Aluminium
