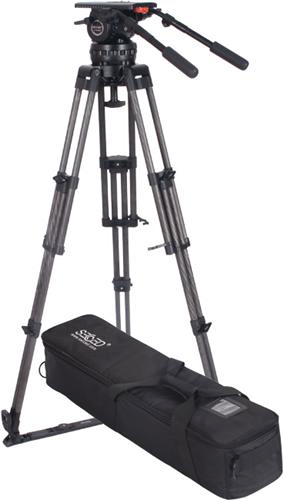

Configuration

Head: SC-V25/150RP

Tripod: SC-EFP/CF150D

Pan Bar:SC-PB20

Ground Spreader:SC-FS100

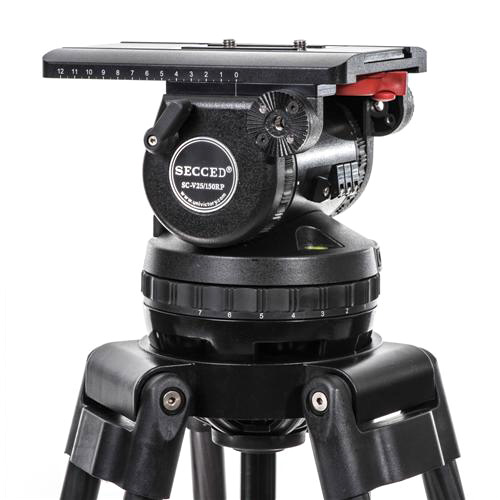

Head: SC-V25/150RP

0-44kg payload range provides great support for EFP, OB, and Studio application.

Improved drag system enhances smoothness of head movement, matching the quality of most famous brand. In addition, graded drag adjustment ensure fast change of tilt and pan drag.

Step-type counterbalance system help operator to balance the camera in a minute without changing over and over to look for the right amount of counterbalance.

Quick release mechanism ensures operator to quickly mount or dismount the camera on the head.

All main parts are made with high quality CNC machine. It enhances parts machining precision, ensures high reliability and improves fluid head performance substantially.

In order to enhance rigidity of plastic parts, high quality hard plastic is adopted to manufacture all plastic parts of fluid heads, especially those control elements (brake level, clamp level etc.), which results in considerable high durability of SECCED fluid heads.

150mm ball head, compatible with most 150mm tripods on the market.

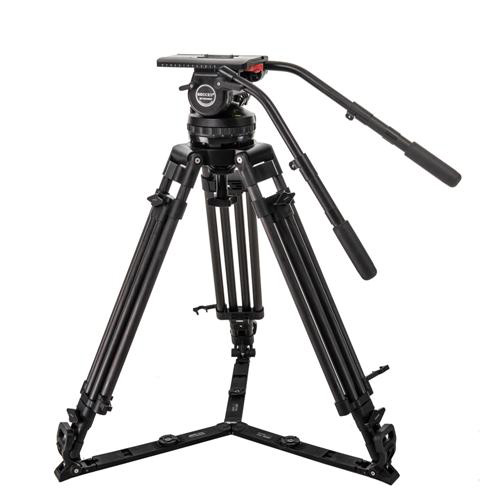

Tripod: SC-EFP/CF150D

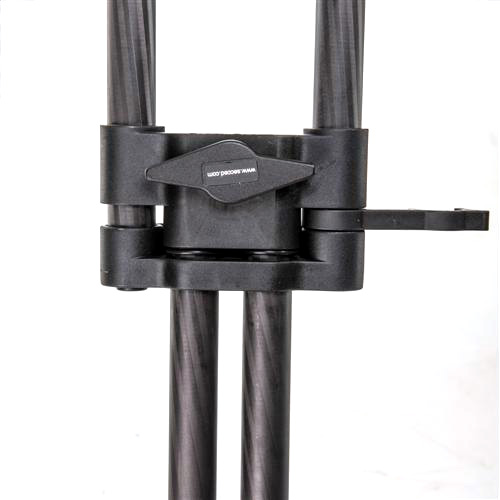

Speed Locking system ensures quick setup of tripods and operators can get it ready for work within a minute.

Equipped with off ground and ground spreader.

All plastic parts adopt the imported material, enhance the quality of spare parts and ensure high rigidity of tripods.



Reach Plus 5 Kit:

Weight: 13.0kg

Max Payload: 44kg

Height Range: 80-180mm

Bowl Diameter: 150mm

Transport Length: 98cm



Head:

Weight: 7.03kg

Counterbalance: 0-7 steps

Sliding range-plate: 120mm

Grades of tilt drag: 0-7

Grades of pan drag: 0-7

Tilt range: -75°/+90°

Tripod fitting:  150mm



Payload

C.O.G (mm)      Min Payload (kg)     Max Payload (kg)

100                             0.00                          44.0

125                             0.00                          38.4

150                             0.00                          34.1

175                             0.00                          30.7

200                             0.00                          27.9



Tripod:

Weight (With Ground Spreader): 5.45kg

Max. Payload: 95kg

Height Range (With Ground Spreader): 59-160cm

Height Range (With Off Ground Spreader): 61-159cm

Bowl Size: 150mm

Transport Length: 78cm

Extension: Double

Material: Carbon Fiber
