• 17.6 lb Weight Capacity
• 75mm Leveling Half Ball

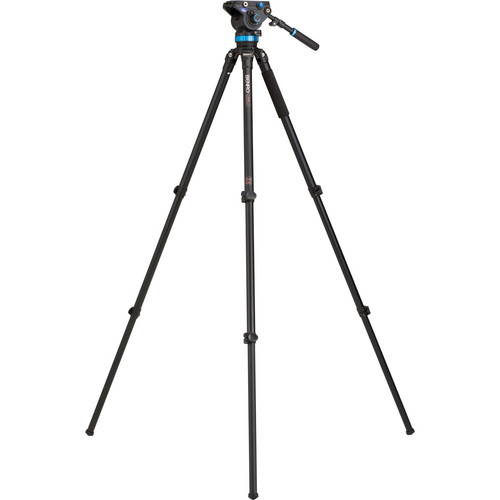

• 63.8" Maximum Height / 33.1" Closed
• Stepless Pan and Tilt Drag Adjustment
• +90° to -70° Tilt / 360° Pan

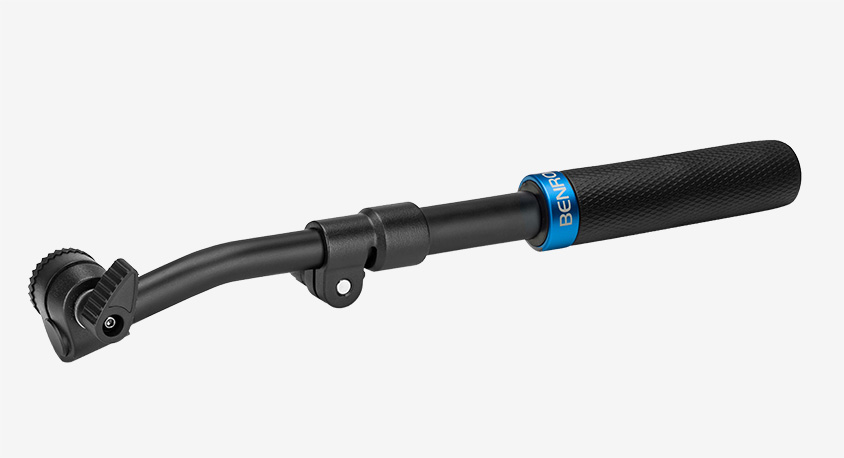

• Right or Left Side Pan Bar Mounting

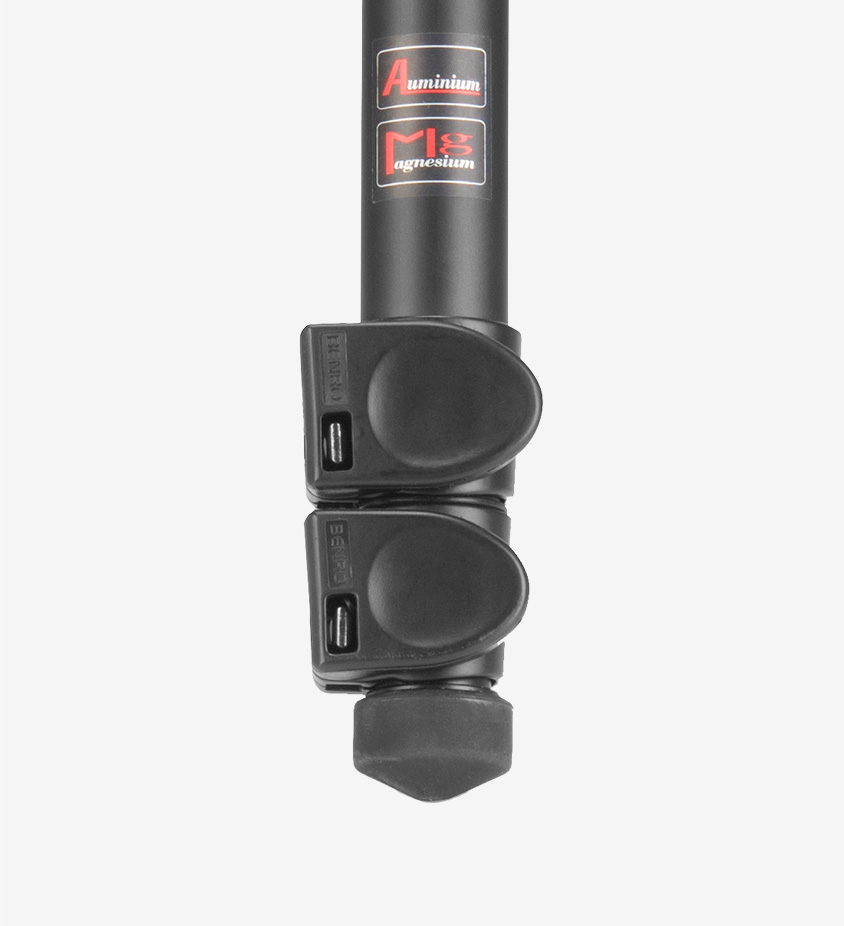

• Flip-Lock Leg Release

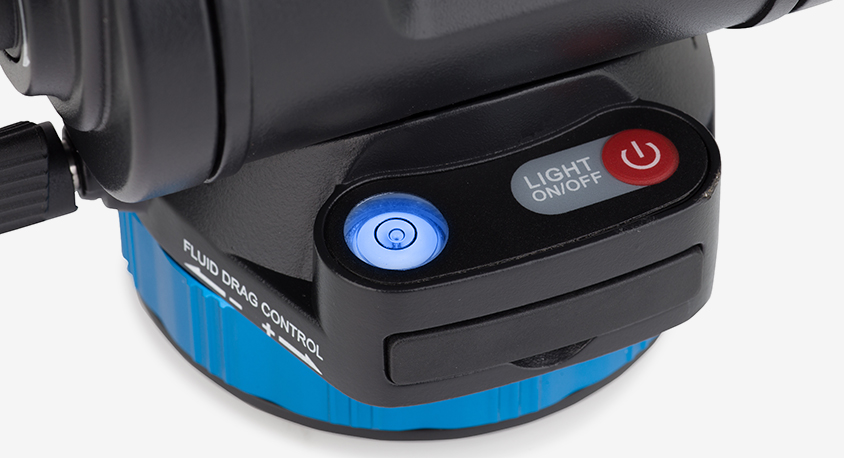

• Illuminated Bubble Level

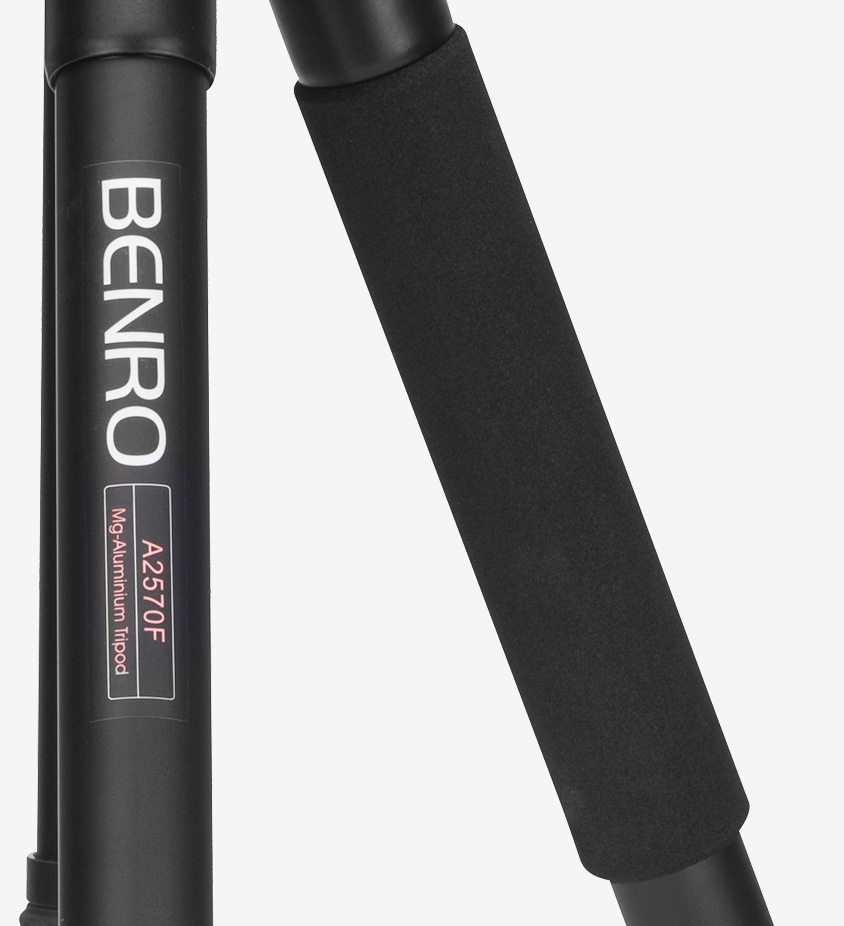

• Aluminum Tripod Legs
• System Weighs 11 lb

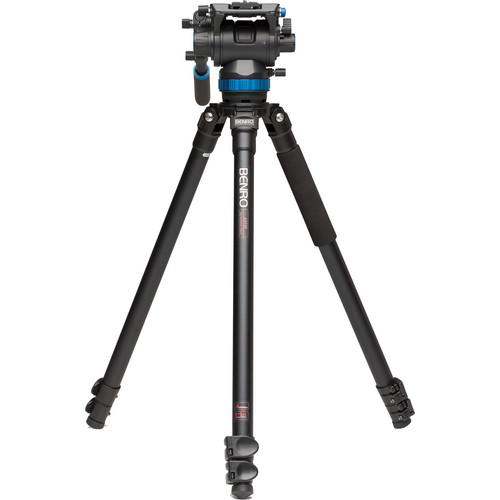

System

Load Capacity17.6 lb / 8 kg

Maximum Height63.8" / 162 cm

Folded Length33.1" / 84 cm

Weight11 lb / 5 kg

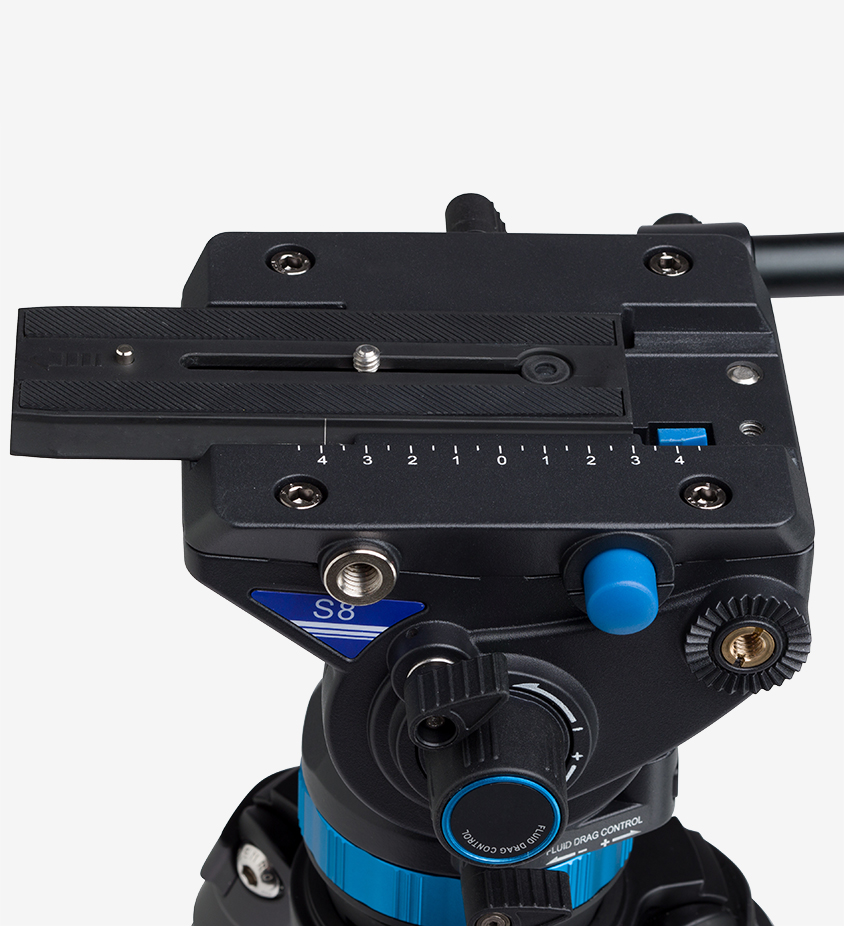

Head

Load Capacity17.6 lb / 8 kg

Head to Tripod Mounting Thread3/8"-16 - removable 75 mm half ball included

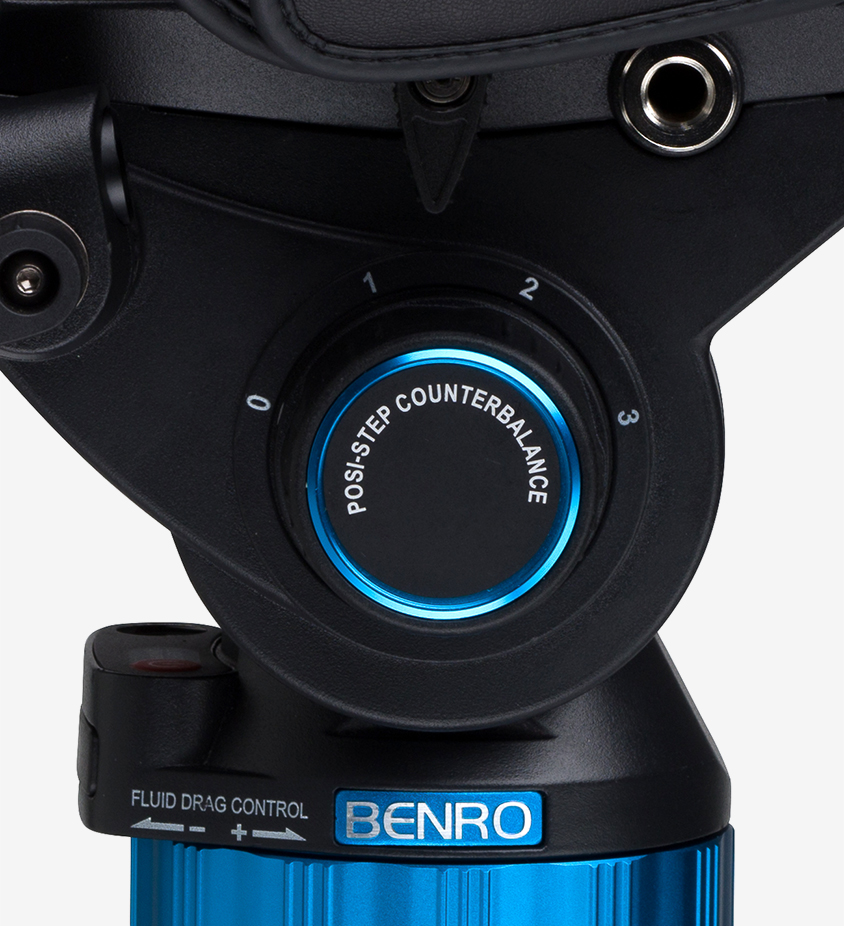

Counter Balance SystemStepped: 0 - 3

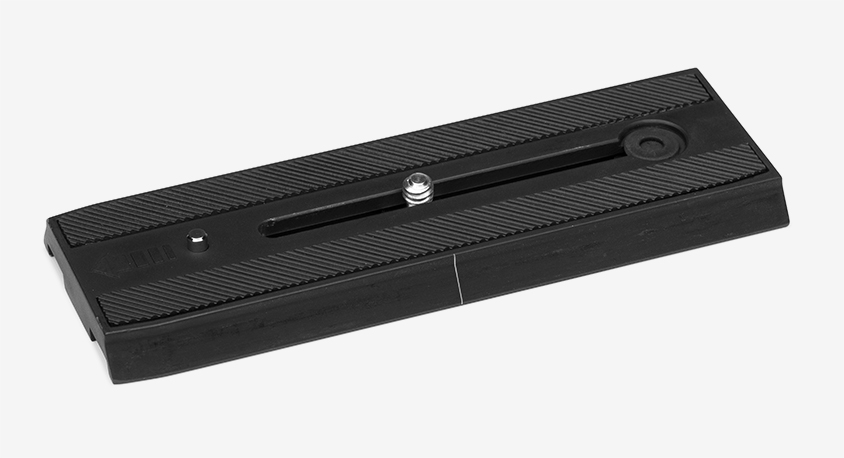

Quick Release/Wedge PlateQR13 plate with 1/4"-20 and 3/8"-16 screw

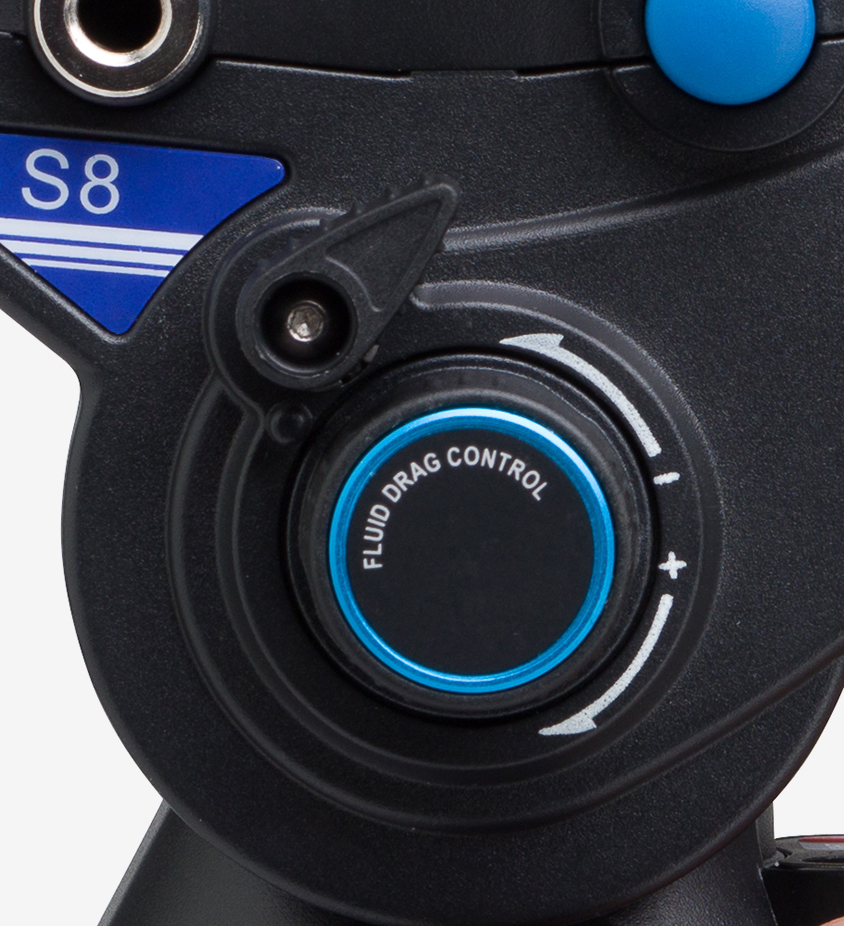

Tilt DragStepless

Tilt Range+90° to -70°

Tilt LockYes

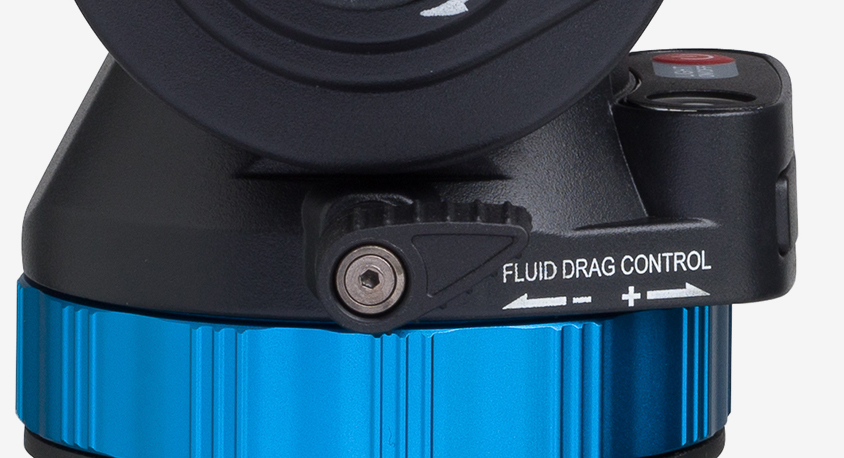

Pan DragStepless

Pan Range360°

Pan LockYes

Leveling Bubble/IlluminatedYes / yes

Temperature Range-4°F to 140°F / -20°C to 60°C

Height5.9"

Weight5.7 lb / 2.6 kg

Tripod

Head Attachment Fitting75 mm bowl interface

Leg Sections3

SpreaderNone - independent leg spread with 3 stops

Foot TypeRubber - 24 mm
