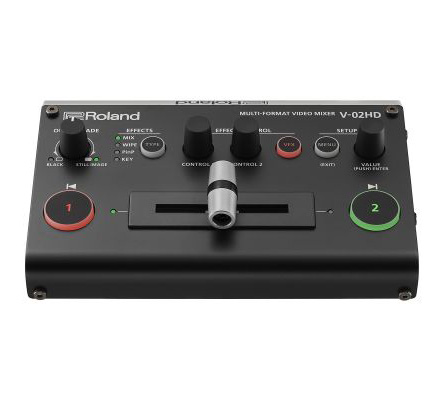

Roland V-02HD Multi-Format Video Mixer สวิทเชอร์รองรับสัญญาณภาพ HDMI 2 แชนแนล พร้อมเอฟเฟกต์ในตัว Picture-in-Picture, Green Screen, Keying, Transition หลากหลายรูปแบบควบคุมได้ทั้งออโต้และแมนนวล HDMI เอาท์พุท 2 แชนแนล Preview และ Program เหมาะสำหรับงานบรอดคาสท์ Facebook Live, Youtube Live หรือ Streaming
Specifications
|
| Video Processing |
4:4:4 (YPbPr), 10-bit |
| Connectors |
Input
2 x HDMI type A
Output
Program: 1 x HDMI type A
Preview: 1 x HDMI type A |
| Broadcast System |
NTSC
PAL |
| Input Formats |
Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576i/p: 50
480i/p: 59.94
Computer (60 Hz)
WUXGA (1920 x 1200)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)
VGA (640 x 480)
- The refresh rate is the maximum value of each resolution
- Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
- 1920 x 1200/60 Hz: Reduced blanking |
| Output Formats |
Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576p: 50
480p: 59.94
Computer (60 Hz)
WUXGA (1920 x 1200)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)
- Conforms to VESA DMT Version 1.0 Revision 11
- Output refresh rates of 800 x 600 to 1400 x 1050 are 75 Hz when unit's frame rate setting is 50 Hz
- 1920 x 1200/60 Hz: Reduced blanking |
|
| Audio Processing |
Sampling Rate: 24-bit, 48 kHz |
| Audio Formats |
Linear PCM, 24-bit, 48 kHz, 2-ch |

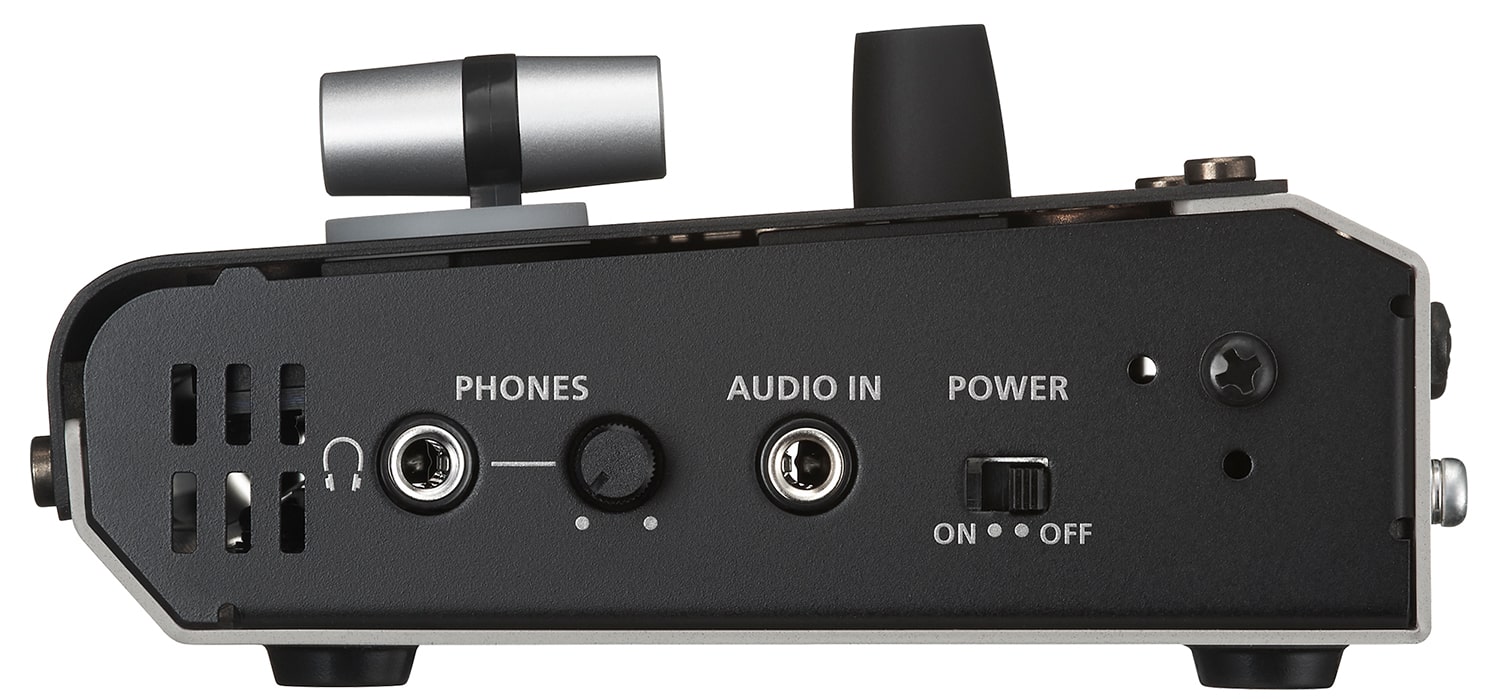

| Connectors |
Input
2 x HDMI type A (shared with video)
1 x 3.5 mm stereo mini
Output
Program: 1 x HDMI type A (shared with video)
Preview: 1 x HDMI type A (shared with video)
1 x 3.5 mm stereo mini |
| Other Specs |
Input Level
-10 dBu (+8 dBu max)
Output Level
Phones: 92 mW + 92 mW (32 Ohms)
Input Impedance
45 kOhms
Output Impedance
Phones: 10 Ohms |
|
| Mounting |
Tripod: 1/4"-20 threaded mounting hole
Desktop: 4 x Rubber feet |
| Interface |
USB Memory: USB Type-B (for backup from PC)
CTL/EXP: 1/4" TRS phone type |
| Power |
Supply: AC adapter
Current Draw: 1.1 A
Power Consumption: 10 W |
| Operating Temperature |
32 to 104°F / 0 to 140°C |
| Dimensions |
6.30 x 4.25 x 2.01" / 16 x 10.8 x 5.1 cm |
| Weight |
1.3 lb / 0.6 kg
|
