SmallRig Shoulder Pad Pro 2837B / 2837 แผ่นรองบ่าสำหรับ baseplate Sony VCT-14 พร้อมเพลทติดกล้องแบบ Manfrotto 501 ช่วยให้การสลับกล้องระหว่างขึ้นบ่าและขาตั้งทำได้อย่างรวดเร็ว ที่ติดอุปกรณ์เสริม ARRI ทั้งสองข้างสำหรับติดด้ามจับ พร้อมช่องใส่ Rod 15mm ทั้งด้านหน้าและหลัง

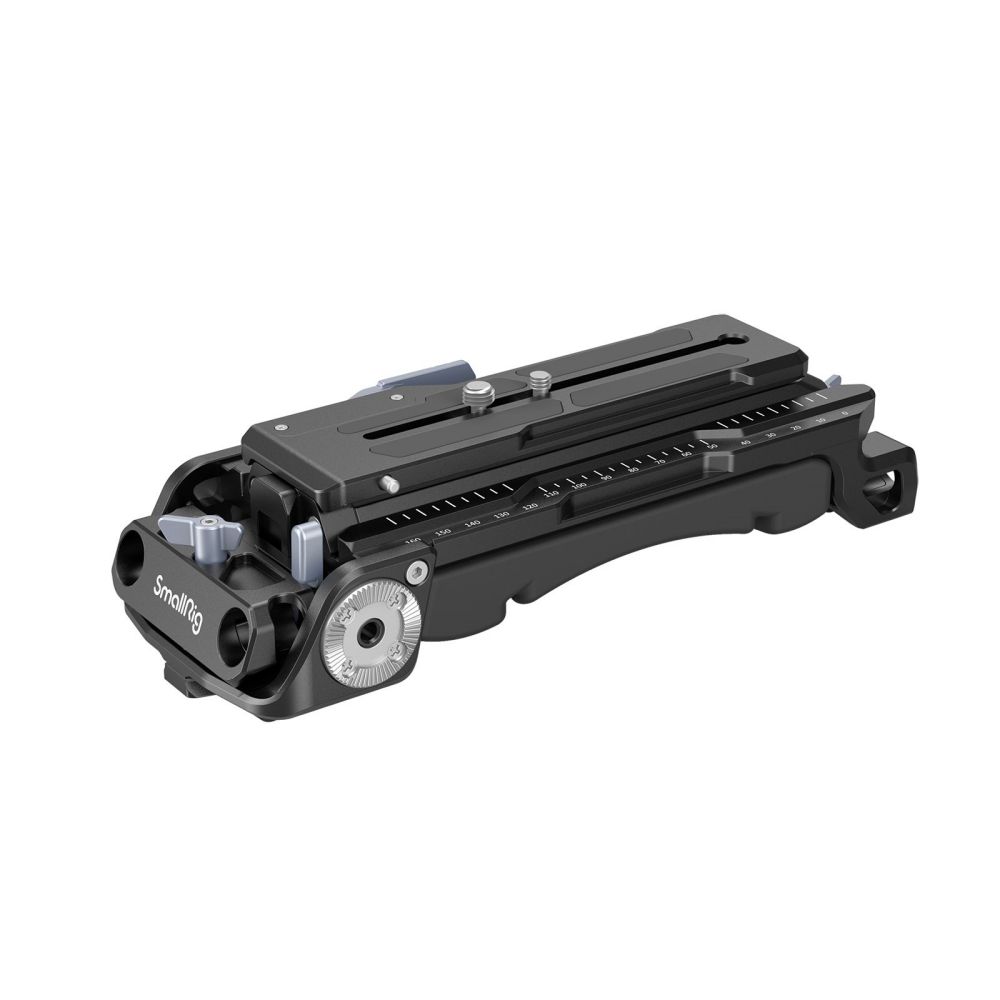

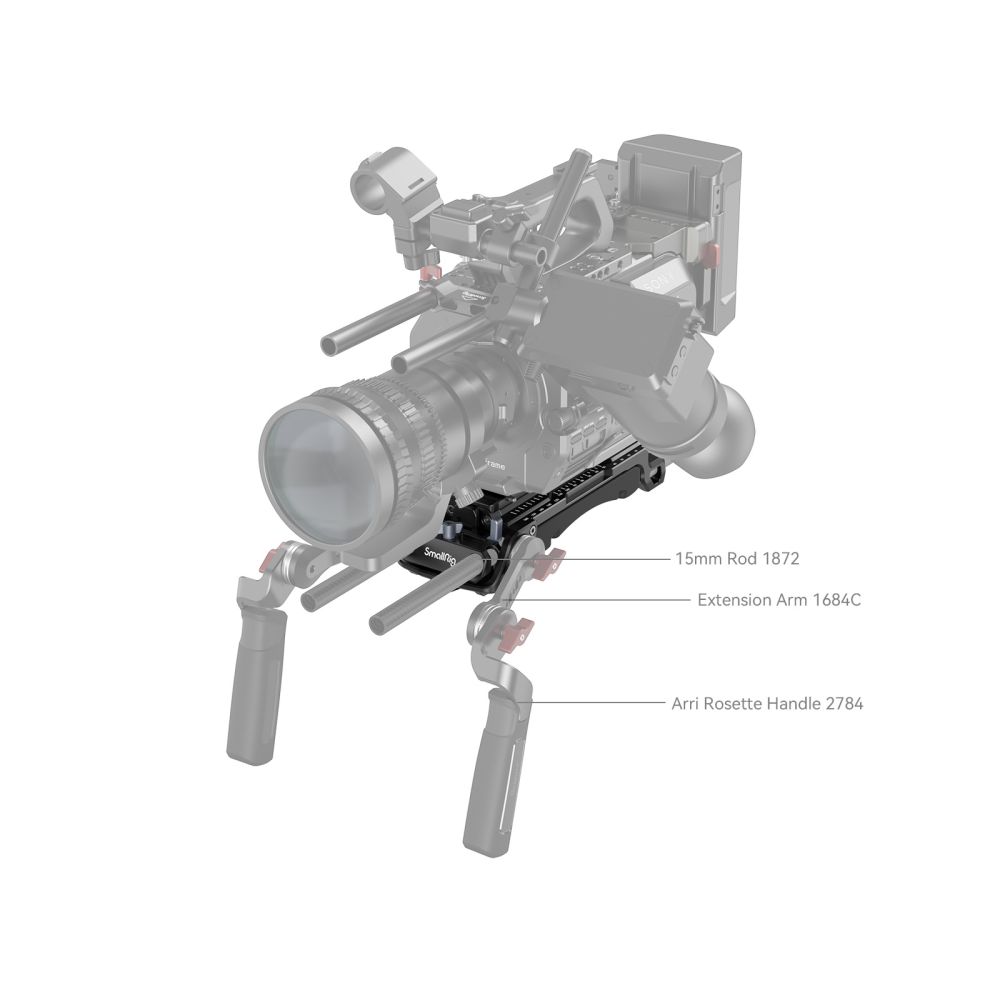

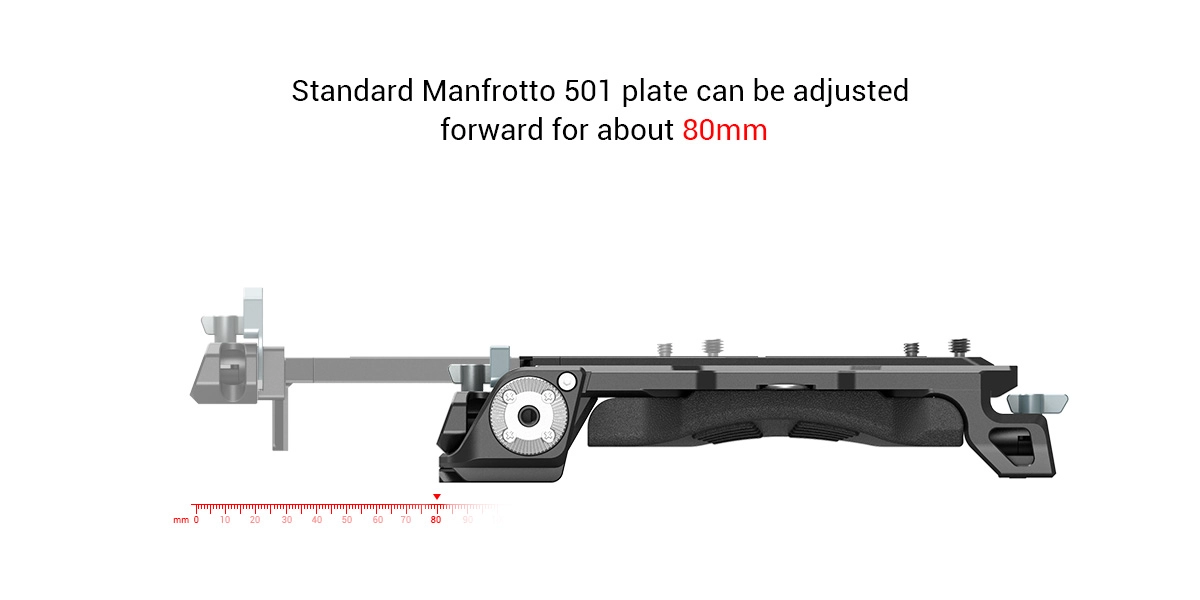

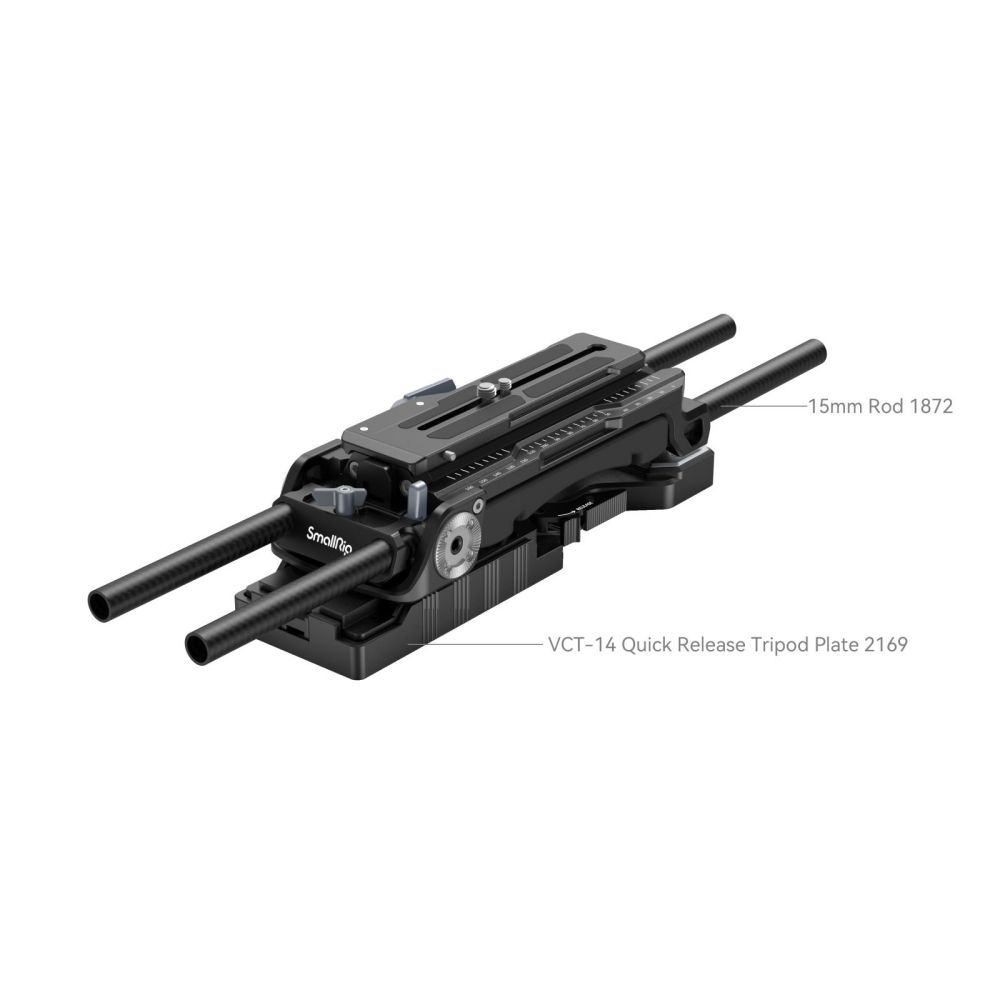

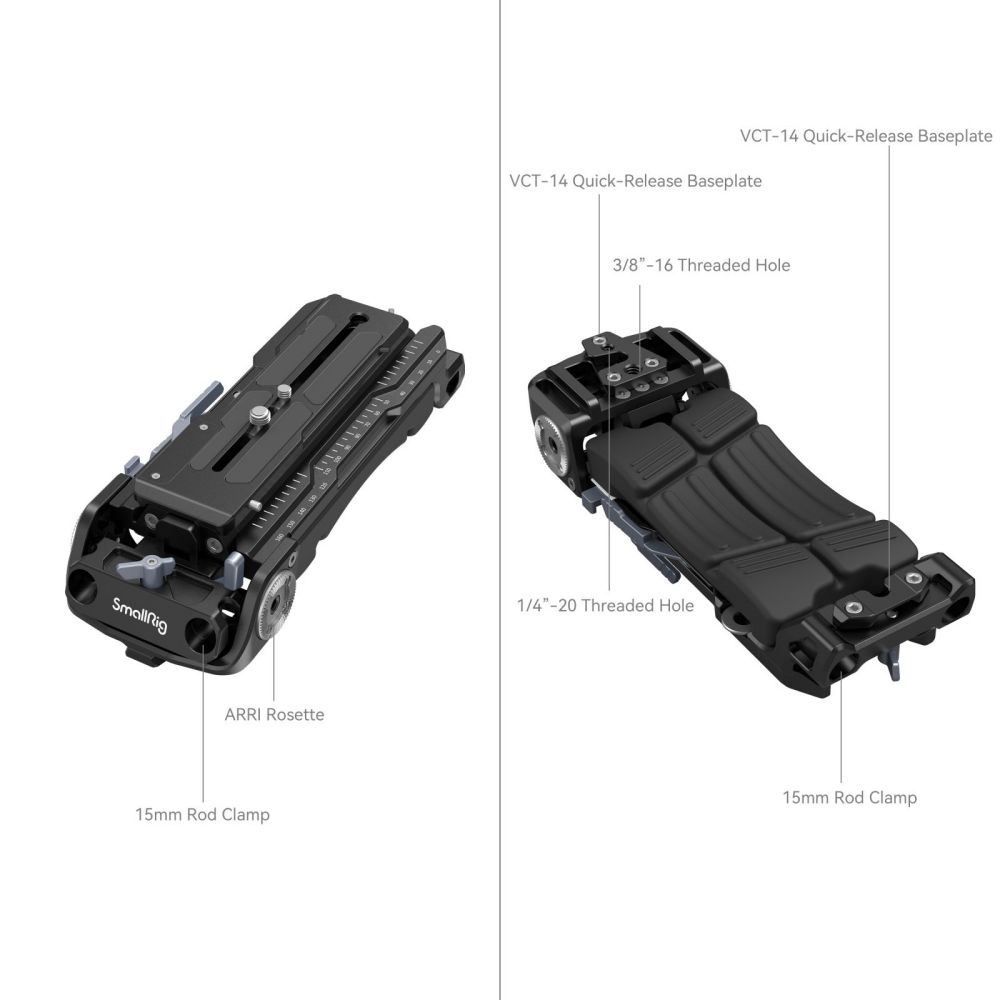

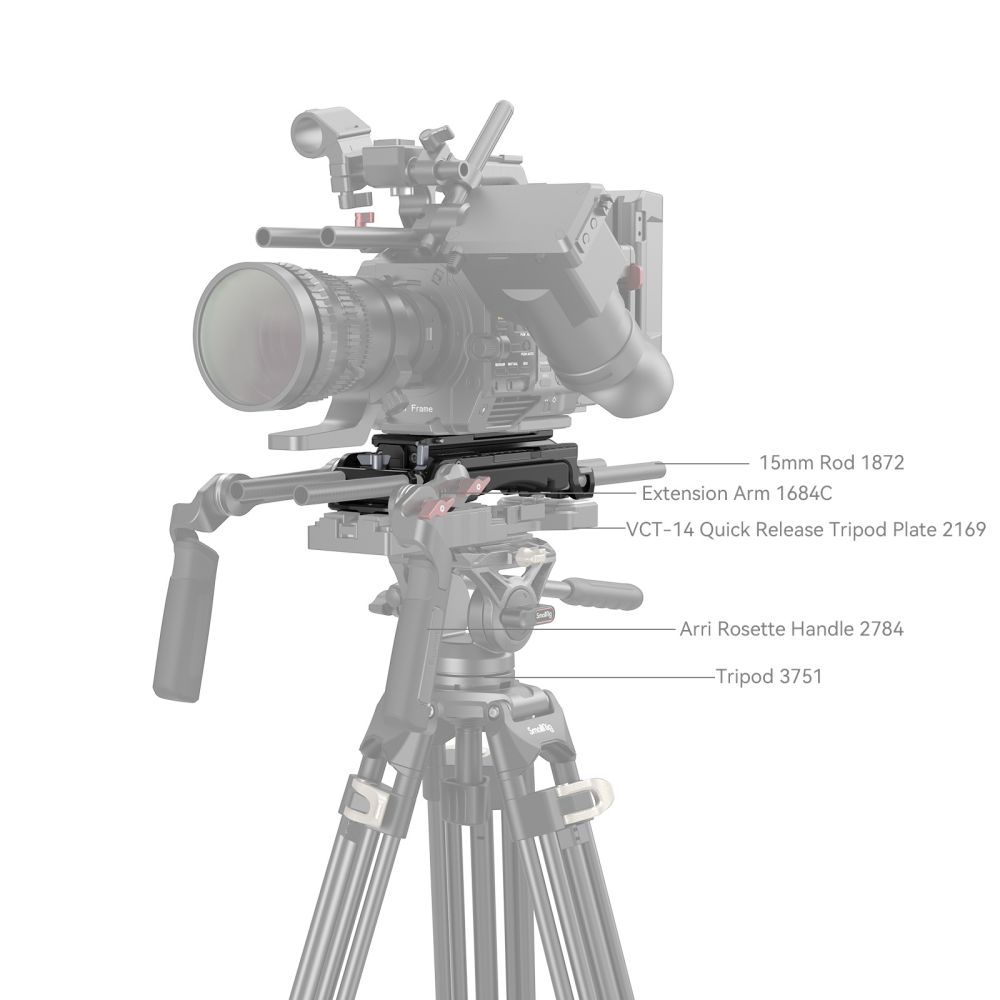

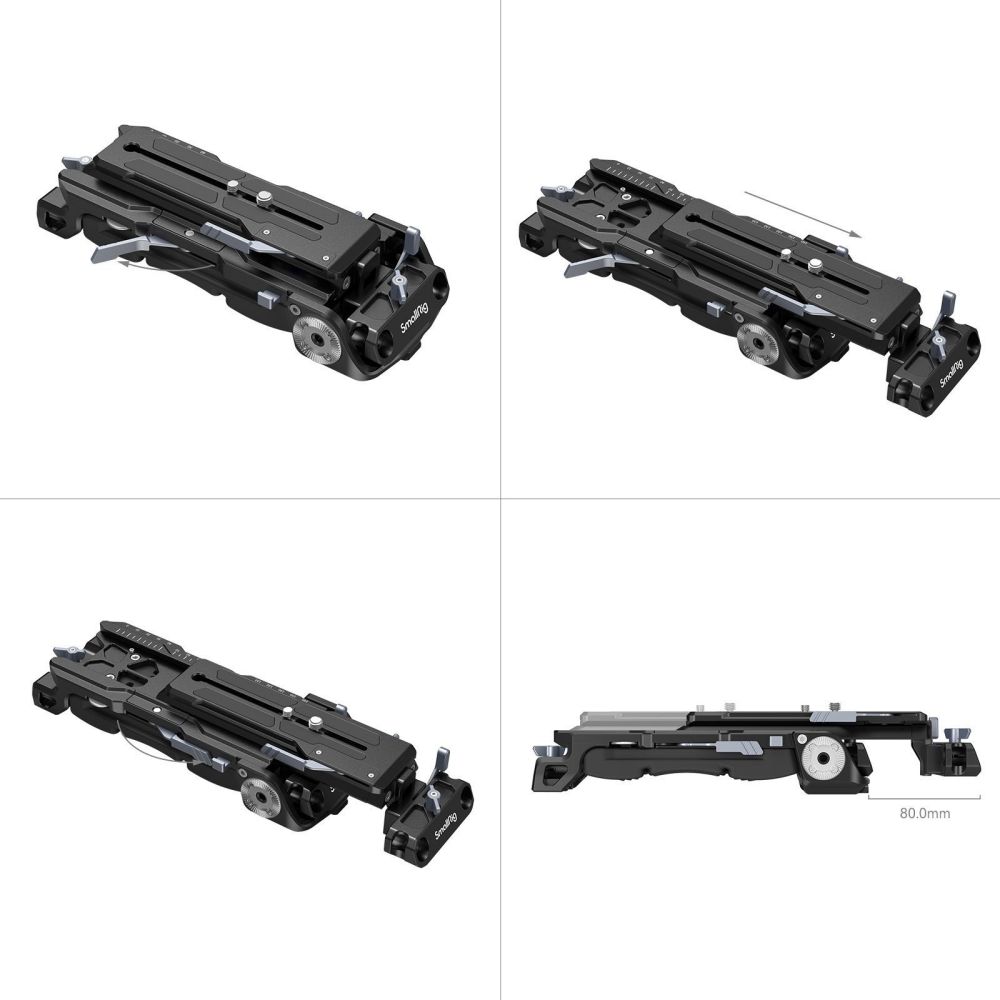

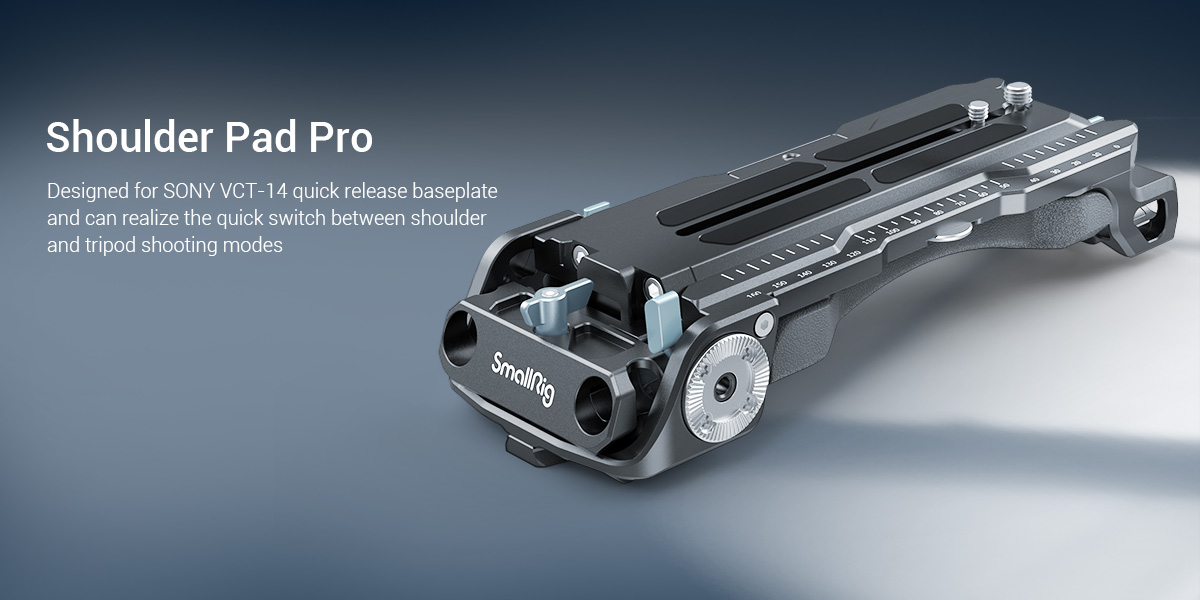

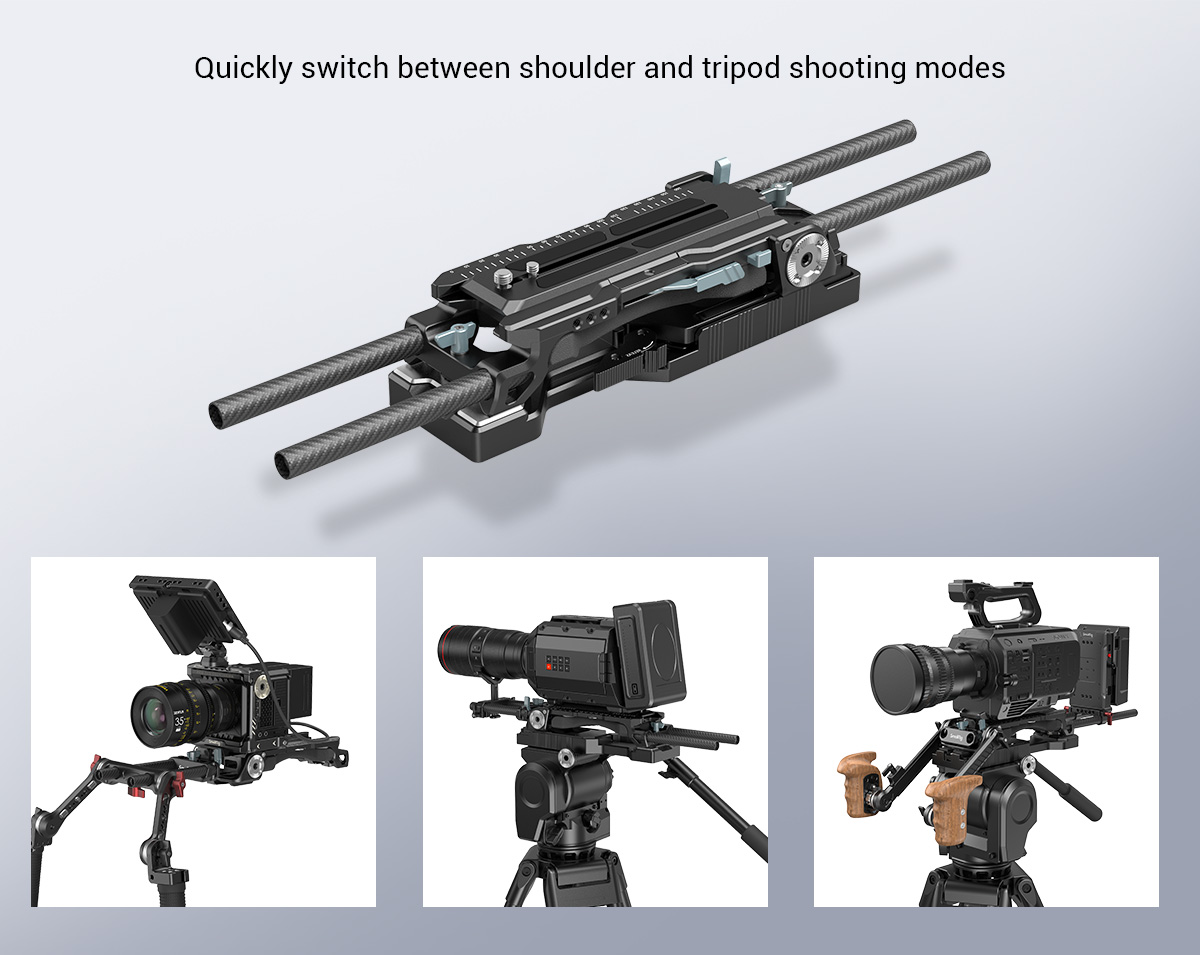

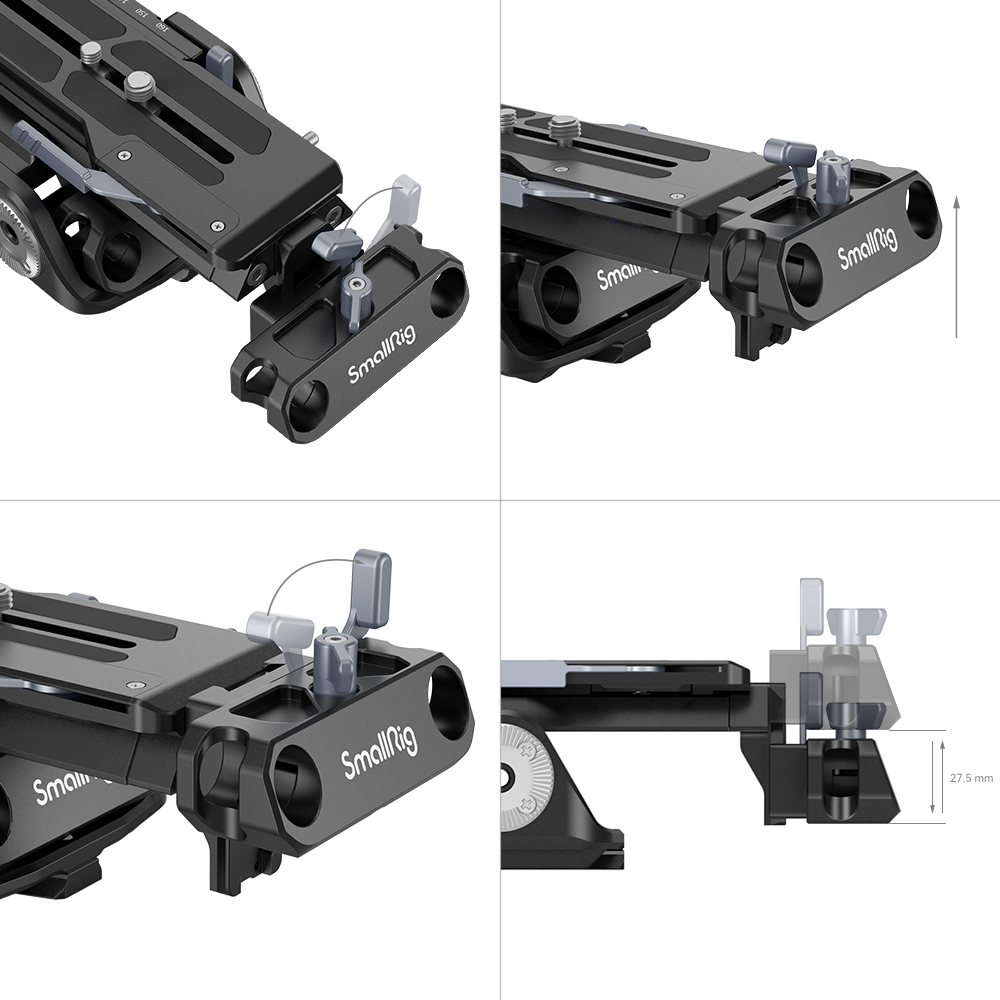

SmallRig Shoulder Pad Pro 2837B is designed for SONY VCT-14 quick release baseplate, which fits the camera through Manfrotto 501 quick release plate. Users can realize a rapid switch between shoulder shooting and tripod shooting through the shoulder pad. Both sides of the shoulder pad are standard M6 ARRI rosette mount, which can be installed with the original control handle of 1810 or FX9 machines. The front and rear ends of the dual rod system have a standard diameter of 15mm and a spacing of 60mm. Moreover, the front-end dual rod system can save 24mm for up-regulating, which can guarantee the spacing between the lens center of FX9, FS5, URSA MINI, CANON C300, and other devices to be 85mm as the standard. In order to facilitate users to adjust the equipment’s center gravity and install the following focus and matte box, 2837 can be adjusted forward about 80mm through the built-in Manfrotto 501 quick release plate, and the front two tubes can be adjusted together with the quick release plate, so there is no need to remove the equipment such as follow focus and matte box. The right side of 2837 is reserved with a 1/4 "-20 threaded hole, which can be used for installing magic arm and other products. The shoulder pad adopts the new silicone shoulder pad, which conforms to the shape of human shoulders and is soft and comfortable. In addition, the 2837 built-in flat wrench can be used on-demand.

Designer: Tracy Joy & Kylin Wu

Note: This product is not compatible with Zacuto VCT-14 plate and VCT-U14 plate.

Compatibility:

FS5/FS5II/FS7/FS7II/FX9

BMPCC4K/6K

URSA MINI

Canon C100/C200/C300/C500

Panasonic EVA-1

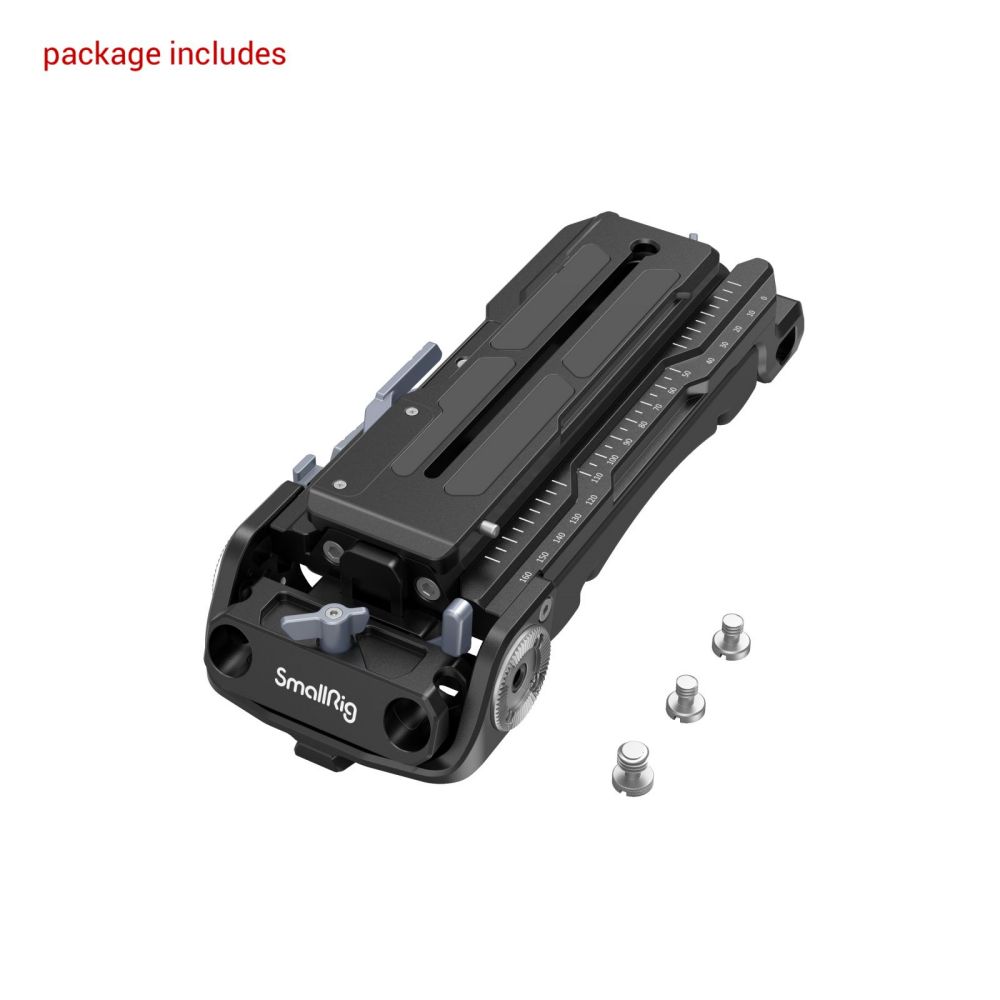

Package Includes:

1 x shoulder pad

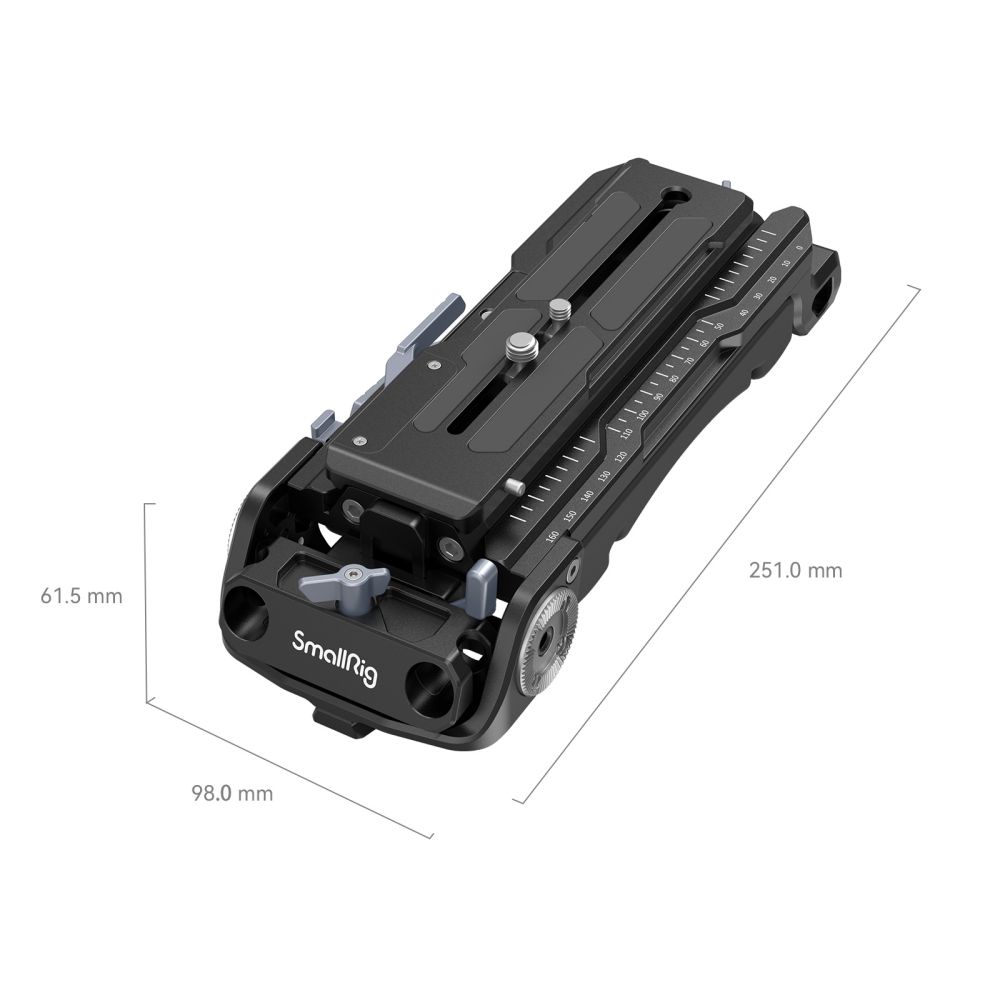

Product Size: 251 x 98 x 51mm

Package Size: 330 x 115 x 90mm

Product Weight: 740g±5g

Packed weight: 885g±5g

Materials: Aluminum alloy, silicone
