iFootage Spider Crab Magic Arm MA5-6 (11")  เมจิกอาร์มขนาด 11 นิ้ว วัสดุอลูมิเนียม แข็งแรงทนทาน รับน้ำหนักได้ 6 กิโล สำหรับติดอุปกรณ์เสริม เช่น จอมอนิเตอร์, ไฟ LED, ไมโครโฟน เข้ากับชุดริกกล้อง จุดยึดแบบปลดล็อกเร็ว ช่วยให้การติดตั้งเป็นไปอย่างง่ายดาย พร้อมอุปกรณ์ติดฮอทชูกล้อง น๊อตขนาด 1/4" และ 3/8" พร้อมสลักกันหมุนในตัว

Key Features

11" Articulating Arm for Attachments

QR Adapter Ends

Shoe Adapter on One End

1/4"-20, 3/8"-16, and ARRI Anti-Twist

Mount Light, Monitor, or Camera

Aluminum and Steel Construction

3 x Points of Articulation

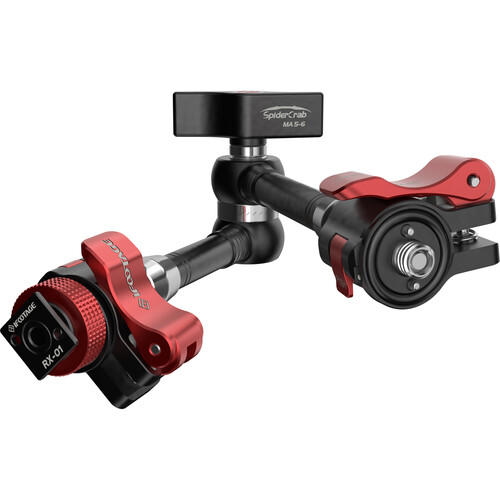

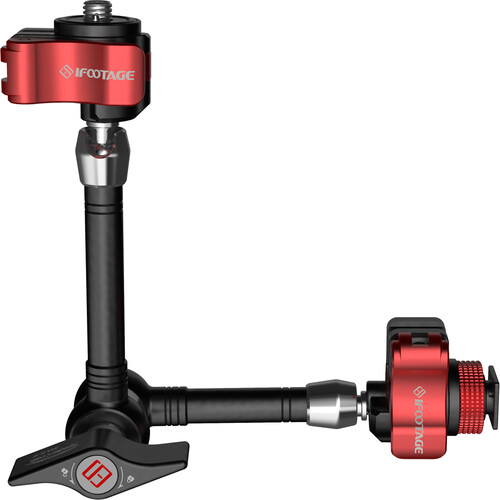

QR mounting modules on each end make this flexible 11" long MA5-6 Spider Crab Magic Arm from iFootage a valuable tool to speed up your workflow while keeping your attached accessories safe. The arm supports up to 13.2 lb and features a QR cold shoe mounting foot on one end and a combination 1/4"-20 and 3/8"-16 QR mounting module with ARRI-Anti-twist pins on the other. The module allows you to select between 1/4"-20, 3/8"-16, and 3/8"-16 with ARRI anti-twist pins.

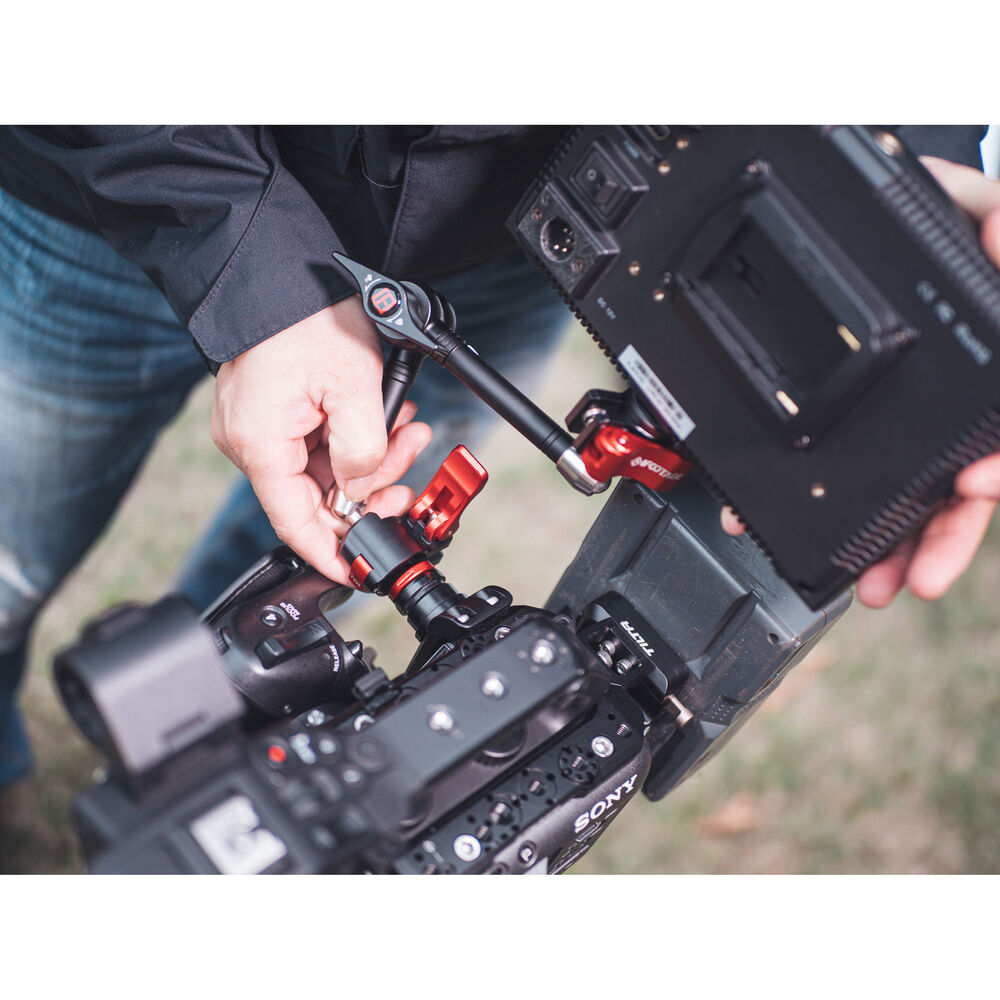

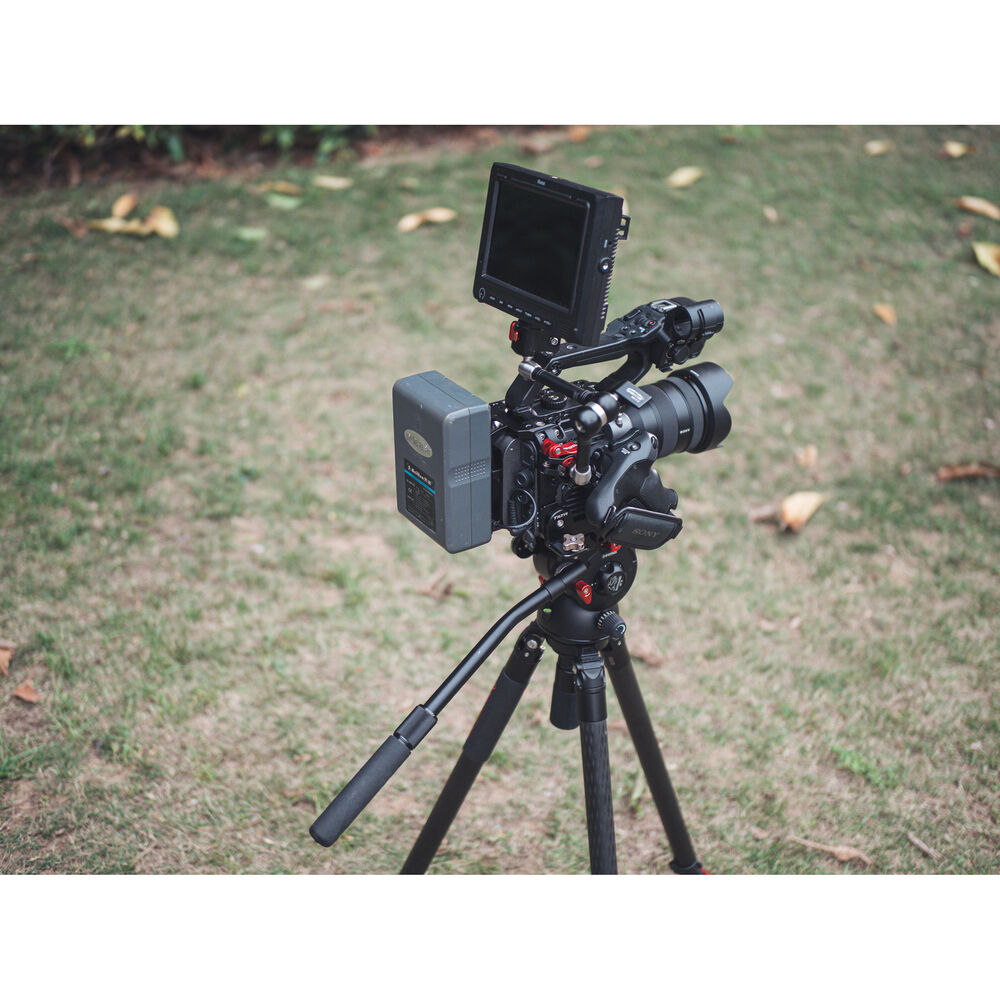

The arm allows you to mount and position accessories such as lights or a monitor onto a cold shoe. The QR system features a dual-lock safety system independent of the arm's central locking knob, and the QR system also allows you to swap out adapter ends for optional replacements for more flexibility. Anti-slip gears in the center hub hold the arm in the position you set when tightening the central locking lever, which also locks the ends in position.



QR Attachment Modules

The QR modules allow you to attach the module to your accessory or camera/cage/support, and then mount the arm on the module and secure it with the dual locking system. This makes it easier to attach the arm to your camera or accessory, as you don't have to contend with the length of the arm or that it is already attached to the camera or accessory. It also enables you to leave just the QR attached to the module when packing your gear away, and you can source additional modules and pre-attach them to your accessory for an even faster workflow.



1/4"-20, 3/8"-16, ARRI Anti-Twist Module



This module features a flip-up twist tab that lets you engage either the 1/4"-20 thread or raise a 3/8"-16 sleeve around the 1/4"-20 screw. Continuing to twist the tab engages the ARRI-compatible anti-twist pins. Reversing the direction of the twist disengages the pins, and then the sleeve.



Specifications

Load Capacity: 13.2 lb / 6 kg

Top Mount: 1/4"-20 Male

3/8"-16 Male

ARRI 3/8"-16 Anti-Twist

Bottom Mount: Shoe Adapter

Points of Articulation: 3

Material of Construction: Aluminum, Steel

Maximum Length: 11" / 27.9 cm

Weight: 15.5 oz / 440 g



Packaging Info

Package Weight: 1.38 lb

Box Dimensions (LxWxH): 10.2 x 4.6 x 2.3"
