Zoom F8 Multi-Track Field Recorder เครื่องบันทึกเสียงภาคสนาม 8 แชนแนล ความละเอียดสูงสุด 24 บิท 192 kHz รองรับไมค์ Zoom Capsule บันทึกลง SD Card สองช่อง ใช้แบตเตอรี่ AA 8 ก้อน หรือ AC Adapter รองรับ SMPTE Timecode I/O จ่ายไฟ Phantom Power 24/48V





PRODUCT HIGHLIGHTS

• 8x XLR/TRS Combo Jacks with +75 dB Gain
• Up to 192 kHz/ 24-Bit PCM Recording
• Record Up to 10 Tracks Simultaneously
• Dual Channel Recordings at Two Levels
• Works with Zoom Microphone Capsules
• 2x SDXC Card Slots
• Built-In Slate Microphone
• 8x AA Batteries, AC, External DC Adaptor
• Supports SMPTE Timecode I/O
• +24V/+48V Phantom Power

Features

• 8-channel/10-track field audio recorder/mixer

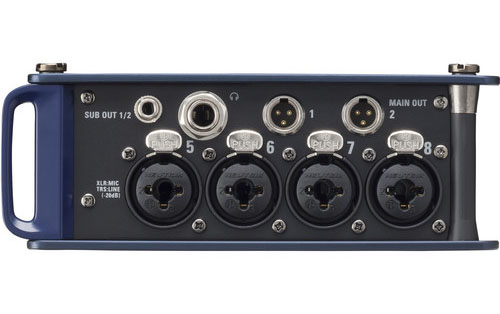

• 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
• Compact and lightweight aluminum chassis, weighing just 2 pounds (without batteries)
• High quality mic preamps with up to 75 dB gain, less than -127 dBu EIN, and +4 dB line inputs
• Support for up to 24-bit/192 kHz recording as well as 96 kHz, 88.2 kHz, 48 kHz, and 44.1 kHz, plus 47.952 kHz/48.048 kHz for HD video compatibility; 16-/24-bit resolution

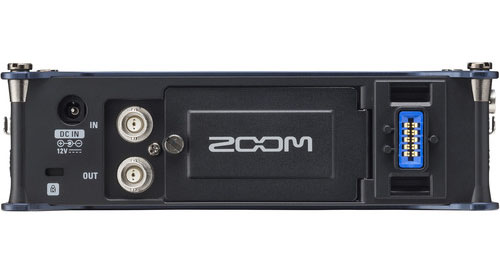

• Accurate Time Code (0.2 ppm) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
• Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
• Automatic switching of power source from DC to batteries at user-defined voltage levels

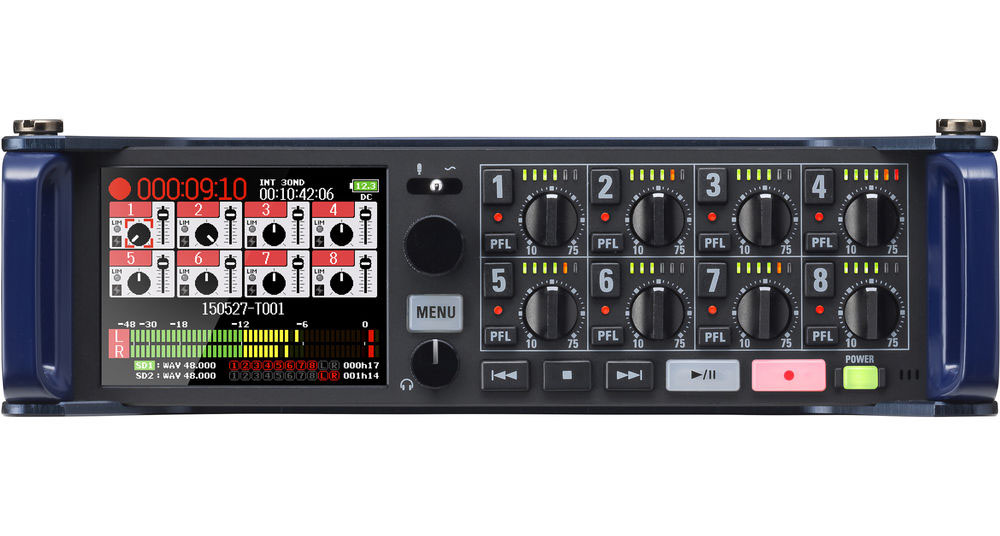

• Dedicated gain control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
• Phantom power (+48V/+24V) on every input
• Advanced onboard limiters for input and output
• High pass filter, phase invert, and Mid-Side decoder
• Input delay of up to 30 msec per channel / output delay of up to 10 frames per output
• Compatible with Zoom microphone capsules; optional extender cable enables remote positioning

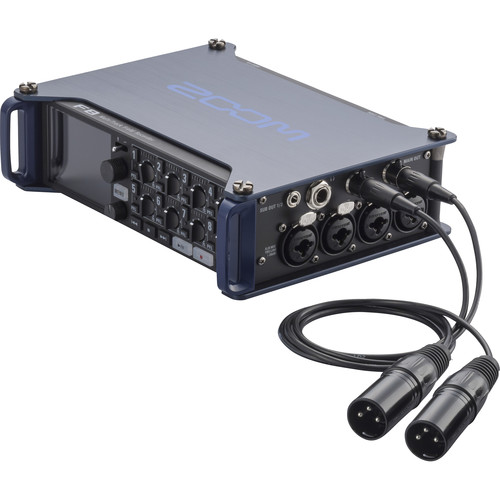

• Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
• Dedicated headphone output (100mW) with front panel volume control

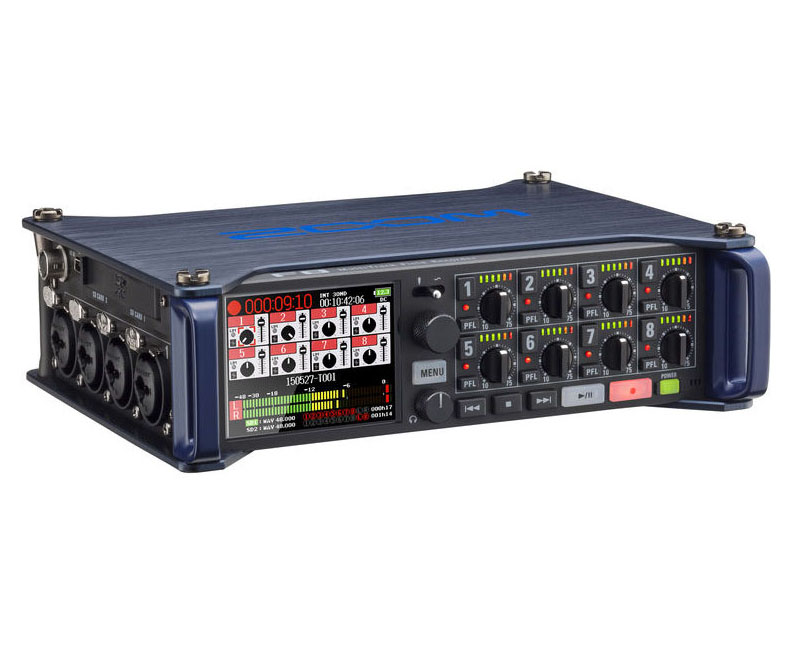

• 2.4" full-color backlit LCD with monochrome mode
• Dedicated PFL display with viewable trim settings

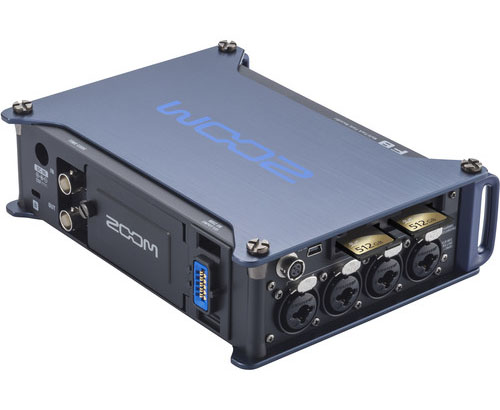

• Dual SD/SDHC/SDXC card slots, up to 512 GB each
• Records in BWF-compliant WAV or MP3 file formats
• Support for extensive metadata (BWF and iXML); input time, date, project, scene number, etc.
• Built-in slate mic/slate tone with front panel switch

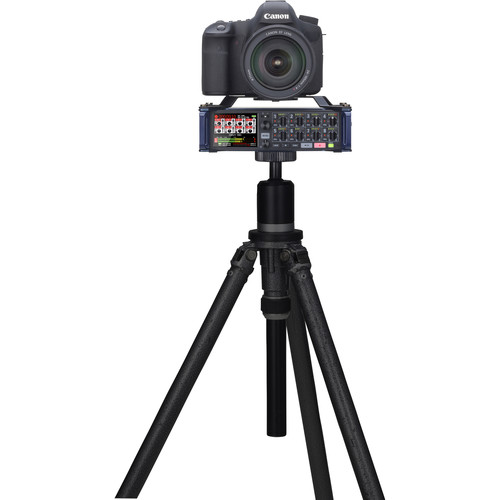

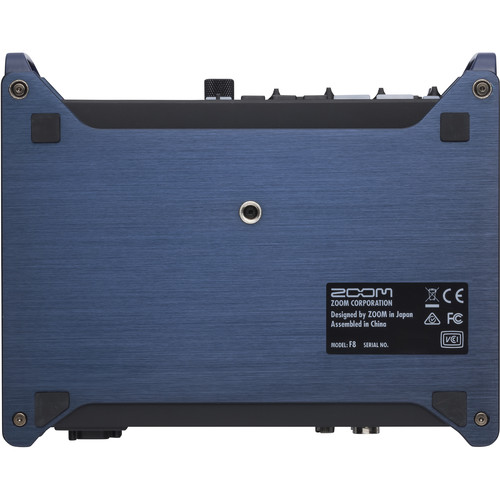

• Built-in tripod mount; camera mount adapter also included
• Use as an 8-in/4-out USB audio interface (@ 96 kHz)
• Free Zoom F8 Control App for iOS allows wireless remote control, file renaming, and metadata entry

Specifications

RECORDING MEDIA

Dual SD card slot supports:

16 MB–2 GB SD cards

4 GB–32 GB SDHC cards

64 GB–512 GB SDXC cards



INPUTS: 1-8

Connectors: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)



INPUTS: XLR (MIC)

Input gain:+10 – +75 dB

Input impedance:3.3 kΩ

Maximum input level: +14 dBu (at 0 dBFS, limiter ON)

Phantom power: +24/+48V 10 mA maximum for each channel

THD (Total Harmonic Distortion): 0.009% max (1kHz, 22Hz-22kHz BW, Input Gain min, -10dBu input)



INPUTS: TRS (LINE)

Input gain: −10 – +55 dB

Input impedance:28 kΩ

Maximum input level: +34 dBu (at 0 dBFS, limiter ON)

THD (Total Harmonic Distortion): 0.010% max (1kHz, 22Hz-22kHz BW, Input Gain min +10dBu input)



INPUTS: ADDITIONAL INFO

Equivalent input noise: −127 dBu or less (A-weighted, +75 dB input gain, 150Ω input)

Frequency characteristics: 10 Hz – 80 kHz +0.5 dB/−1 dB (192 kHz sampling rate)

A/D dynamic range: 120 dB typ (−60 dBFS input, A-weighted)

Crosstalk: −90 dB or less (between adjacent channels, 1 kHz)

MIC IN: ZOOM mic capsule input (use disables Inputs 1/2)

SLATE MIC: Built-in mic for voice memos can freely be assigned to tracks



OUTPUTS: MAIN OUT 1/2

Connectors: TA3 connectors, balanced output (2: hot)

Output impedance: 150 Ω or less

Reference output level:−10 dBV (Normal Output Type), −40 dBV (Mic Output Type), 1 kHz, 600Ω load

Maximum output level: +10 dBV (Normal Output Type), −20 dBV (Mic Output Type), 1 kHz, 600Ω load



OUTPUTS: SUB OUT 1/2

Connector: 3.5mm stereo mini unbalanced output jack

Output impedance: 100 Ω or less

Reference output level:−10 dBV (Normal Output Type), −40 dBV (Mic Output Type), 1 kHz, 10kΩ load

Maximum output level: +10 dBV (Normal Output Type), −20 dBV (Mic Output Type), 1 kHz, 10kΩ load



HEADPHONE

Connector: 1/4" unbalanced stereo output jack

Output impedance: 15 Ω or less

Maximum output level: 100 mW + 100 mW (32Ω load)



D/A

D/A dynamic range: 106 dB typical (−60 dBFS input, A-weighted)



RECORDING FORMATS: WHEN WAV SELECTED

Supported formats: 44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit, mono/stereo/2-10 ch poly, BWF and iXML

Maximum simultaneous recording tracks: 10 (8 inputs + stereo mix), 8 (with 192 kHz sampling rate)



RECORDING FORMATS: WHEN MP3 SELECTED

Supported formats: 128/192/320 kbps, 44.1/48 kHz, ID3v1 tags

Maximum simultaneous recording tracks: 2



RECORDING TIME

Using a 32GB card:

30:51:00 (48 kHz/24-bit stereo WAV)

7:42:00 (192 kHz/24-bit stereo WAV)



TIME CODE

Connector: BNC

Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode)

Frame rates: 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D

Precision: ±0.2 ppm

Supported input levels: 0.2 – 5.0 Vpp

Input impedance: 4.6 kΩ

Output level: 3.3 Vpp

Output impedance: 50 Ω or less



POWER SUPPLIES

Batteries: 8 AA

AC adapter: AD-19 DC12V 2A (center plus)

External DC power supply: HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +), 9–16 V



CONTINUOUS RECORDING TIME: WHEN RECORDING 2 CHANNELS AT 48KHZ/16-BIT WITHOUT HEADPHONES

Alkaline batteries: 8.5 hours or more

NiMH (2450mAh): 10 hours or more

Lithium batteries: 12.5 hours or more



CONTINUOUS RECORDING TIME: WHEN RECORDING 8 CHANNELS AT 48KHZ/24-BIT WITH HEADPHONES

Alkaline batteries: 4.5 hours or more

NiMH (2450mAh): 6 hours or more

Lithium batteries: 8.5 hours or more



CONTINUOUS RECORDING TIME: WHEN RECORDING 8 CHANNELS AT 192KHZ/24-BIT WITH HEADPHONES, PHANTOM POWER AND DISPLAY BACKLIGHTING

Alkaline batteries: 1 hour or more

NiMH (2450mAh): 2 hours or more

Lithium batteries: 3 hours or more



DISPLAY

2.4" full-color LCD: 320x240



USB: MASS STORAGE OPERATION

Class: USB 2.0 High Speed



USB: MULTITRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)

Class: USB 2.0 High Speed

Specifications: 44.1/48/96 kHz, 16/24-bit, 8-in/4-out



USB: STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED)

Class: USB 2.0 Full Speed

Specifications: 44.1/48 kHz, 16-bit, 2-in/2-out

Note: iPad audio interface operation supported (Stereo Mix mode only)



EXTERNAL DIMENSIONS

Main unit:

7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)

178.2 mm (W) × 140.3 mm (D) × 54.3 mm (H)



WEIGHT

Main unit only: 2.1 pounds (960 g)
