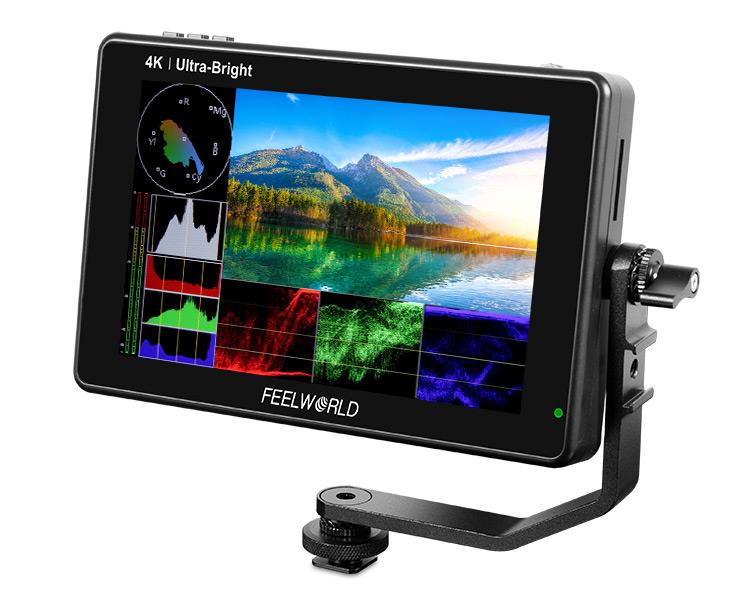

FEELWORLD LUT7S PRO 7" 3D LUT Touch Screen 4K HDMI/SDI Monitor

Price:
ราคา 16,000 บาท

FEELWORLD LUT7S PRO 7 Inch 2200nits 3D LUT Touch Screen DSLR Camera Field Director AC Monitor F970 External Power and Install Kit 4K HDMI Input Output 1920X1200 IPS Panel

  • จอมอนิเตอร์ 7 นิ้ว ทัชสกรีน
  • หน้าจอ IPS มุมมองกว้าง 160 องศา ความละเอียด 1920x1200
  • ความสว่างสูง 2200nit, Contrast 1200:1
  • รองรับ 3D LUT, HDR
  • ฟังก์ชั่น Waveform, Vectorscope, Histogram, Focus Assist
  • ช่องหูฟังแบบสเตอริโอ
  • ช่องจ่ายไฟ DC 8V สำหรับกล้อง DSLR

Features

* Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment.

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* Support Touch Menu

* High Resolution: Full HD 1920x1200, High Contrast: 1200:1

* 2200nit Daylight Viewable, Light Sensor for Auto Dimming

* 160° wide viewing angles IPS Panel

* Provides auxiliary power out; allowing shooters to power their cameras

* Support HDR monitoring

* With Waveform, Vectorscope, Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

* Stereo Earphone output

* DC 8V power out to power your DSLR camera or mirrorless camera



 FEELWORLD LUT7S PRO 7 inches 3D LUT Touch Screen 4K HDMI/SDI Monitor จอมอนิเตอร์ 7 นิ้ว HDMI / SDI 4K ใส่ 3D LUT ได้ ราคา 13300 บาท



Specifications

Display Spec.
 Model  LUT7S PRO
 Screen Size  7" IPS
 Resolution  1920x1200 pixels
 Pixel Pitch  0.07875 (H) x 0.07875 (W) (mm)
 Aspect Ratio  16:10
 Brightness  2200cd/m² (Light Sensor)
 Contrast Ratio  1200:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)

Input
 1 X BNC  3G-SDI
 1 X HDMI  HDMI

Output
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 1 X DC  Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
 Audio  3.5mm Stereo Headphone

SDI Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage  DC7～24V
 Power Consumption  ≤18W
 Working Temperature  -20°C~50°C
 Storage Temperature  -30°C~60°C
 Install Way  1/4"-20 Thread Socket (Left, Right, Bottom)
 Unit Size  190Lx126Hx27D (mm)
 Unit Weight  450g
 Color Box Size  222L*158W*76H(mm)
 Outer Carton Qty  10
 Outer Carton Size  450*234*385 (mm)
 Gross Weight  10.8kgs
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (1%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment
* Nine Grid
* Zoom (100%~300%)
* Aspect Ratio
* Pixel to Pixel
