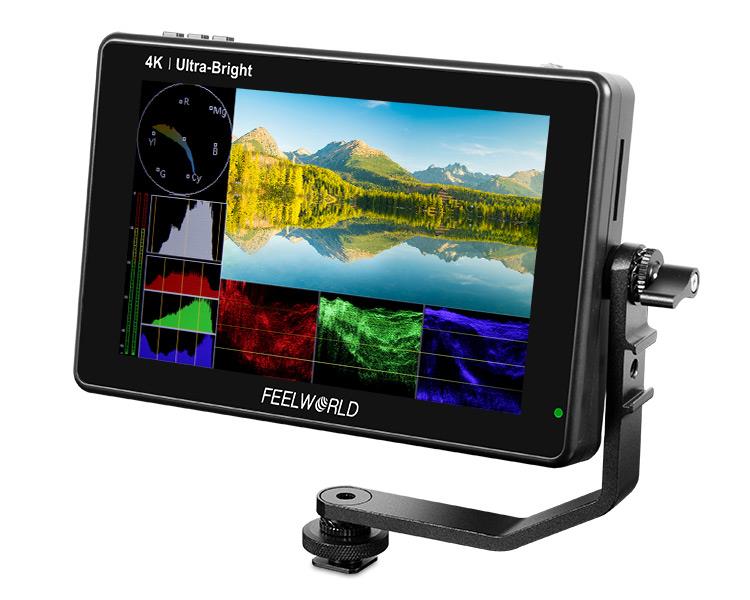

FEELWORLD LUT7 PRO 7 Inch 2200nits 3D LUT Touch Screen DSLR Camera Field Director AC Monitor F970 External Power and Install Kit 4K HDMI Input Output 1920X1200 IPS Panel

• จอมอนิเตอร์ 7 นิ้ว ทัชสกรีน
• หน้าจอ IPS มุมมองกว้าง 160 องศา ความละเอียด 1920x1200
• ความสว่างสูง 2200nit, Contrast 1200:1
• รองรับ 3D LUT, HDR
• ฟังก์ชั่น Waveform, Vectorscope, Histogram, Focus Assist
• ช่องหูฟังแบบสเตอริโอ
• ช่องจ่ายไฟ DC 8V สำหรับกล้อง DSLR



Features

- Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment.

- Support 3D LUT Log to Rec.709, user 3D LUT Upload

- Support Touch Menu

- High Resolution: Full HD 1920x1200, High Contrast: 1200:1

- 2200nit Daylight Viewable, Light Sensor for Auto Dimming

- 160° wide viewing angles IPS Panel

- Provides auxiliary power out; allowing shooters to power their cameras

- Support HDR monitoring

- With Waveform, Vectorscope, Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

- Stereo Earphone output

- DC 8V power out to power your DSLR camera or mirrorless camera



Specifications

Display Spec.

 Model: LUT7 PRO

 Screen Size: 7" IPS

 Resolution: 1920x1200 pixels

 Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)

 Aspect Ratio: 16:10

 Brightness: 2200cd/m² (Light Sensor)

 Contrast Ratio: 1200:1

 Backlight: LED

 Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)



Input

 1 X HDMI HDMI



Output

 1 X HDMI HDMI

 1 X DC Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.



Audio

 Audio: 3.5mm Stereo Headphone



HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)



General

 Input Voltage: DC 7～24V

 Power Consumption: ≤16W

 Working Temperature: -20°C~50°C

 Storage Temperature: -30°C~60°C

 Install Way 1/4"-20 Thread Socket (Left, Right, Bottom)

 Unit Size: 190Lx126Hx27D (mm)

 Unit Weight: 450g

Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.



Advanced Features

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* Support Touch Menu

* Parade (RGB, YUV, Y)

* All Waves

* Vector

* RGB Histogram

* Brightness Histogram

* Embedded Audio

* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)

* False Colors

* Zebra Exposure (1%~100% adjustable)

* Check Field (Red, Green, Blue, Gray)

* Scan Mode (Under Scan, Over Scan)

* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)

* Image Flip (H, V, H/V)

* Image Freeze

* Center Marker

* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)

* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

* Marker Color (red, green, blue, white, black, yellow)

* Color Temperature Adjustment

* Nine Grid

* Zoom (100%~300%)

* Aspect Ratio

* Pixel to Pixel
