Atomos Shinobi 5.2" 4K HDMI Monitor จอมอนิเตอร์ขนาด 5.2 นิ้ว รองรับสัญญาณ HDMI 4K ความละเอียดหน้าจอ 1920x1080 แสดงผล 10 บิท รองรับ AtomHDR, Log, HDR พร้อมช่องเสียบหูฟัง หน้าจอ IPS สว่างเป็นพิเศษสำหรับใช้งานกลางแจ้ง



Features

• 1920 x 1080 Touchscreen Display
• 10-Bit Exterior Viewable Monitor
• 4K HDMI Input
• 1000 cd/m² Brightness
• AtomHDR Mode with 10-Stop Dynamic Range
• Supports a Variety of Log Formats
• Single Sony L-Series Battery Slot

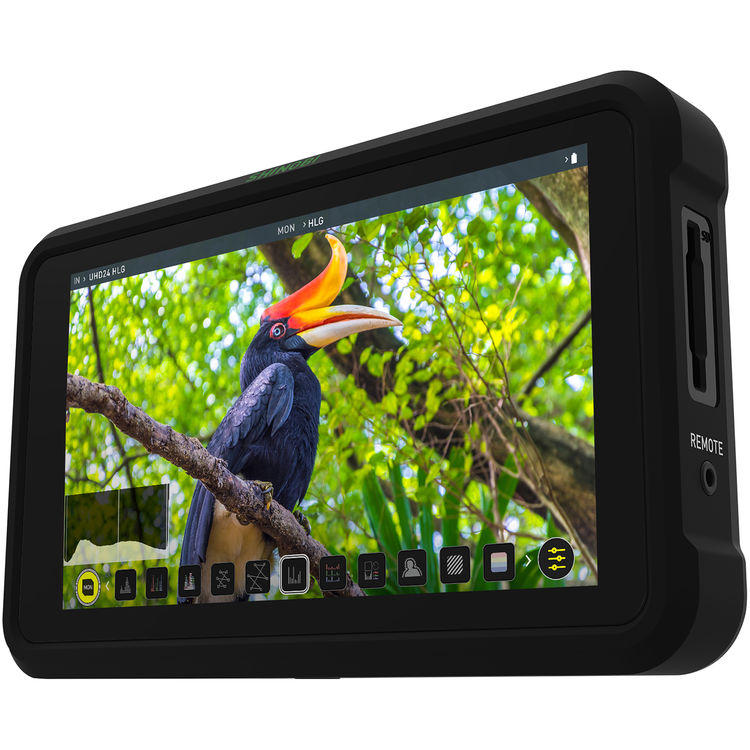

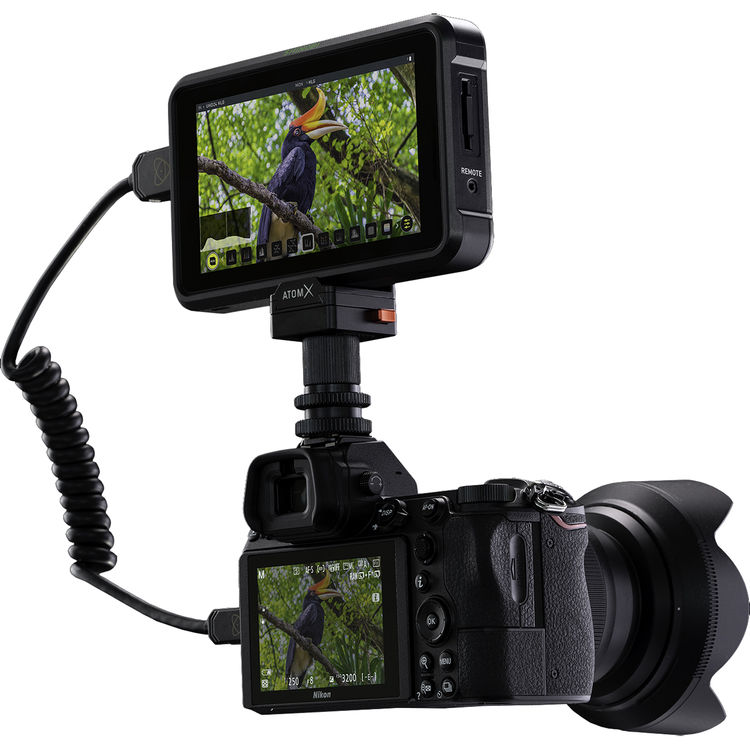

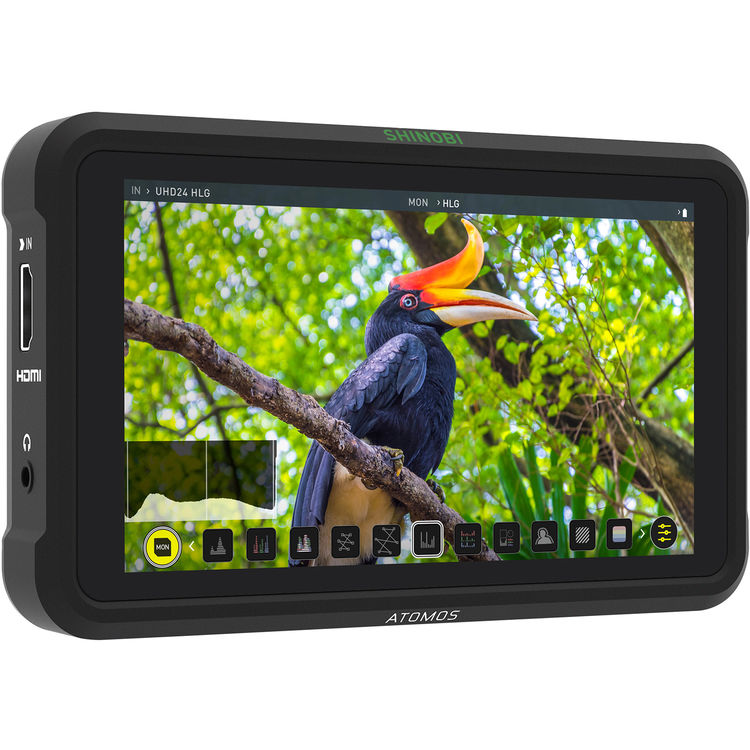

The Shinobi 5.2" 4K HDMI Monitor is a 5.2" on-camera monitor that monitors DCI 4K, UHD 4K, and HD video input. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.

Built to withstand the rigors of production, the Shinobi features a lightweight plastic chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A 12V power supply is included with the unit.



AtomHDR

With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.



Supported Log Formats

ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600

Canon CLog / CLog 2 / CLog 3

Fuji F-Log

JVC JLog

Nikon N-Log

Sony SLog / SLog2 / SLog3

Panasonic Vlog

RED Log3G10 / RED LogFilm

PQ10k

HLG



HDR Monitoring

Sony SGamut / SGamut3 / SGamut3.cine

Canon Cinema / DCI P3 / DCI P3+

Panasonic V Gamut

Arri Alexa Wide Gamut

Rec709 / BT.2020

JVC

RED WideGamut / RED DragonColor / DragonColor2

RED Color2 / RED Color3 / RED Color4



4K DCI/UHD and HD Capabilities

Monitor 4K footage in DCI or UHD formats up to 29.97 fps and 1080p up to 59.94 fps.



Audio Monitoring

Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.



5.2" Daylight Viewable Screen

The Shinobi features a 5.2" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.



HDR Signal Management

Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.



Anamorphic De-Squeeze

The Shinobi supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.



Specifications

Display

Panel TypeIPS-Type LCD

Display Size5.2" / 13.2 cm

Screen Resolution1920 x 1080

Aspect Ratio16:9

TouchscreenYes

Maximum Brightness1000 cd/m2

Bit Depth / Color Support10-Bit (1.07 Billion Colors)

Pixels Per Inch (ppi)427 ppi

Color Gamut100% Rec. 709

Real-Time LUT MonitoringSDR

Image ControlsAnamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform, Zebra, Vectorscope

I/O

Video1 x HDMI Type A (HDMI 2.0) Input

Embedded AudioHDMI: 2-Channel

Audio1 x 3.5 mm Headphone Output

Built-In SpeakerNone

Power1 x Barrel Input

Other I/ONone

Card Slot1 x SD

Format Support

Video FormatHDMI (8/10-Bit 4:2:2)

DCI 4K: 29.97/25/24/23.98

UHD 4K: 29.97/25/24/23.98

1080p: 59.94/50/29.97/25/24/23.98

720p: 59.94/50

Power

DC Input Power6.2 to 16.8 VDC

Battery Type1 x L-Series

Power Consumption4 W (Typical)

7 W (Maximum)

Mounting

Mounting2 x 1/4"-20 Female

Environmental

Operating Temperature104°F / 40°C (Recommended)

General

Material of ConstructionPolycarbonate

Dimensions (W x H x D)5.94 x 3.6 x 1.24" / 151 x 91.5 x 31.5 mm

Weight6.91 oz / 196 g
