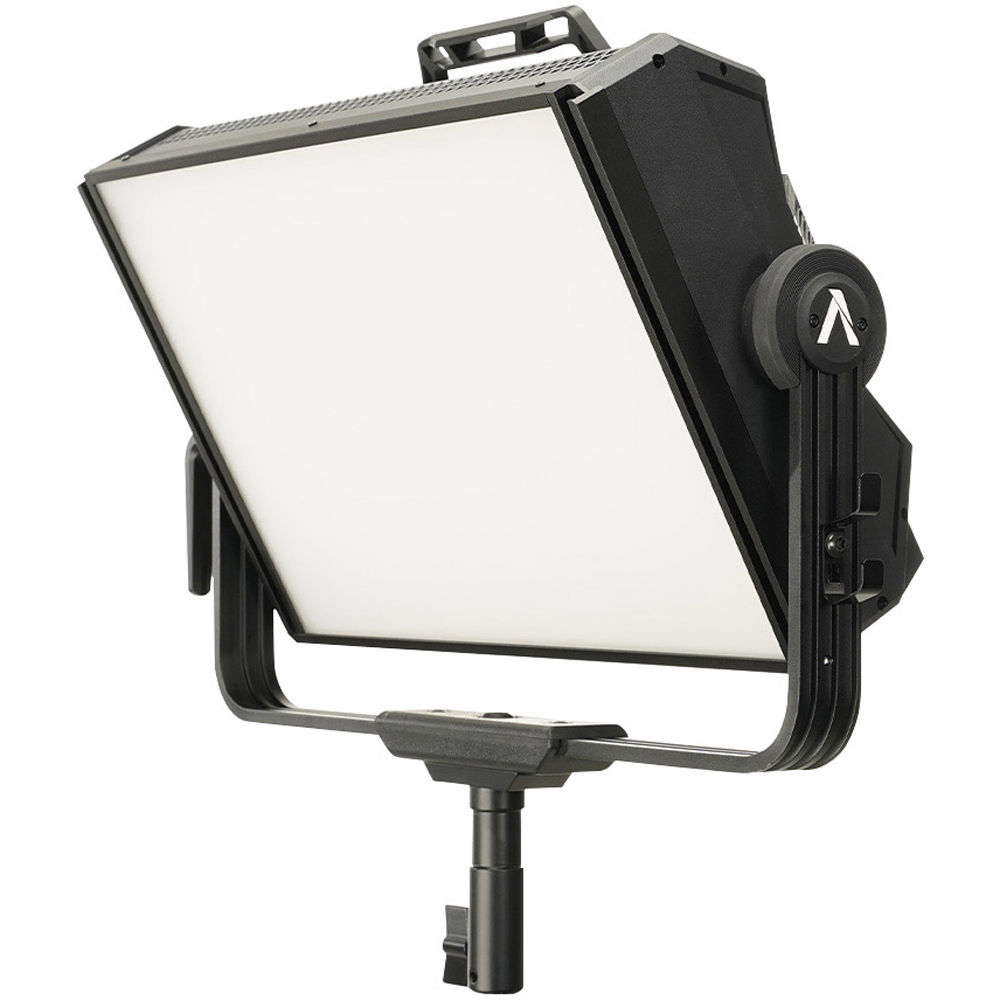

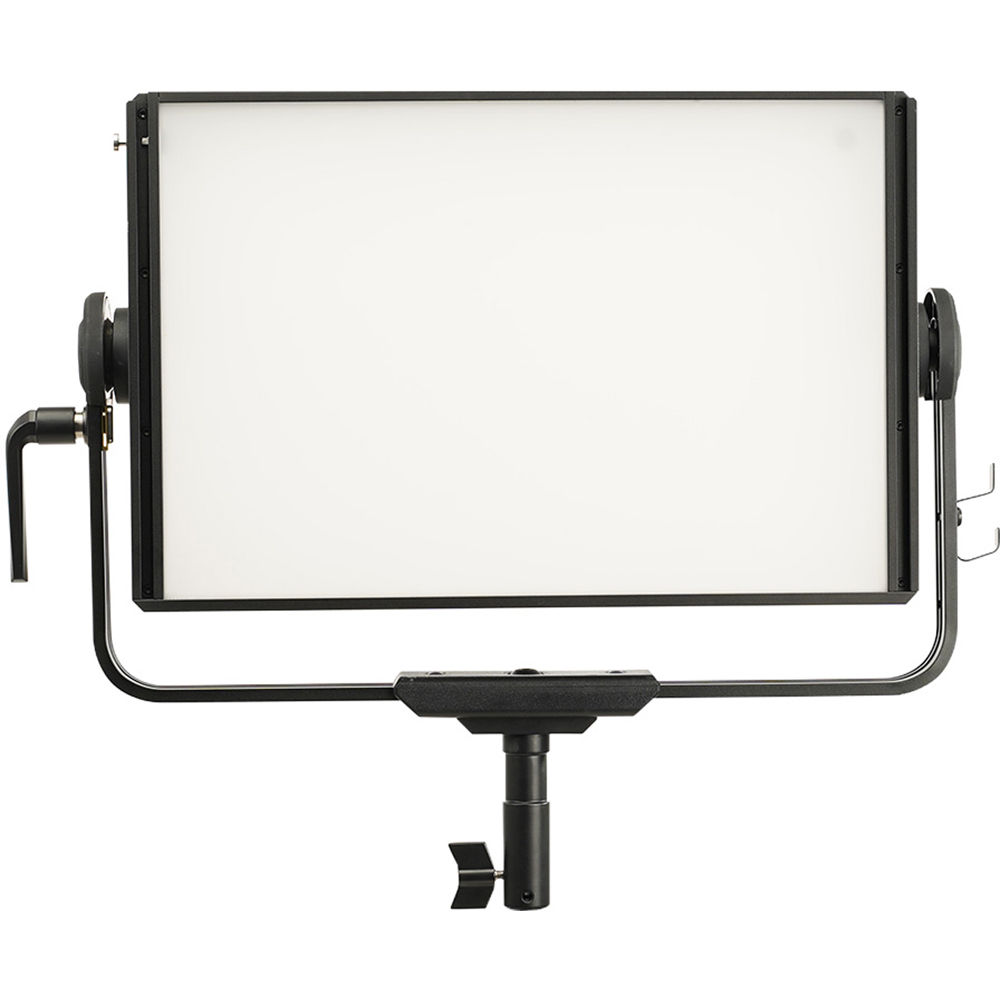

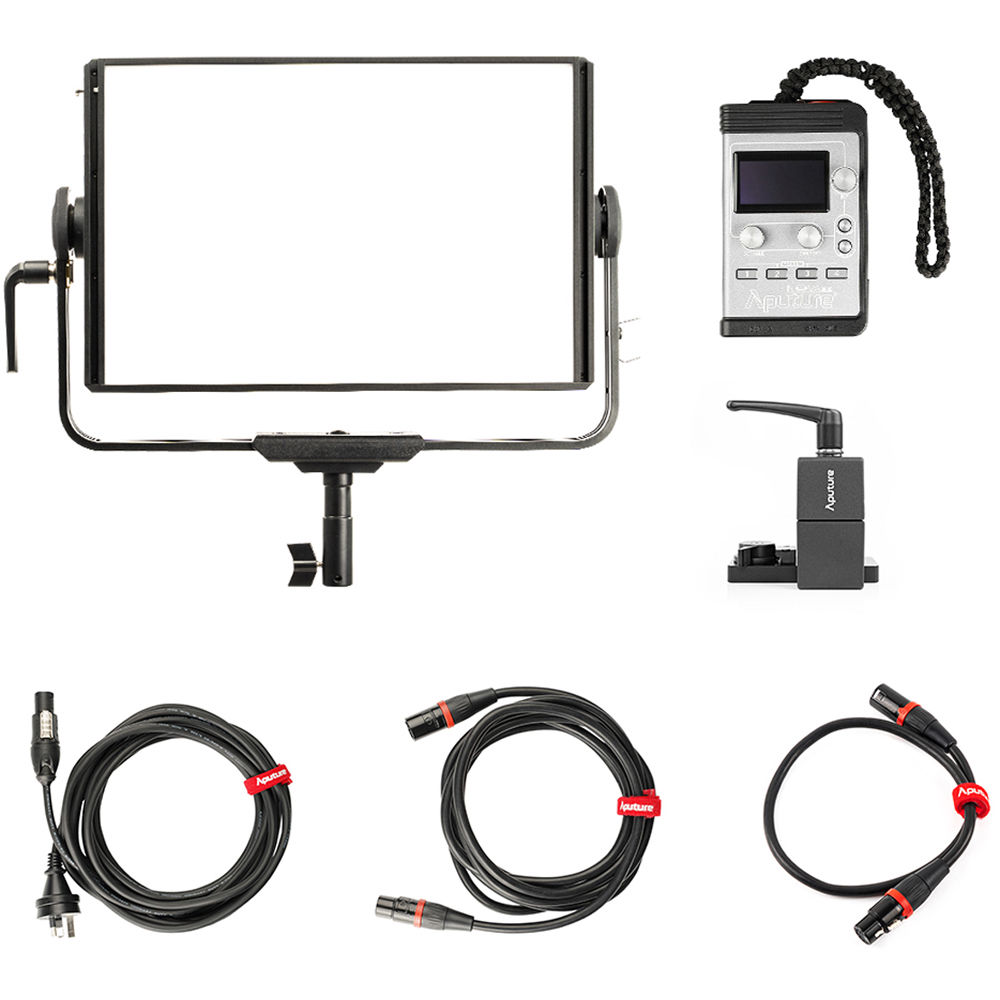

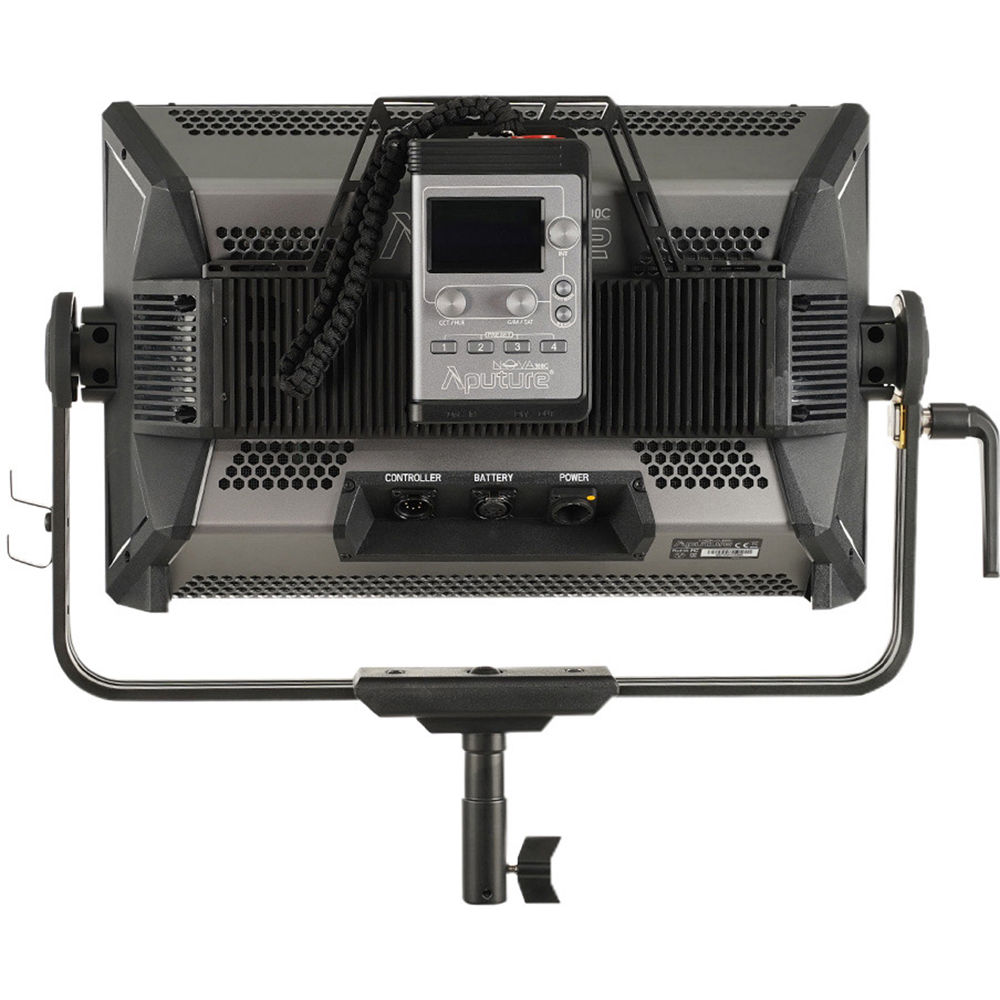

Aputure Nova P300c RGBWW LED Panel
Aputure Nova P300c RGBWW LED Panel ไฟ LED พาเนล ปรับอุณหภูมิสีได้ 2000-10,000K ให้สีเที่ยงตรงด้วยค่า CRI/TLCI:95 ปรับสี RGB ได้ รองรับ DMX, Bluetooth และคอนโทรลผ่านแอพ Sidus Link องศากระจายแสงกว้าง 120 องศา มีเอฟเฟกต์ในตัว 15 แบบ
Features
- Variable Color Temperature: 2000-10,000K
- CRI/TLCI:95, Full RGB Adjustments
- Hue, Saturation, Light Intensity Control
- DMX, Bluetooth, Sidus Link Control
- Plus/Minus Green Control, 120° Beam
- AC or 24 to 48V Battery, Dimming: 0-100%
- 15 Special Effects, 100 to 240 VAC
- Measures 15.8 x 10.6 x 6"
- 300 Gel Presets, Combo 5/8"/1-1/8" Mount
Flexibility and control are key to the design of the Aputure Nova P300c RGBWW LED Panel The sturdily-constructed, 15.8 x 10.6 x 6" fixture has two lighting modes. The CCT mode offers an expansive color temperature of 2000 to 10,000K with an impressive CRI/TLCI rating of 95 and plus/minus green control. The HSI mode allows you to adjust the hue, saturation, and intensity giving you access to literally millions of custom colors, while there's also a 300 industry-standard gel library for even greater chromatic control, The P300c is also dimmable from 0 to 100% without flicker or color shift. Besides user-programmable presets, the P300c has 15 special effects including Cop Car, Lightning, Paparazzi, Candle, and Fire.
All of these adjustments can be made locally on the unit or remotely via a console, thanks to the P300c's built-in DMX, or with wireless control of all aspects of the light from a smartphone using the Sidus Link app. The P300c is ready for worldwide use, thanks to its 100 to 240 VAC power supply but it can also run on 24 to 48V batteries when AC power is unavailable.
3 Lighting Modes
CCT (Correlated Color Temperature) mode allows for bi-color (daylight to tungsten) operation with the addition of plus and minus green adjustment
HSI color mode allows for full color control over hue, saturation, and intensity
Gel mode allows for a variety of 300 gels to be selected from the menu
15 Special Effects
Lighting effects include Cop Car, Lightning, Paparazzi, Candle, and Fire
Low Power Draw, High Output
Fixture draws only 360W
Outputs up to 9000 lux at 3.28'

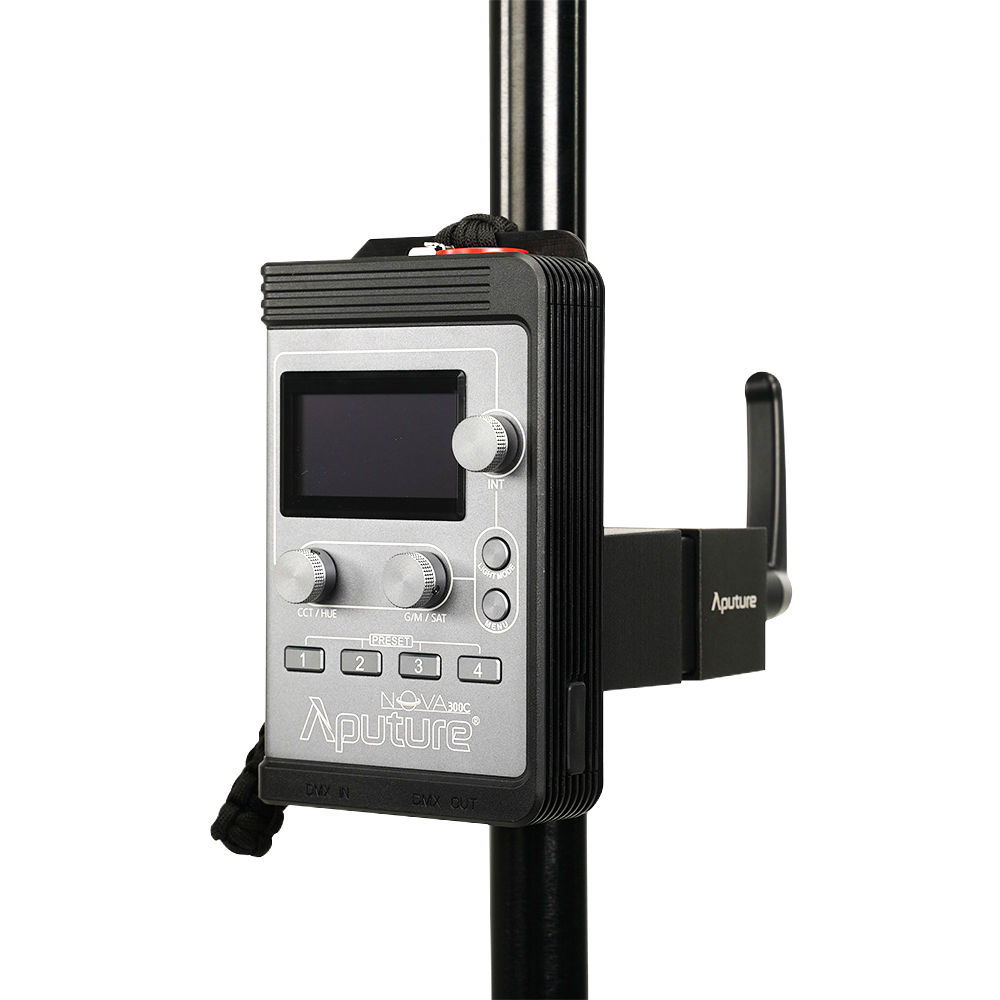

Control
Remote control via DMX or Sidus Link cloud-based Bluetooth
Power Options
Integrated multi-voltage power supply operates worldwide on current from 100-240 VAC, or operate with DC battery power using separately available 24 to 48V batteries
Specifications
CCT | 2,000K - 10,000K |
Color Modes | HSI, RGI, XY, Gels |
CRI | 95+ (2,500K - 10,000K) |
TLCI | 95+ (2,500K - 10,000K) |
CQS | 92-97+ (2,5000K, - 10,00K) |
SSI (D55) | 74 |
SSI (Tungesten) | 85 |
Native Beam Angle | 120° |
Operating Temperature | -10~45°C |
Power Supply | AC 100~240V 50/60Hz |
Operating Current | 4 Amps |
Power Input | 360W Maximum |
Power Output | 360W Maximum |
Control Methods | On-board, SidusLink (SidusMesh™), 5-Pin DMX512 |
Battery Operating Voltage Range | DC 24-48V (4-Pin XLR) |
Cooling Method | Active Cooling |
Accessory Mount | Nova P300c Drop-in Accessory Slot |
Mounting | 16mm/28mm | 5/8in (Baby Pin)/1.125in (Junior Pin) |
Weight (Light) | 10.35kg / 22.82lbs |
Weight (Control Box) | 0.45kg / 0.94lbs |
Dimensions (Panel Surface) | 39.9*27.1cm / 15.71*10.67in |
Dimensions (Light) | 56.19*45.7*16.6cm / 22.1*18.0*6.53in |
Dimensions (Control Box) | 9.66*15.75*4.63cm / 3.8*6.2*1.82in |
PHOTOMETRICS
CCT | Distance | 1m | 3m | 5m |
2700K | Lux | 7,450 | 890 | 350 |
2700K | Footcandles | 692 | 83 | 33 |
3200K | Lux | 8,200 | 960 | 370 |
3200K | Footcandles | 762 | 89 | 34 |
4300K | Lux | 8,600 | 1,000 | 395 |
4300K | Footcandles | 799 | 93 | 37 |
5500K | Lux | 9,000 | 1,100 | 430 |
5500K | Footcandles | 836 | 102 | 40 |
6500K | Lux | 8,550 | 1,020 | 400 |
6500K | Footcandles | 795 | 95 | 37 |
