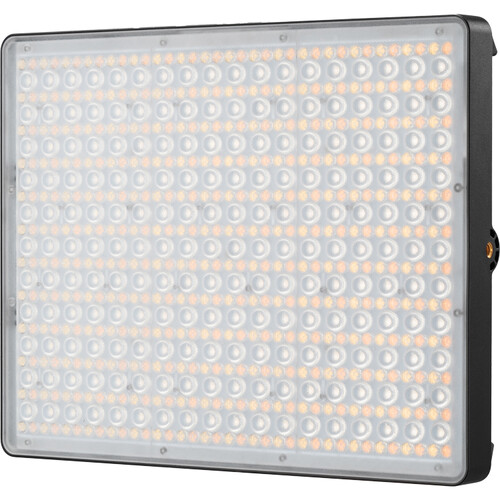

Aputure Amaran P60c RGBWW LED Panel
Aputure Amaran P60c LED Panel ไฟ LED แบบพาเนล ปรับอุณหภูมสีได้ 2500-7500K ปรับสี RGB ได้อิสระ ค่าสีเที่ยงตรงที่ CRI 95+ ควบคุมผ่านแอพ Sidus Link มีเอฟเฟกต์ในตัว ใช้ไฟจาก AC Adapter หรือแบต NP-F มาพร้อมซอฟท์บ็อกซ์, กริด และกระเป๋าผ้าอย่างดี
Features

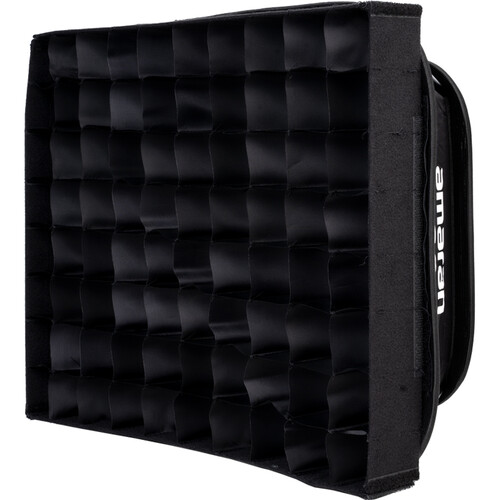

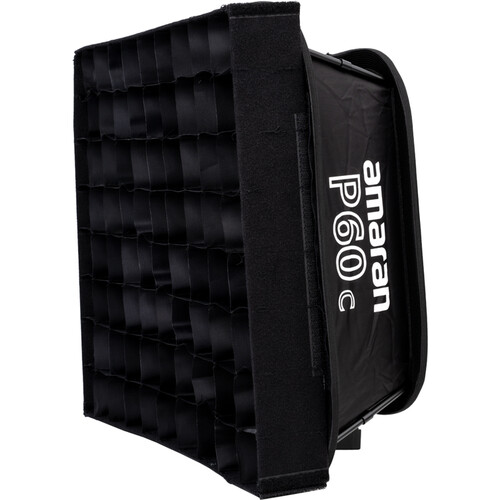

- Softbox with Grid, NP-F Battery Plates
- Variable Color Temperature: 2500-7500K
- CRI: 95+, Full RGB Adjustments
- Hue, Saturation, Light Intensity Control
- Sidus Link Control, Special FX
- Plus/Minus Green Control, 45° Beam
- AC or Battery Power, Dimming: 0-100%

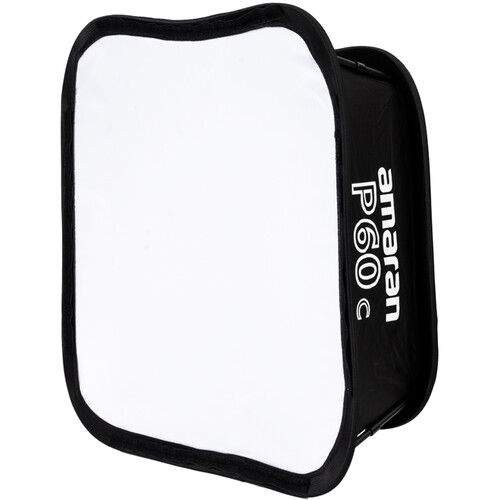

Flexibility and control are key to the design of the Amaran P60c LED Panel. The sturdily-constructed fixture has two lighting modes. The CCT mode offers an expansive color temperature of 2500 to 7500K with an impressive CRI rating of 95 and plus/minus green control. The HSI mode allows you to adjust the hue, saturation, and intensity giving you access to literally millions of custom colors. There's also an industry-standard 46-gel library for even greater chromatic control. The P60c is dimmable from 0 to 100% without flicker or color shift. Besides user-programmable presets, the P60c has 10 special effects including Lightning, Paparazzi, Strobe, Cop Car, Fireworks, Pulsing, Faulty Bulb, Fire, TV, and Party Lights. A softbox is included to soften the bright LEDs as is a grid to enable selective lighting.
All of these adjustments can be made locally on the unit or wirelessly from up to 262' away with your smartphone and the Sidus Link app. The P60c is ready for worldwide use thanks to its 100 to 240 VAC power supply but it can also run on NP-F batteries when AC power is unavailable.
Specifications
CCT | 2,500K~7,500K |
G/M Adjustable | ±1.00G |
CRI | ≥95 |
TLCI | ≥96 |
CQS | ≥96 |
SSI (Tungsten) | ≥83 |
SSI (D56) | ≥74 |
TM-30 RF (Average) | 94 |
TM-30 RG (Average) | 103 |
Beam Angle ( No Accessory) | 45° |
Max Power Output | 60W |
Max Power Consumption | ≤78W |
Operating Current | 4.5A |
Voltage (AC Power Supply) | 15V DC |
Voltage (D-Tap Battery) | 12-16.8V DC |
Voltage (NP-F Battery) | 6.5V-8.4V DC |
Battery Charging (Type) | Sony NP-F Style |
DC Input | 2-Pin DC Self-locking Waterproof |
AC Power Cable | Self-locking IEC C13 AC Power Cable (1.5m) |
Operating Temperature | -20°C ~ 45°C / -4°F ~ 113°F |
Control Methods | On-board, Sidus Link App |
Connectivity | Bluetooth 5.0 (Sidus Mesh) |
Bluetooth Operating Range | ≥80m / 262.5ft |
Firmware Upgradeable | Sidus Link OTA |
Display Type | OLED |
Cooling Method | Active Cooling |

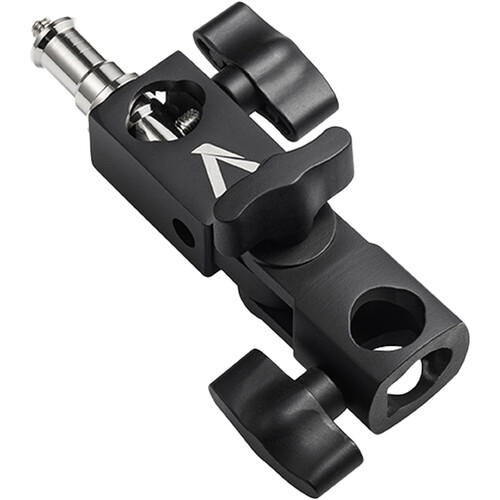

Mounting | 1/4-20in * 3, Tilting Support Column |
Estimated LED Lifetime (L70) | 50,000 Hours |
Estimated Color Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
DIMENSIONS
Fixture | 27.1*21.3*4.34cm / 10.67*8.39*1.7in |
Aperture | 26.90 * 21.00cm / 10.5*8.2in |
Soft Box (Collapsed) | 20*20*2.5cm / 7.8*7.8*.98in |
Soft Box (Built) | 41*34*10cm / 16.1*13.3*3.9in |

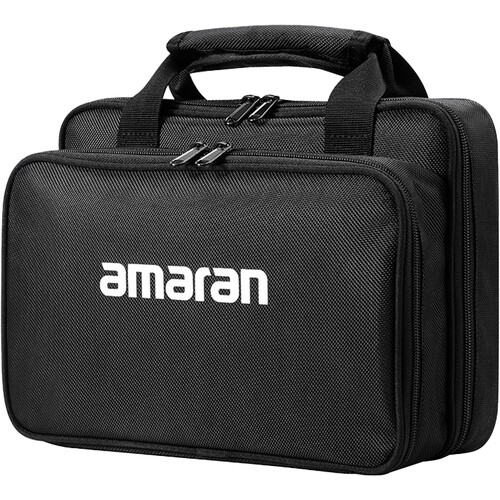

Carrying Case | 27.4*21.8*9.5cm / 10.79*8.58*3.74in |
WEIGHT
Fixture | 1.880kg / 4.145lbs |
Soft Box | 0.17kg / .37lbs |
Power Supply | 0.50kg / 1.1lbs |
Mounting Bracket | 0.24kg / .53lbs |
PHOTOMETRICS
CCT | Distance | No Softbox | With Softbox |
---|---|---|---|
.5M | 17,400 lux / 1,616 fc | 3,750 lux / 349 fc | |
2500K | 1M | 5,000 lux / 465 fc | 1,017 lux / 95 fc |
2M | 1,300 lux / 121 fc | 280 lux / 26 fc | |
3M | 594 lux / 55 fc | 130 lux / 12 fc | |
.5M | 18,500 lux / 1,719 fc | 4,010 lux / 373 fc | |
3200K | 1M | 5,200 lux / 483 fc | 1,116 lux / 104 fc |
2M | 1,400 lux / 130 fc | 302 lux / 28 fc | |
3M | 632 lux / 59 fc | 141 lux / 13 fc | |
.5M | 19,500 lux / 1,812 fc | 4,240 lux / 394 fc | |
4300K | 1M | 5,600 lux / 520 fc | 1,182 lux / 110 fc |
2M | 1,460 lux / 136 fc | 318 lux / 30 fc | |
3M | 659lux / 61fc | 149 lux / 14 fc | |
.5M | 20,000 lux / 1,858 fc | 4,540 lux / 422 fc | |
5600K | 1M | 5,900 lux / 548 fc | 1,242 lux / 115 fc |
2M | 1,550 lux / 144 fc | 340 lux / 32 fc | |
3M | 705lux/66fc | 160 lux / 15 fc | |
.5M | 22,000 lux / 2,044 fc | 4,830 lux / 449 fc | |
7500K | 1M | 6,300 lux / 585 fc | 1,344 lux / 125 fc |
2M | 1,650 lux / 153 fc | 360 lux / 33 fc | |
3M | 750lux/70fc | 170 lux / 16 fc |
