New & Improved Design for Better Customer Experience.

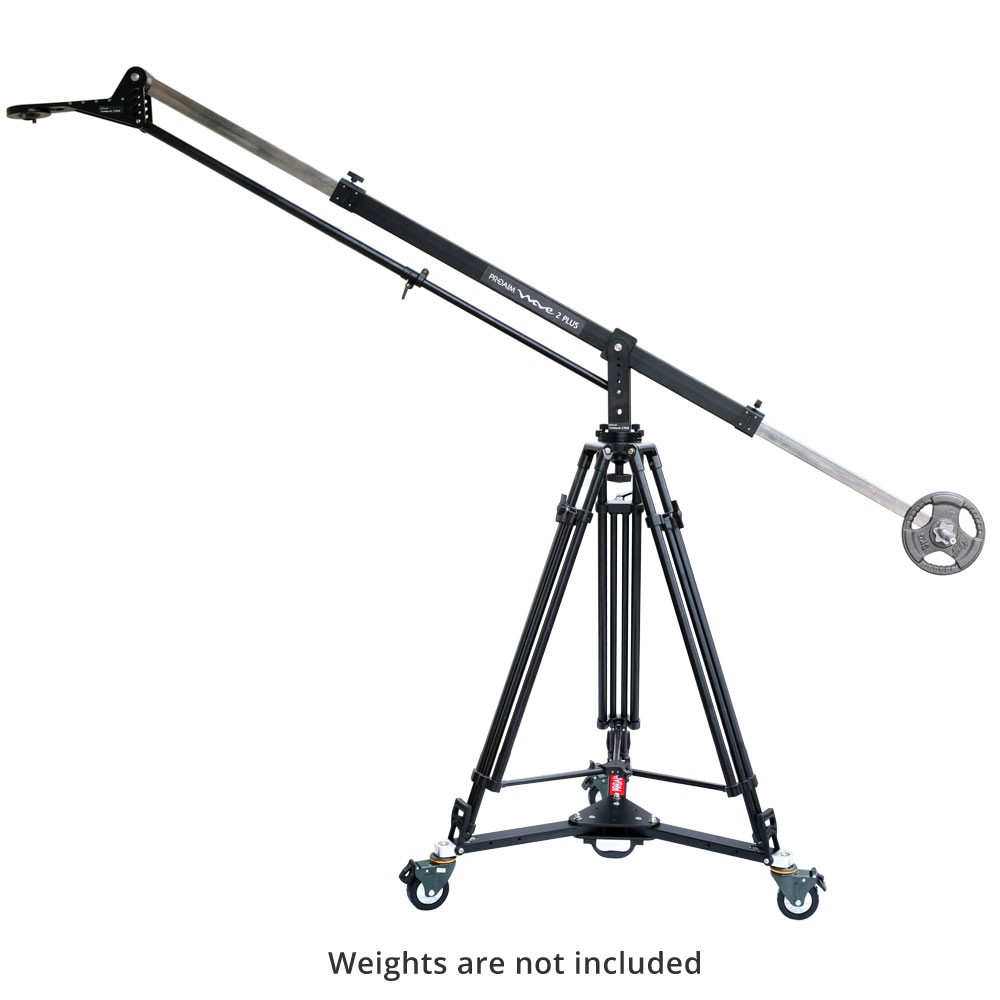

PROAIM welcomes you to the new and modernized era with its Proaim 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Potable Dolly, a portable filming solution to increase your production value. The Robust jib crane is specifically designed travel crane for indoor & outdoor video productions. Its telescopic arm feature adds flexibility to frame perfect shots in indoor and outdoor spaces. This video production package includes a rugged camera dolly for smooth, dynamic moving shots and rock solid aluminum tripod stand for immense support. Now you can create the visual effects and produce incredibly smooth floating camera crane shots that add value to your filming productions and bring a quick return on your investment.

Exclusive of Weights

Included

-  Proaim 10’ Wave-2 Plus Camera Jib Arm

-  Proaim CST-100mm Bowl Tripod stand

-  Proaim Portable Dolly (Revised on 08-Mar-2017)

-  75mm Bowl adapter

-  Red Spreader



-  Storage Bag

Specifications

CAMERA JIB ARM

- Maximum load capacity 25kg/55lbs

- Minimum load capacity 15kg/33lbs

- Tripod mount of 100mm/75mm diameter

- Camera Mount Bowl accepts 100mm and 75mm head (with ring)

- Pan Radius :360 Degrees

- Pan Lock: Yes (via pan friction knobs on U-Hub)

- Tilt Lock: Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)



100MM BOWL TRIPOD STAND

- Max length of tripod - 60 inch

- Minimum length of tripod - 34 inch

- Collapsible height - 36 inch

- Tripod tubes made of Aluminum

- Diameter of tripod tubes - 20mm and 14mm

- Load capacity – 80kgs /176lbs

-Tripod Weight-6.50 kg



PORTABLE DOLLY

- Weighing capacity-500kg.

- Weight of Product -10.7kg/23.5lb

- Hi-grade Aluminum tripod dolly for durability.



- Quality design and construction.



ROBUST CAMERA HEAD MOUNT  The camera mount accepts 75mm fluid heads and has a 90 degree tilting angle to capture those 'off axis' shots. With solid aluminium construction and a grey finish it looks as professional as it operates.



PANNING KNOBS & BUILT IN BUBBLE LEVELER  The well-built pan knobs controls the panning of jib & Built in bubble leveler for fast accurate set up on uneven surfaces.



ASSEMBLY HUB  Provides the perfect drag for smooth panning of arm. It swivels for absorbing unwanted vibration or movement from the operator and keep the controls in Comfortable position in any jib attitude.



WEIGHT-CLOSERS  Stronger weight closers locks the weight in place thereby preventing them from coming out.

CST-100 TRIPOD STAND

High Grade Tripod Stand
The Heavy duty stand is constructed to carry heaviest of loads with an ease. The Sturdy base ensures strong connection between the jib crane and tripod stand, extra solid knobs for secure locking.



PROAIM PORTABLE DOLLY (Revised on 08-Mar-2017)

High Strength Dolly
The versatile 3-Leg Proaim Portable Camera Dolly turns your Tripod into camera tracking device and allows you to take silver screen-worthy movement with a max payload of 500kg/1100lb.



EXTENDIBLE DESIGN

This travel friendly jib extends backward as per operator convenience for better control.



IMAGE GALLERY

Delivers dramatic angle shots for adding high impact in your productions

The supportive accessories are for Demonstration purpose.
