Tilta Nucleus-Nano Wireless Focus Control System ชุดควบคุมโฟกัสเลนส์แบบไร้สาย รองรับเลนส์กล้อง DSLR, mirrorless และ cinema ส่งสัญญาณระยะทางไกลสุด 90 เมตรผ่านคลื่น Wi-Fi 2.4 GHz สามารถมาร์คจุดโฟกัส A-B ได้ ชุดควมคุบมาพร้อมแบตเตอรี่ชาร์จได้ 14500 mAh ใช้งานได้นาน 6 ชั่วโมง ปุ่มควบคุมกล้อง REC/STOP ผ่านสายคอนโทรล (อุปกรณ์เสริม) ชุดมอเตอร์รองรับไฟ 5-18V ผ่านพอร์ท micro-USB สามารถติดตั้งเข้ากับชุดริกหรือกิมบอลด้วยเพลทพร้อม rod 15mm ในชุดมาพร้อมสายรัดเลนส์ 2 เส้น, แบตเตอรี่ 2 ก้อน, ที่ชาร์จ, เพลทติดกิมบอล Ronin-S/G2 และ Zhiyun Crane





Features

• Wireless Lens Focus Control Motor
• Wireless Hand Wheel Focus Controller
• Up to 300' Range
• 5 to 18V, 0.65 to 1Nm Torque Motor

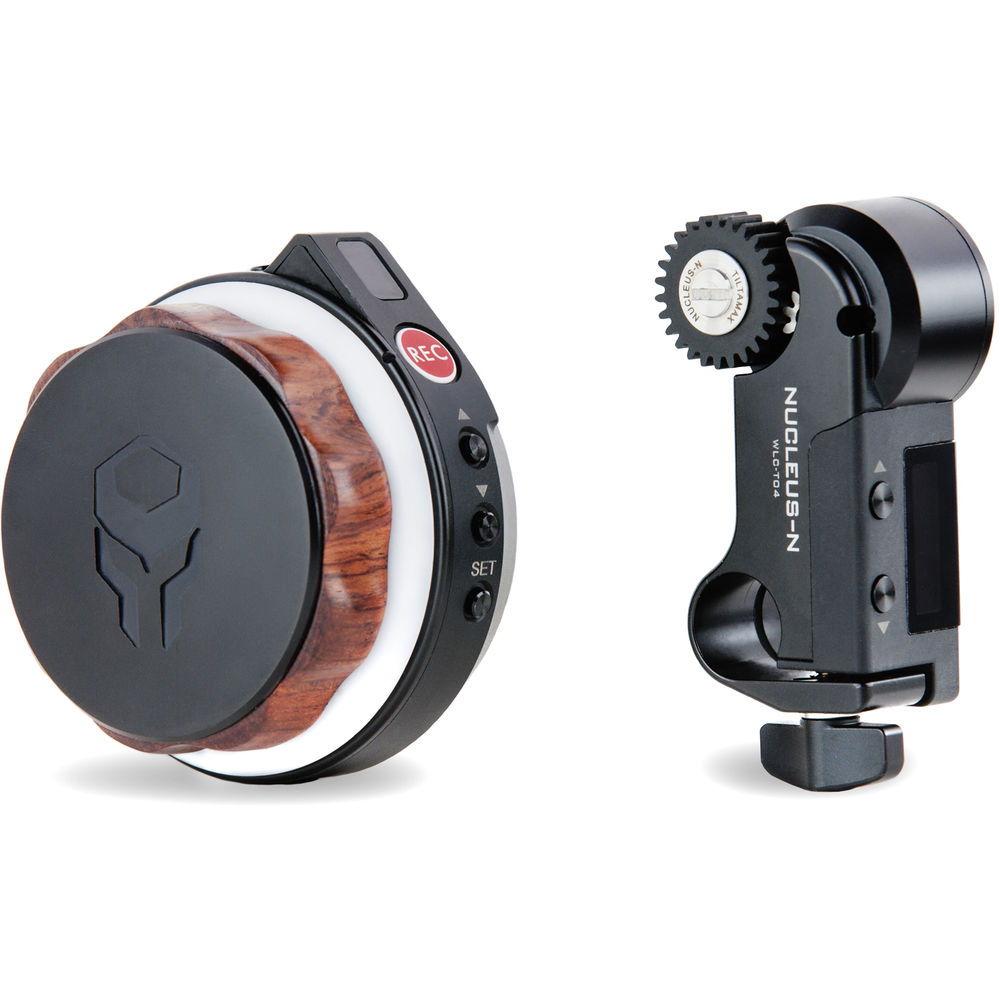

Use the Nucleus-Nano Wireless Focus Control System from Tilta to wirelessly control the focus of most DSLR, mirrorless, or cine-style lenses. The core of the system is the pairing of the focus control motor and the focus hand wheel. The units can connect to each other from 300' away, and can be mounted in a variety of ways.

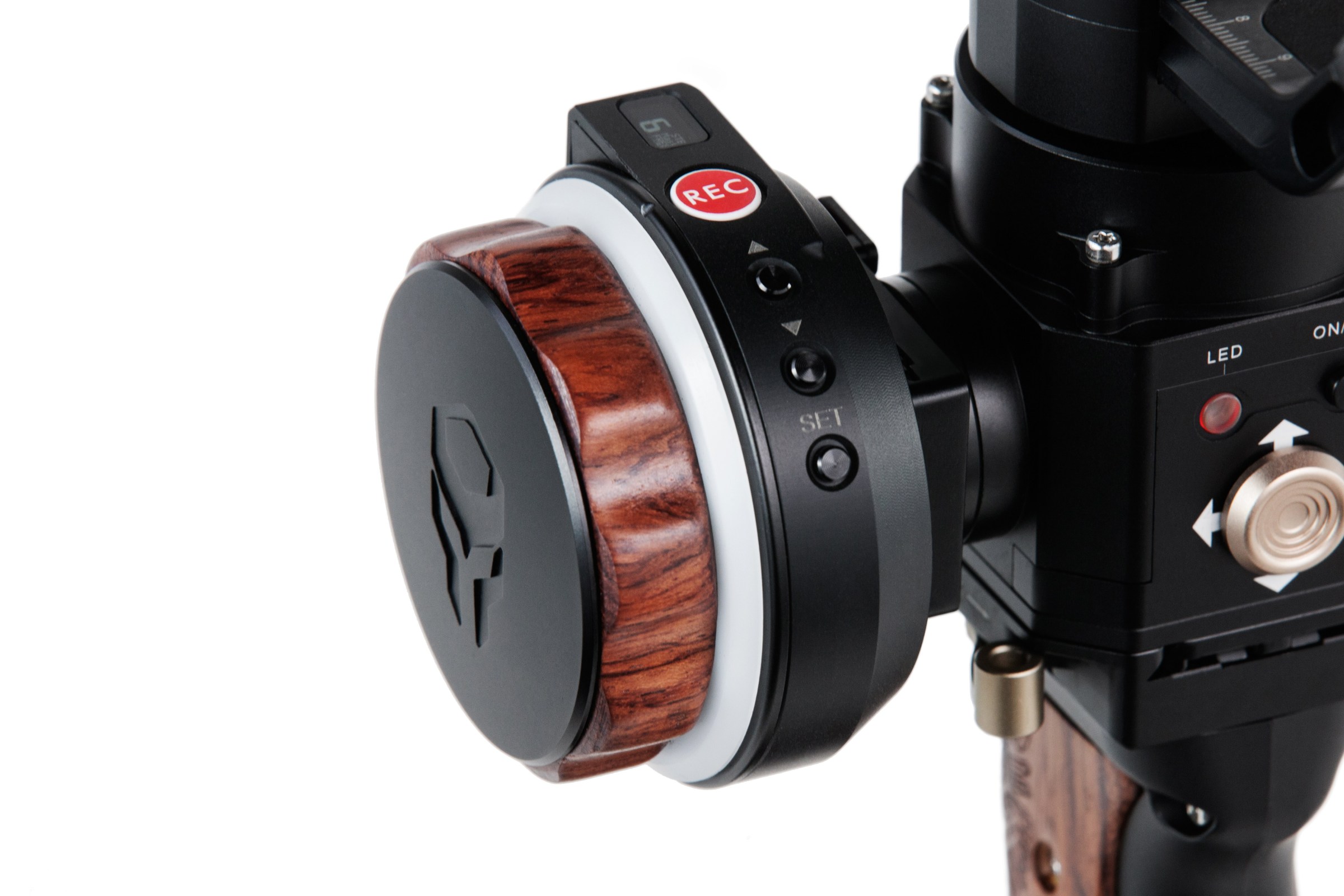

The units support run/stop functions and setting hard A and B limits for more control over your camera and lens. The hand wheel is powered by a single 14500 lithium battery and the motor is powered by your camera or a battery via its micro-USB connector. The units are both constructed of durable materials, and the hand wheel features an attractive, comfortable rosewood grip.

Included in the kit with the hand wheel and motor are a mounting baseplate for 95mm lenses, a 15mm rod, a micro-USB motor cable, a 0.8 MOD motor gear, two lens gear rings, attachment plates for the Ronin-S/G2 and Zhiyun Crane, a dual-battery charger, two batteries, mounting screws, and two Allen keys. See below for more information about the items that make up the system.

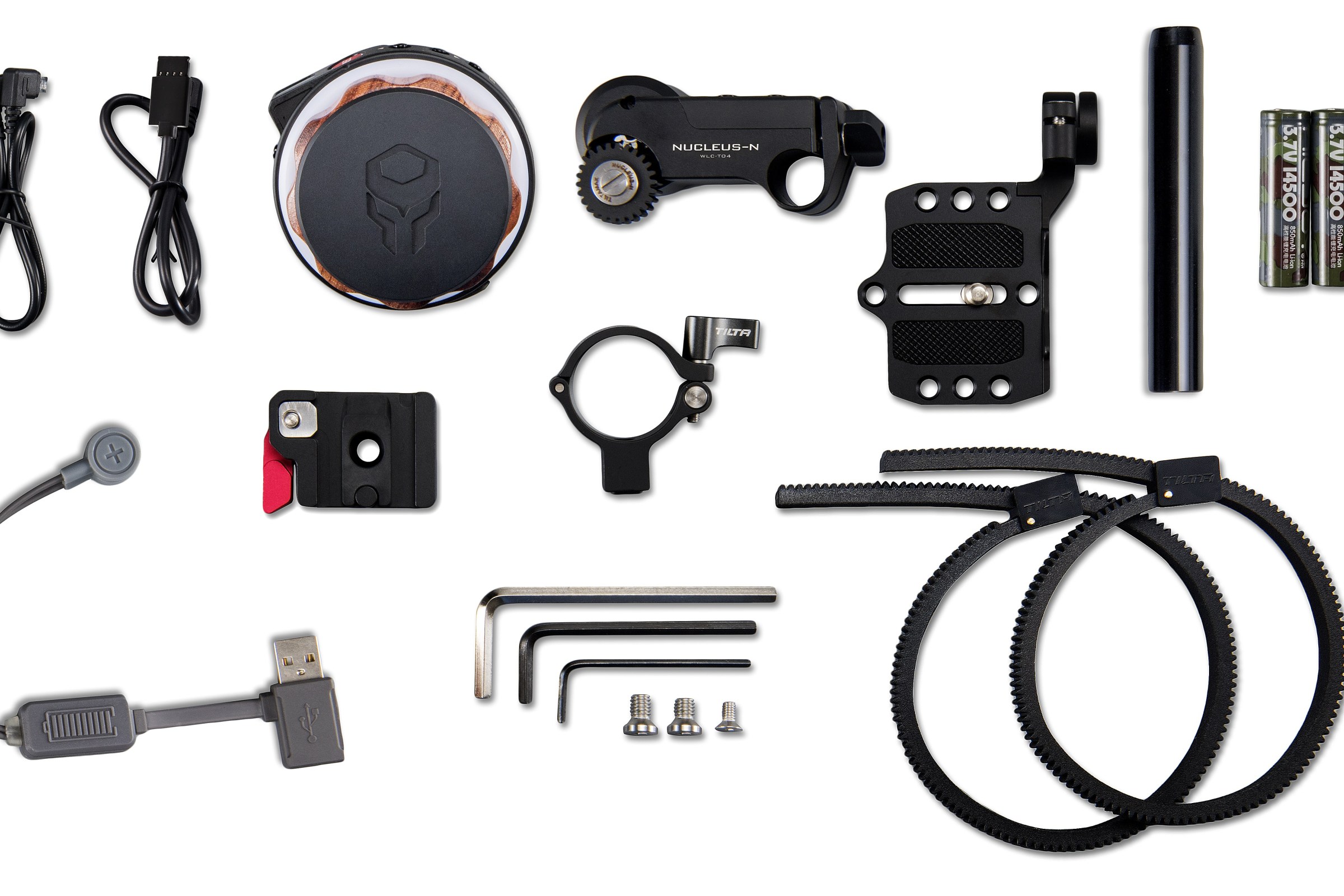

Packing List

(1) Nucleus-Nano Hand Wheel Controller

(1) Nucleus-Nano Wireless Follow Focus Motor

(1) 15mm Single Rod Mounting Baseplate For 95mm Lens

(2) 1/4″-20 Hex Screws

(2) Rod Mount Hex Screw

(1) 15mm x 100mm Black Aluminum Rod

(1) 31cm 5V Micro USB male to 5V Micro USB male motor power cable

(1) 12V / 2A Ronin-S to 5V Micro USB male motor power cable

(2) Photographic lens follow focus gear rings

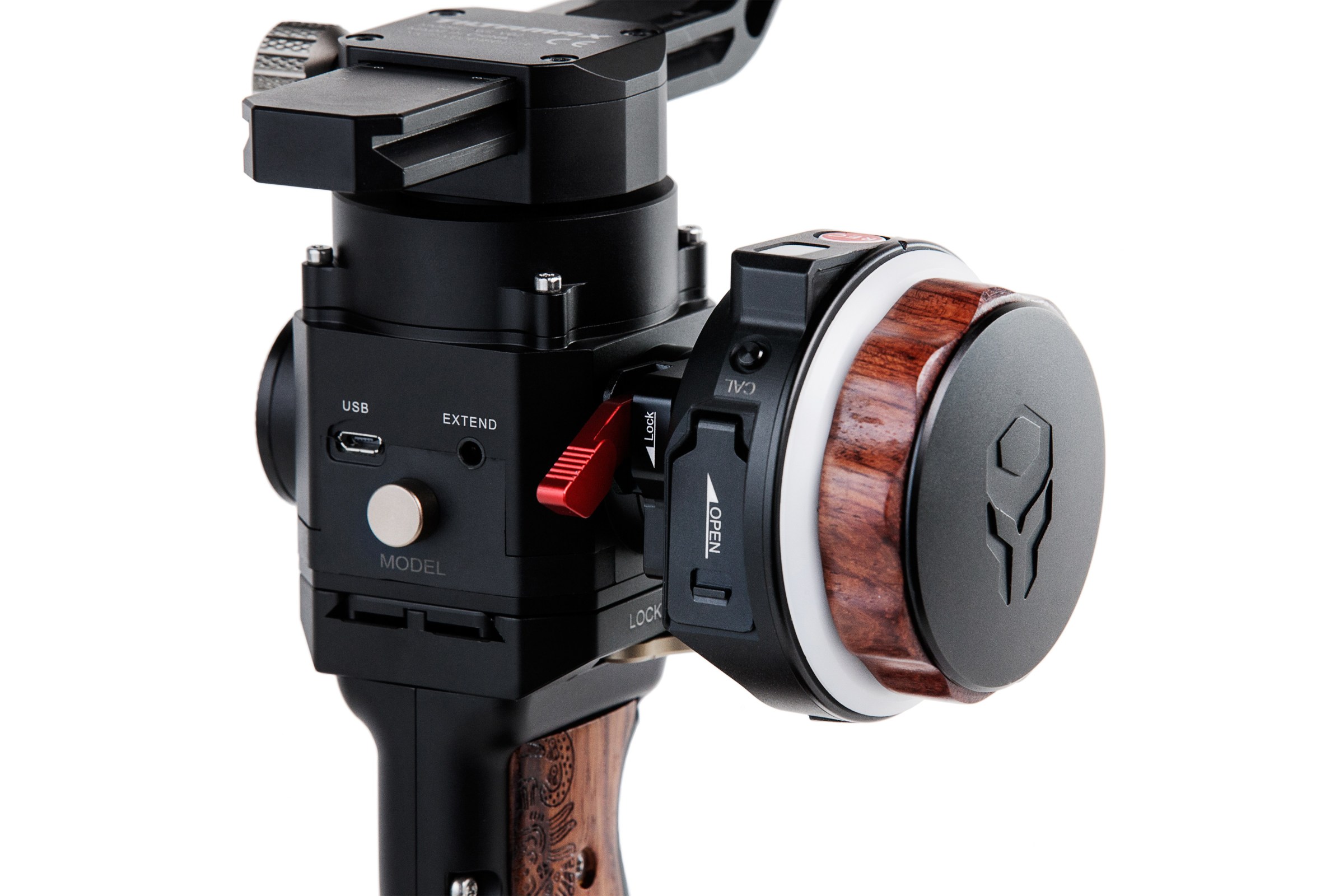

(1) Nucleus-Nano Hand Wheel Attachment Plate for Ronin-S/G2x

(1) Nucleus-Nano Hand Wheel Attachment Adapter for Zhiyun Crane 1

(1) 14500 Battery Charger

(2) 14500 Batteries

(1) M4 Allen key

(1) M6 Allen key

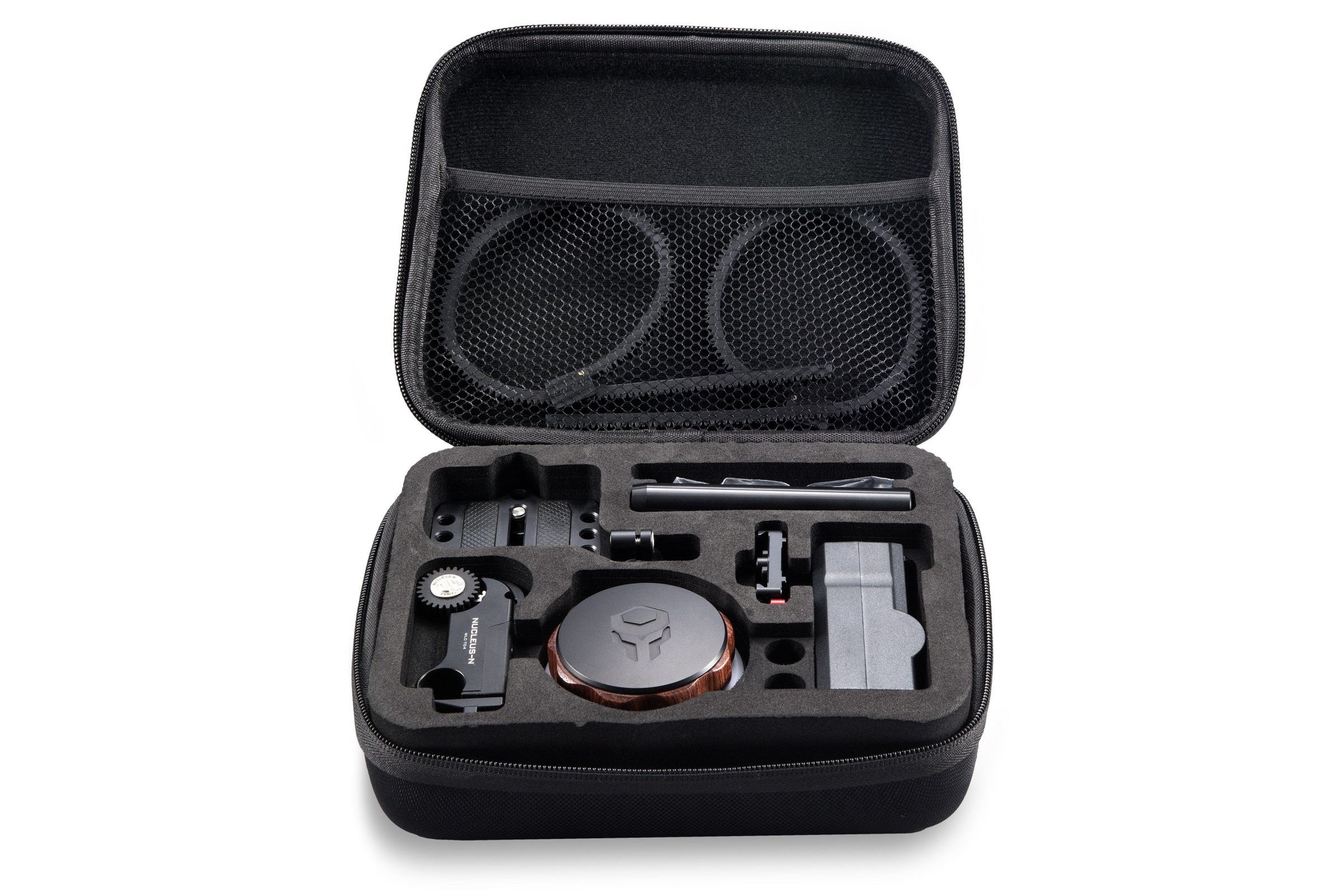

 (1) Soft Case

(1) User Guide



Specifications

Weight:

Nano Hand Wheel Controller (no batteries): 0.351 lbs

Nano Motor: 0.168 lbs

15mm Lightweight Rod Mounting Frame Baseplate with 15mm x 100mm Rod: 0.172 lbs

Hand Wheel Controller Adapter for Tilta Gravity G2X and DJI Ronin-S: 0.046 lbs

Nano Motor Dimensions:



Length/Height: 8cm

Width: 2.26cm (end to end furthest points)

Depth: 2.38cm

Nano Hand Wheel Controller Dimensions:



Diameter: 7.3cm

Depth: 4.13cm

Color: Black



Material: Aluminum-alloy, stainless steel, ABS plastic, rubber, Brazilian rosewood
