SmallRig Compact V-Mount Battery Mounting System 4064B เพลทติดกล้องแบบ Arca-Swiss พร้อมเพลทใส่แบต V-Mount ปรับมุมได้ทั้งแนวตั้งและแนวนอน

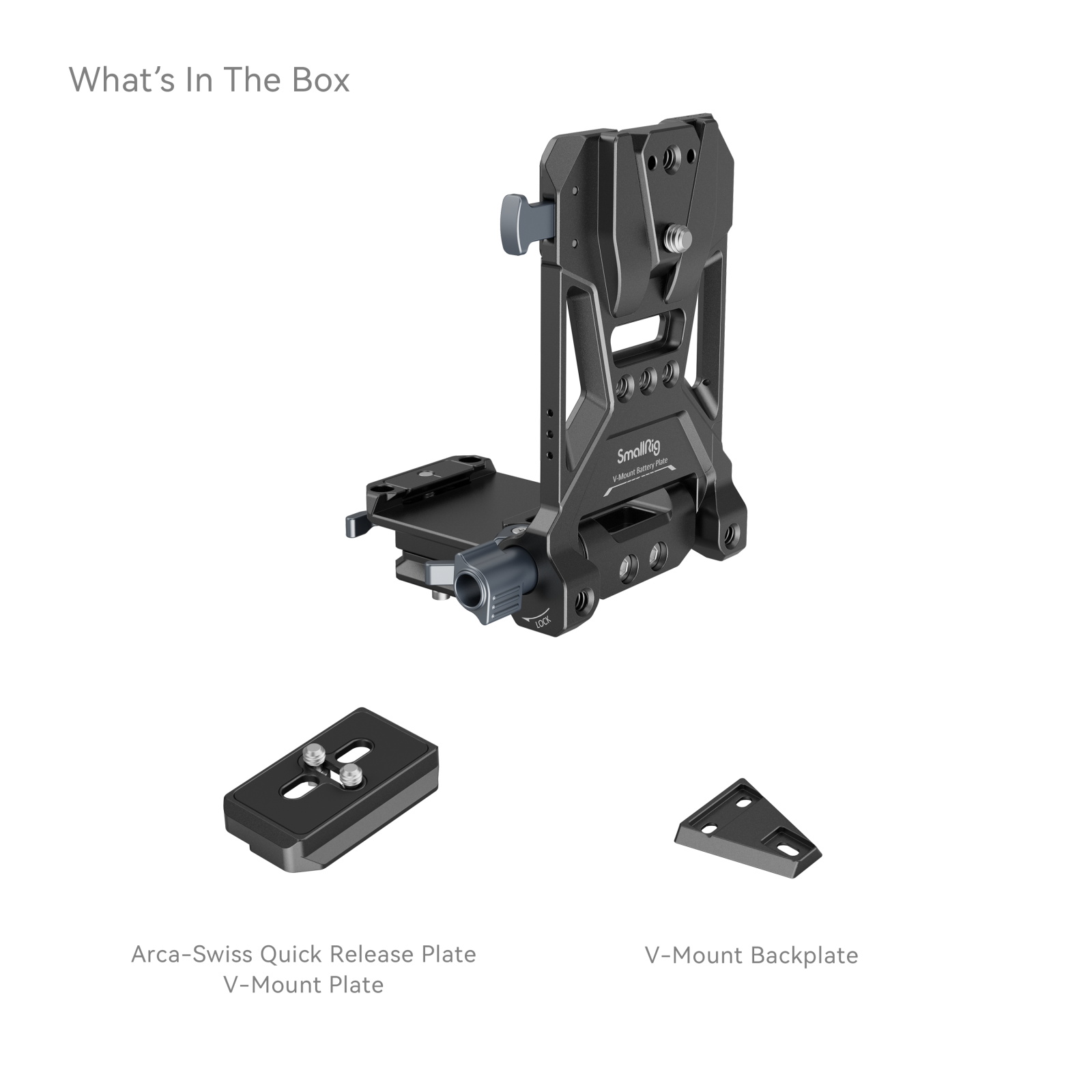

SmallRig Compact V-Mount Battery Mounting System 4064B is a compact, lightweight, convenient, all-in-one mounting solution for V-mount batteries. The kit includes a V-mount battery plate, an Arca-Swiss quick release plate, and a V-mount plate. The baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes. Tool-free installation and adjustment make the process quick and time-saving. Beyond any cage with a built-in Arca-type mount, it can directly support cameras and DJI RS series gimbals via the Arca-Swiss quick release plate. The built-in 1/4"-20 threaded holes and a V-Mount plate provide more power supply solutions by attaching a Battery Adapter Plate Professional Edition (ID:3168), Mounting Clamp for Portable Power Banks BUB2336, etc. A detachable Arca-type plate at the bottom allows quick switching between handheld and tripod shooting and is interchangeable with other quick release plates. The rotatable structure of the V-Mount battery plate allows 90° backward rotation facilitating screen usage and adopts damping to prevent your device from falling. The folding design of the V-Mount plate increases compactness and portability.The included aluminum alloy V-Mount Backplate can replace the plastic V-Mount Plate on the back of other V-mount batteries.

Designer: Yetta White

Note:

Load-bearing capacity: 5kg / 11.0lb

Compatibility

Mirrorless / DSLR cameras less than 111mm thick, for example:

Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30

Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP

Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5

Specifications

Sony FX3 / FX30 / a7R V / a7C / a7S III / a7 IV

Canon EOS R7 / EOS R10 / EOS R6 / EOS R5 / EOS R5C / EOS R6 Mark II / EOS RP / EOS R

Panasonic Lumix GH6 / Lumix GH5 / Lumix S5 / Lumix S5 II / Lumix S1 / Lumix S1H / Lumix S1R

DJI RS Series Gimbals

Physical

Mounting: 2 x V-Mount Plate

Multiple x 1/4"-20 Threads

1 x Arca-Swiss Plate

Load Capacity: 11 lb / 5 kg

Color:Black

Material of Construction: Aluminum Alloy, Stainless Steel

Dimensions: 4.6 x 3.6 x 1.3" / 117 x 92 x 33 mm

Weight: 9.7 oz / 275 g

Packaging Info

Package Weight: 0.71 lb

Box Dimensions (LxWxH): 5.25 x 5.2 x 2.1"
