Hollyland Mars 400S PRO SDI/HDMI Wireless Video Transmission System ชุดส่งสัญญาณภาพไร้สายแบบ SDI/HDMI รองรับสัญญาณสูงสุด 1080p60 ระยะส่ง 120 เมตร หน้าจอ OLED แสดงสถานะการทำงาน สามารถดูภาพผ่านแอพได้สูงสุด 4 เครื่อง เสาอากาศคู่ทั้งตัวรับ/ตัวส่ง ใช้แบตเตอรี่ Sony L-Series, อแดปเตอร์ หรือ USB Type-C พร้อมที่ติดฮอทชูในตัว ฟังก์ชั่นสแกนหาคลื่นผ่านแอพ

Features

• Transmits up to 1080p60 SDI or HDMI video
• 400' line-of-sight transmission to receiver, 300' to App
• Bright OLED display
• Real-time app monitoring and live streaming via the HollyView app
• Simultaneously transmit to one receiver and two apps, or to four apps
• HDMI and SDI inputs on transmitter and HDMI and SDI outputs on receiver
• Two antennas on transmitter and two antennas on receiver
• Power via L-series battery, DC adapter, or USB Type-C input
• Integrated shoe adapter with 1/4"-20 mounting thread
• Install optional channel scan firmware via the HollyView app to find the strongest signal

Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 400S PRO SDI/HDMI Wireless Video Transmission System from Hollyland. The transmitter provides HDMI and SDI inputs and the receiver offers SDI and HDMI outputs. It features extremely low 0.08s latency with line-of-sight transmission up to 400' to the receiver and up to 300' to the Hollyview Wi-Fi app. For a strong line-of-sight signal, the system includes two external antennas on the transmitter and two on the receiver, and one is included as a spare.

Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection as well as live stream directly from the receiver via your computer using a USB Type-C adapter. The app also allows you to install optional channel scanning firmware enabling you to easily find the strongest transmission signals. The transmitter can simultaneously transmit to up to one receiver and two apps, or to a total of four apps without the receiver. The redesigned body makes it a low-profile choice for your rig, and it features multiple fan modes to keep it cool or quiet when you are shooting.

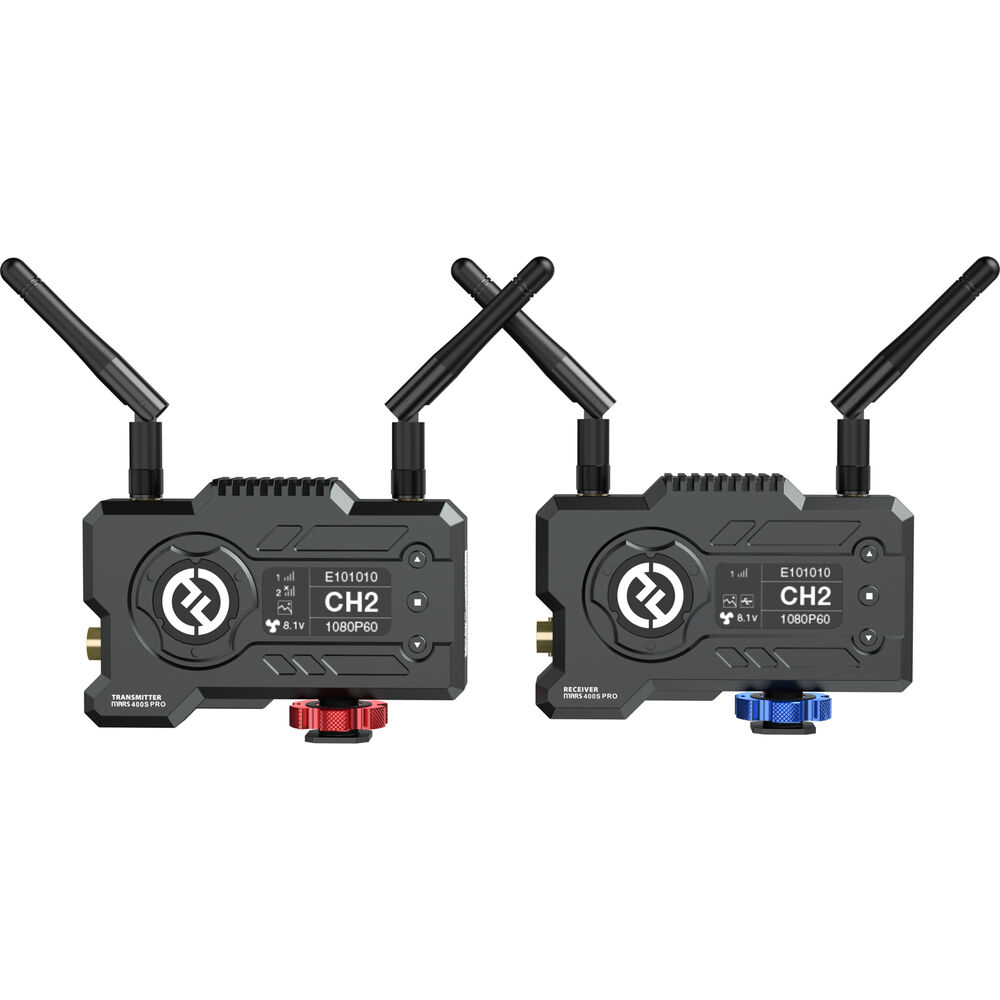

The 400S PRO transmitter and receiver are compact in size, feature a bright OLED display for configuration, and an integrated shoe adapter with a 1/4"-20 mounting thread for different mounting options. Each unit can be powered using a USB Type-C source, the included locking DC power adapter, or by using a separately available L-series type battery using the integrated battery plate.



Specifications

Wireless

Wireless Range: 400' / 121.92 m (Line-of-Sight)

300' / 91.4 m (Line-of-Sight)

Channel Bandwidth: 20 MHz

Frequency Range: US: 5 GHz

Latency: 0.08 sec

RF Power: < 21 dBm

RF Sensitivity: -80 dBm

Wireless Video Compression: Uncompressed



Interfaces

Transmitter Antenna Ports: 2 x RP-SMA Male

Receiver Antenna Ports: 2 x RP-SMA Male

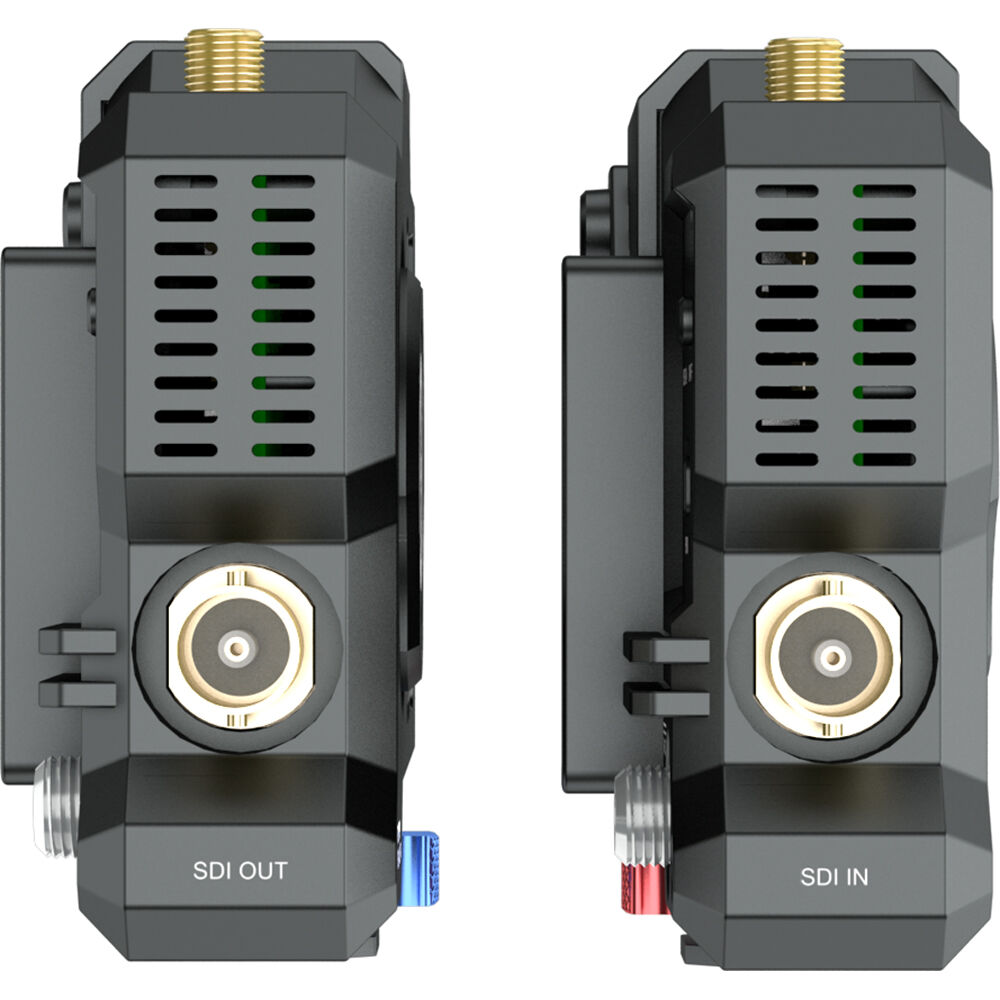

Transmitter Video Connectors: 1 x BNC (3G-SDI / HD-SDI) Input

1 x HDMI Input

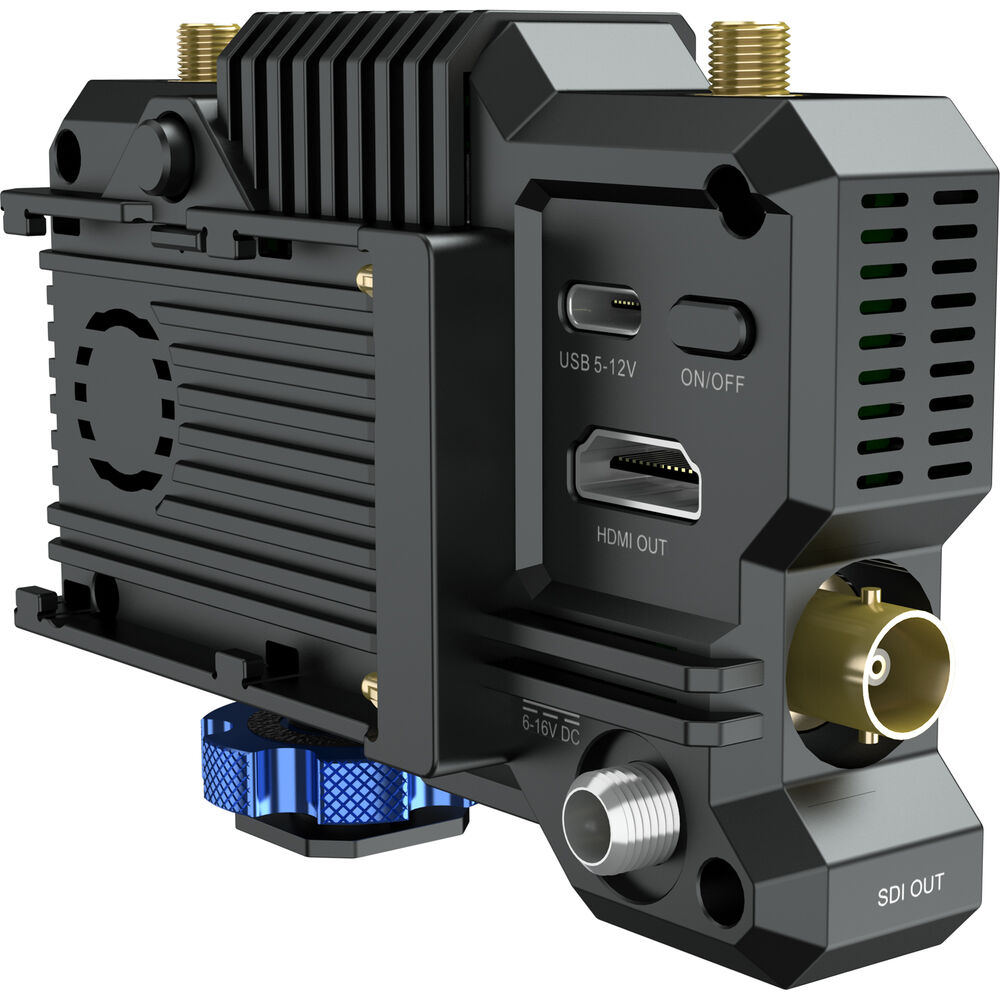

Receiver Video Connectors: 1 x BNC (3G-SDI) Output

1 x HDMI Output

Transmitter Other I/O: 1 x USB Type-C

Receiver Other I/O: 1 x USB Type-C

Embedded Audio: HDMI/SDI



Format Support

Video Format: SDI/BNC:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

1080PsF at 23.98, 24, 25 fps

720p at 50, 59.94, 60 fps

HDMI:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

720p at 50, 59.94, 60 fps

576p at 50 fps

480p at 60 fps



Display

Transmitter Panel Type: OLED

Receiver Panel Type: OLED



Power

Transmitter Built-In Battery: None

Receiver Built-In Battery: None

Transmitter Battery Support: 1 x Sony L-Series / NP-F Type

Receiver Battery Support: 1 x Sony L-Series / NP-F Type

Transmitter Power Connector: 1 x Barrel (6 to 16 VDC up to 2 A) Input

1 x USB Type-C (5 VDC up to 2 A) Input

Receiver Power Connector: 1 x Barrel (6 to 16 VDC up to 2 A) Input

1 x USB Type-C (5 VDC up to 2 A) Input

Transmitter Power Consumption: Power Supply: 6 to 16 VDC (11 W)

Receiver Power Consumption: Power Supply: 6 to 16 VDC (7 W)



General

Transmitter Mounting: 1 x 1/4"-20 Female

1 x Cold Shoe

Receiver Mounting: 1 x 1/4"-20 Female

1 x Cold Shoe

Transmitter Dimensions: 4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm

Receiver Dimensions: 4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm

Transmitter Weight: 0.5 lb / 206 g

Receiver Weight: 0.5 lb / 206 g
