Manfrotto Nitrotech N8 Video Head & 546GB Pro Tripod with Ground-Level Spreader ชุดขาตั้งกล้องวิดีโอ Manfrotto 546GB พร้อมหัวน้ำมัน Nitrotech N8 รับน้ำหนักได้ 8 กิโล ปรับ counter balance ได้แม่นยำด้วยระบบลูกสููบไนโตรเจน เพลทกล้องเซฟตี้ล็อก ปรับความหนืดแพนทิลท์ได้ ไฟบอกระดับน้ำ หัวโบวล์ 75 มม. ถอดแยกได้เพิ่มความยืดหยุ่นในการใช้งานร่วมกับขาตั้งฐานเรียบ หรือรางสไลด์

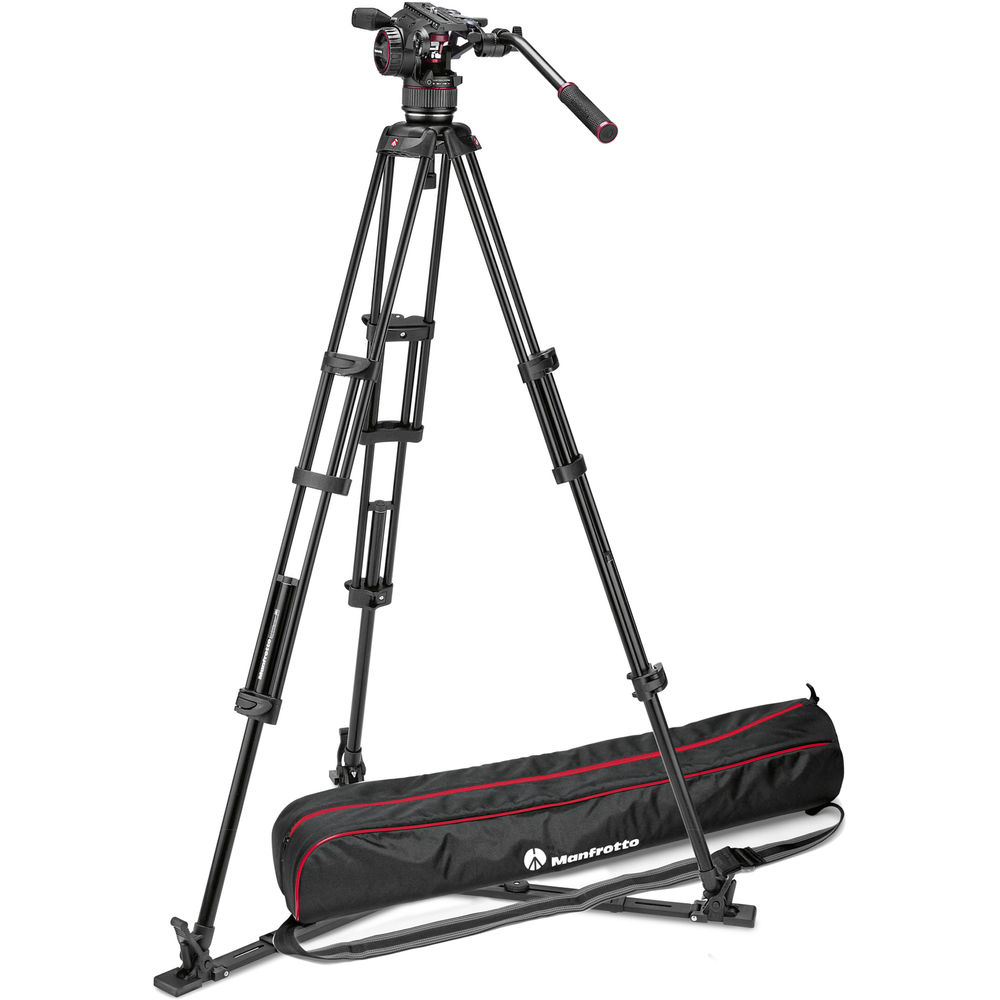

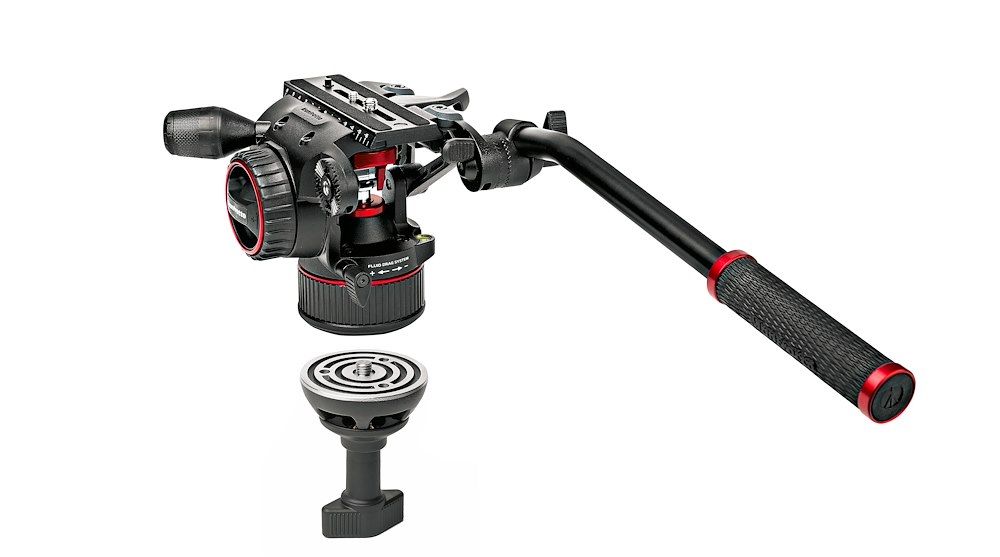

The Manfrotto Nitrotech N8 Video Head & 546GB Pro Tripod kit features an innovative counterbalance system based on a nitrogen piston mechanism. Unlike heads where the counterbalance clicks into place at set levels, the Nitrotech N8 features a continuously variable counterbalance control. With a maximum payload capacity of 17.6 pounds, the N8 is suitable for use with a variety of video cameras. Head features include a sliding camera plate with safety lock, fluid-drag pan and tilt functions, and an illuminated bubble level. This 75mm flat base head can be used with the included half ball adapter for maximum flexibility in mounting on the tripod, a slider, hi-hat, or other support.

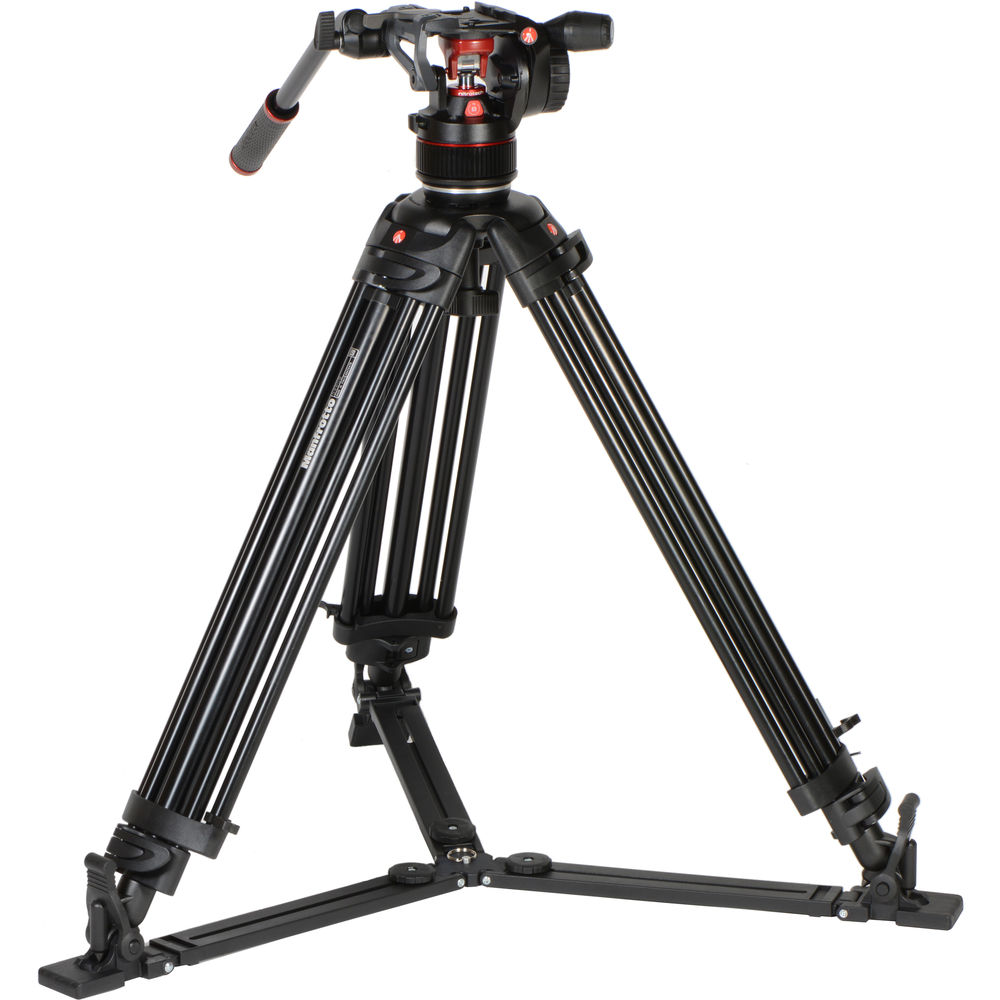

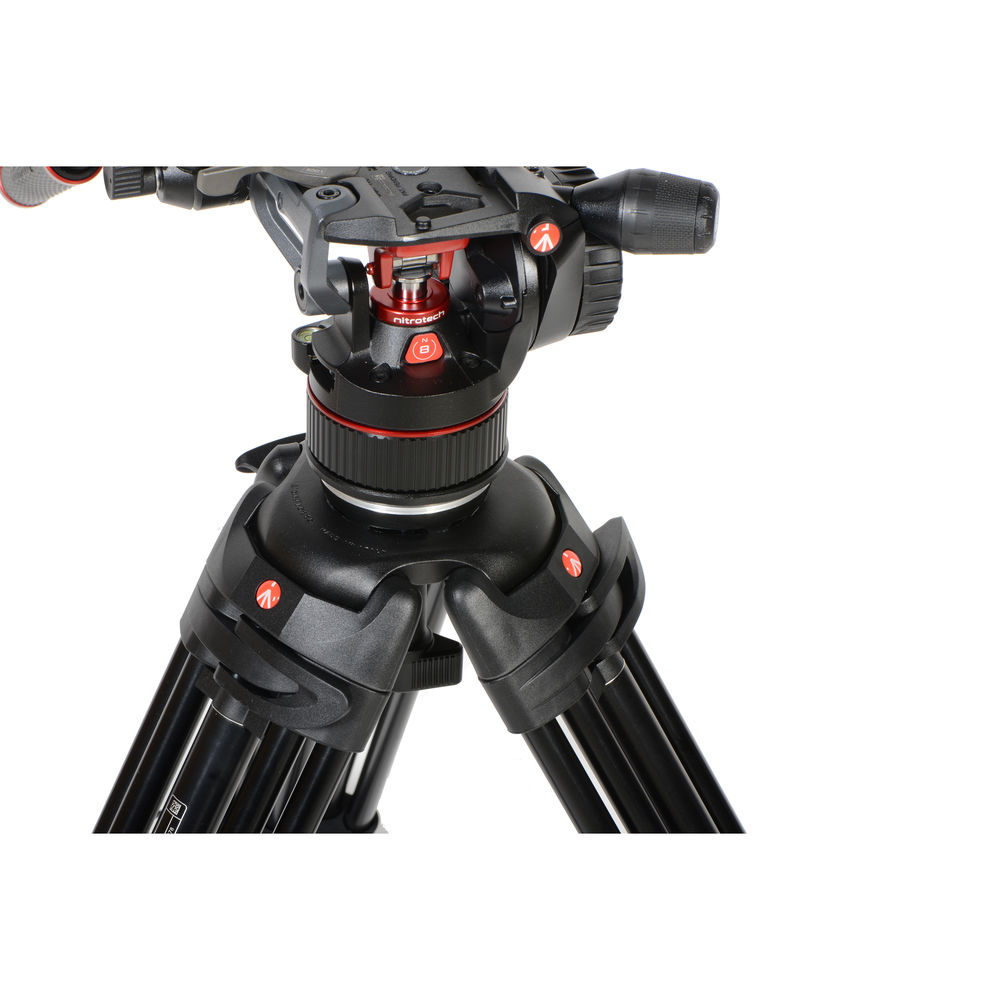

The 546GB features two-stage aluminum legs, a 75mm bowl, and a ground-level spreader. These tripod legs can support up to 44 pounds, and have a height range of 12.8 to 62.4". Each leg is individually adjustable. The 546GB's spiked feet slip into the included ground-level spreader and are secured with a strong rubber latch. This allows you to use the tripod on a variety of surfaces, enabling setups on both smooth floors and uneven surfaces. The spreader can be detached for use on soft ground.

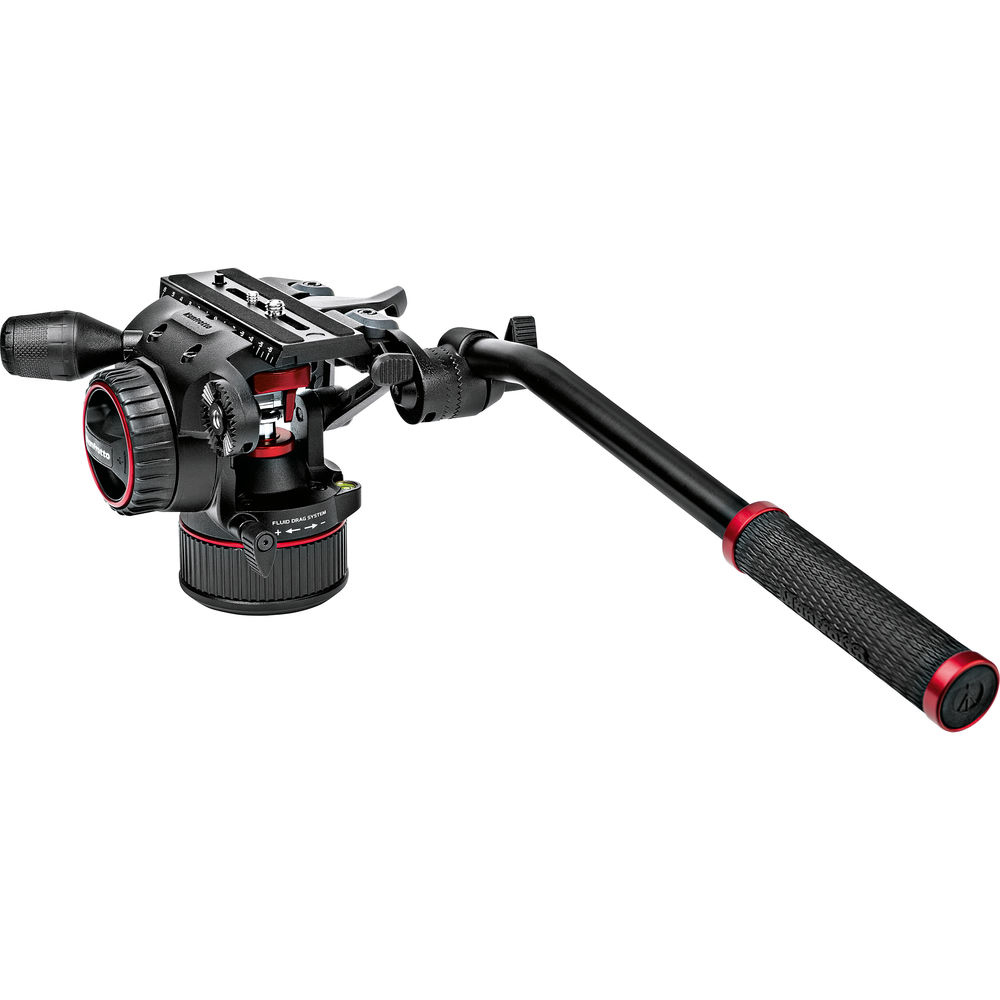

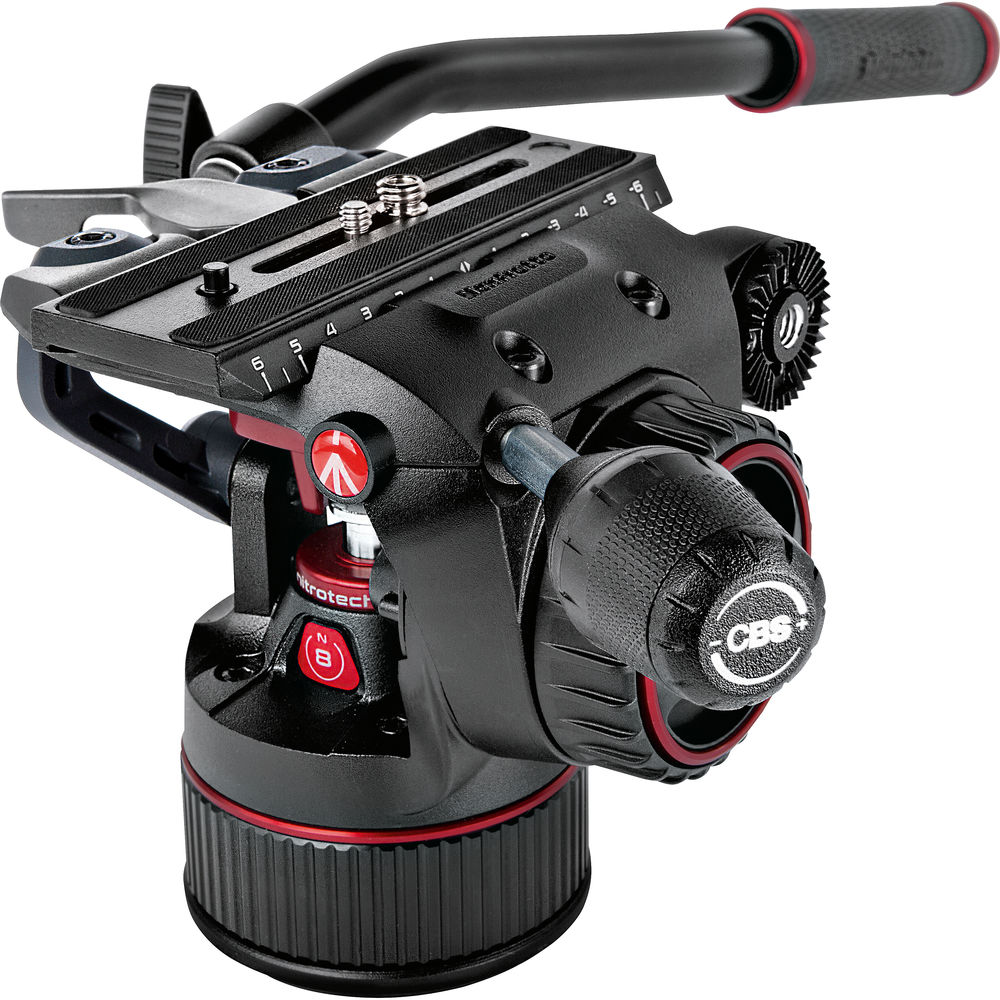

Manfrotto Nitrotech N8 Video Head Specs

Camera Plate

Camera Plate FeaturesSliding Balance Plate

Camera Mounting Screw1 x 1/4"-20 Male

1 x 3/8"-16 Male

Tripod Platform

Base Mount3/8"-16 Female

Pan & Tilt

Drag ControlContinuous

Drag TypeFluid

Vertical Tilt+90° to -70°

Panning Range360°

Physical

MaterialAluminum

Load Capacity17.6 lb / 8 kg

Counter BalanceContinuous

Center of Gravity2.2" / 55 mm

Bubble Level1 x Illuminated

Base Diameter2.95" / 75 mm

Dimensions5.8" / 14.7 cm

Weight4.8 lb / 2.2 kg

Packaging Info

Package Weight6.505 lb

Box Dimensions (LxWxH)14.55 x 9.6 x 8.05"



Manfrotto 546GB Pro Video Tripod With Ground-Level Spreader Specs

General

Head Mount Type75 mm Bowl

Load Capacity44 lb / 20 kg

Maximum Working Height62.4" / 158.5 cm

Minimum Working Height12.8" / 32.5 cm

Folded Length27.17" / 69 cm

MaterialsAluminum

Bubble LevelYes

Weight7.72 lb / 3.5 kg

Legs

Leg Lock TypeFlip Lock

Independent Leg SpreadNo

Leg Sections3

Leg Diameter1" / 25 mm

Feet FeaturesRubber, Removable

Center Column

Center Column FeaturesCenter Brace

Packaging Info

Package Weight9.8 lb

Box Dimensions (LxWxH)31 x 9 x 9"
