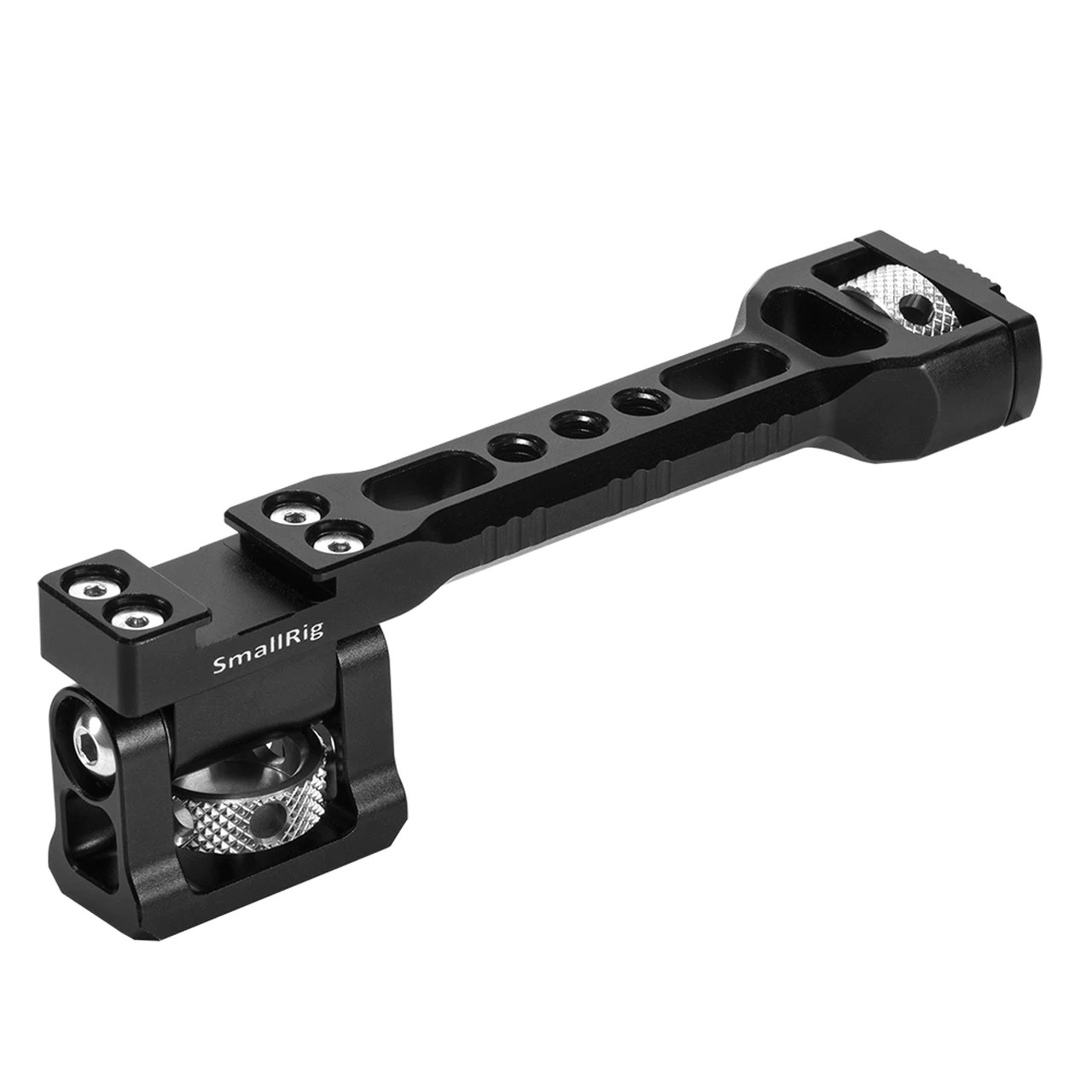

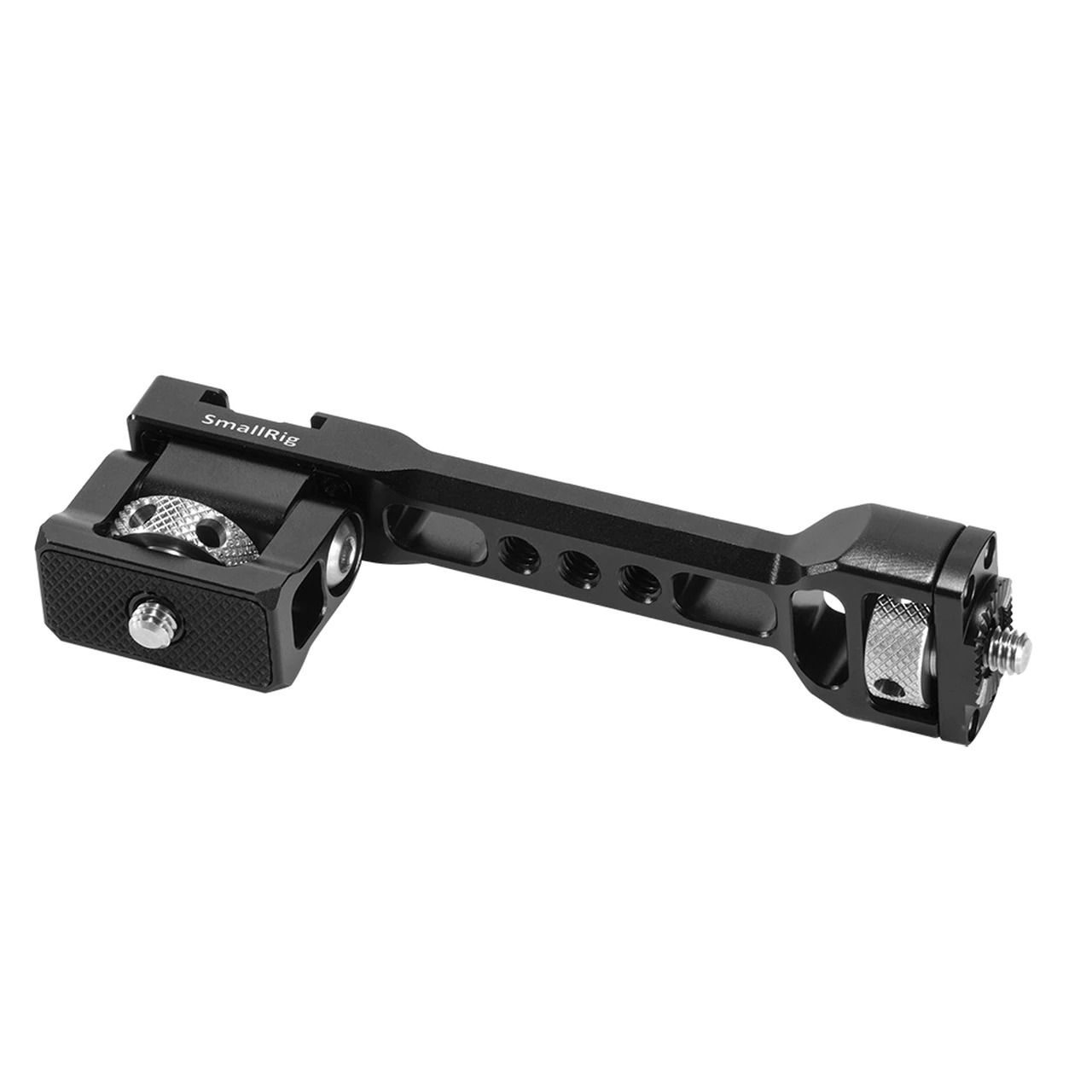

SmallRig Adjustable Monitor Mount for Selected DJI & Zhiyun & Moza Handheld Gimbal Stabilizers Gimbals BSE2386

ที่ติดจอมอนิเตอร์เข้ากับกิมบอล DJI, Zhiyun, Moza

Key Features:

1. Mounts Monitor or Accessory on Handheld Gimbal.

2. Supports Monitor up to 1kg.

3. Tilt 180° with Free-Stop at Any Position.

4. 1/4”-20 & Cold Shoe Accessory Mount.

5. Features Slots on Thumbscrews for Further Secure with Allen Wrench.

6. Adjustable Degree of Tightness

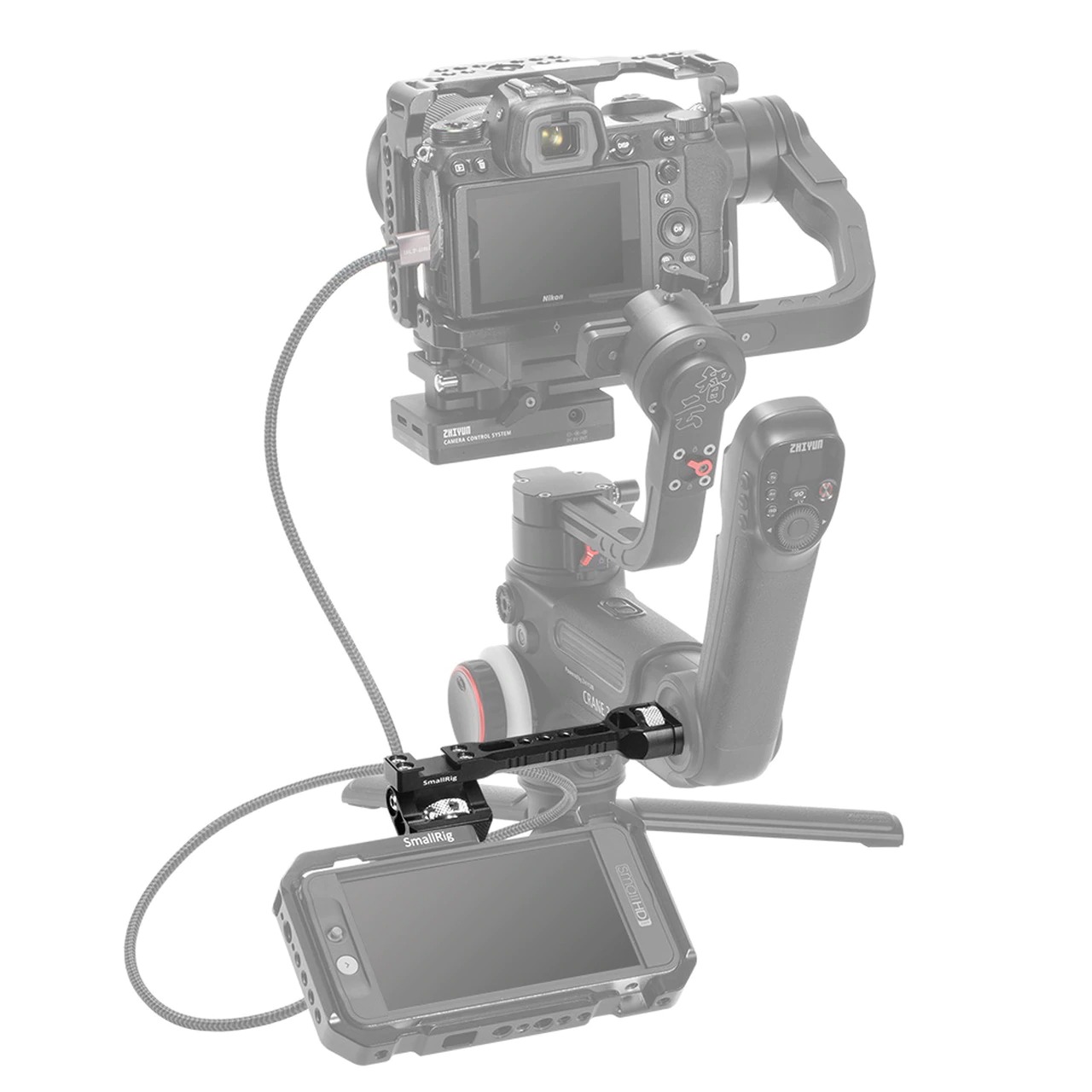

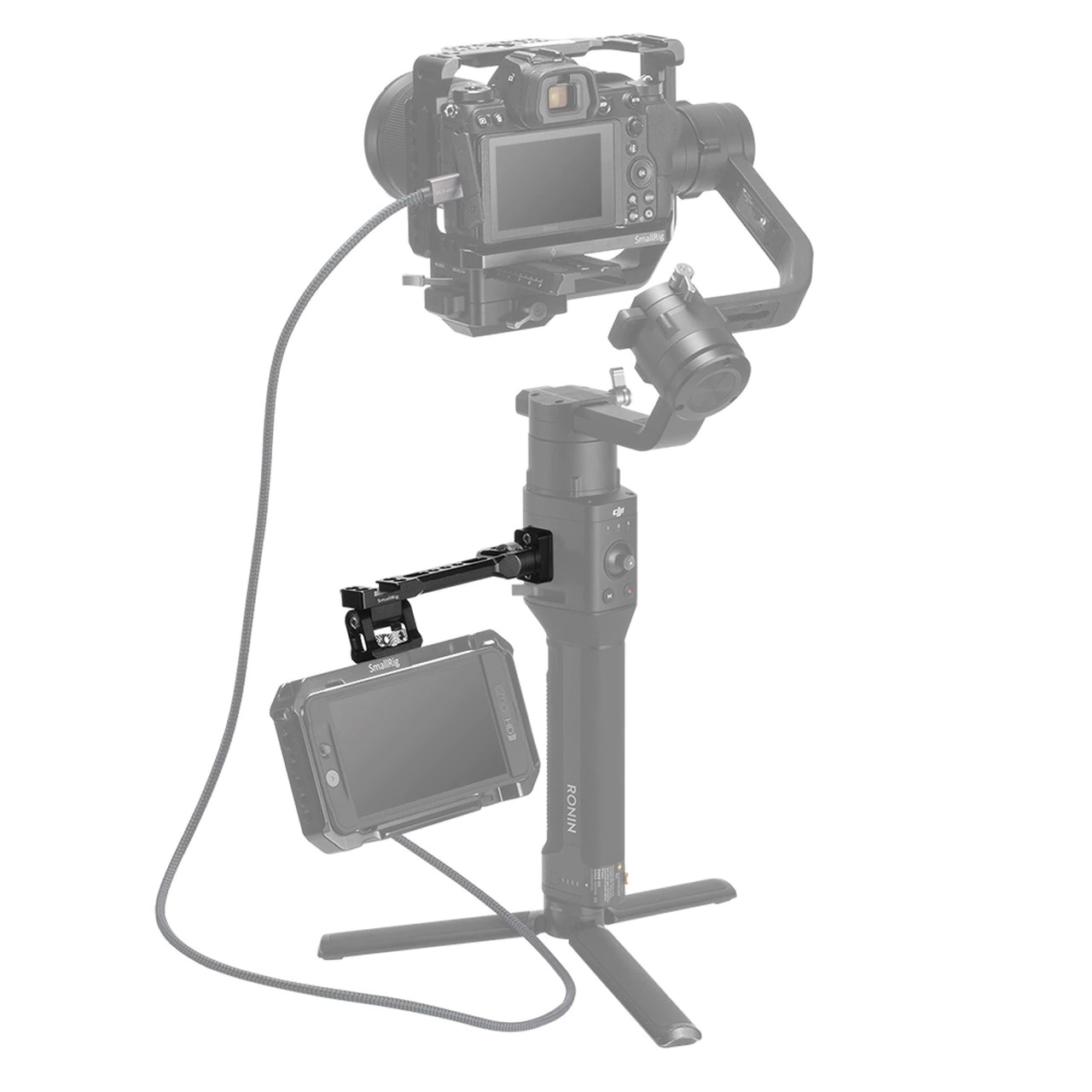

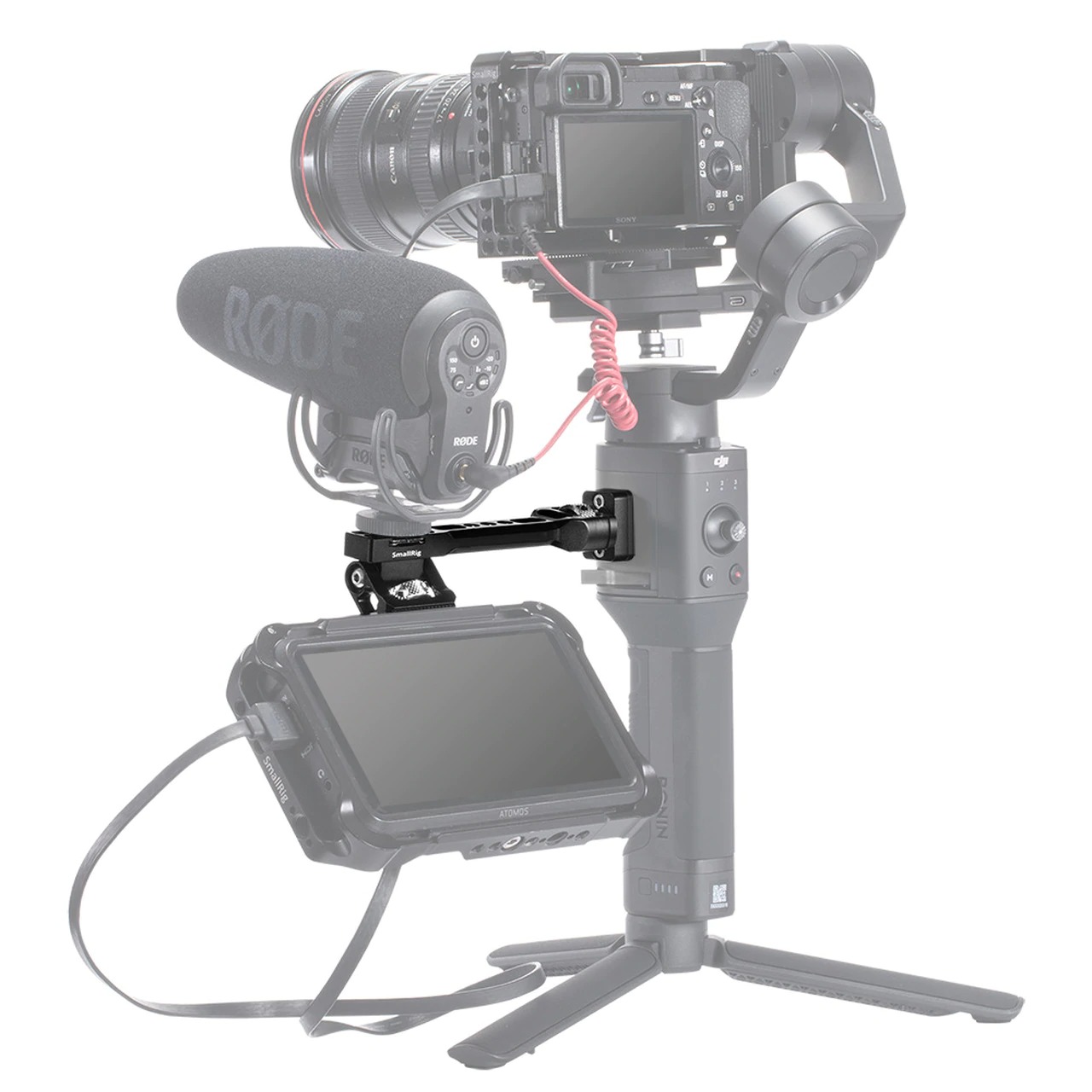

SmallRig Adjustable Monitor Mount for Selected DJI & Zhiyun & Moza Handheld Gimbal Stabilizers Gimbals BSE2386 is designed to hold your monitor onto the handheld stabilizers. The monitor mount secures to the ZHIYUN CRANE 3/3S, WEEBILL-S/LAB with a 1/4”-20 screw and the built-in rosette to prevent twists, and mounts to the side of DJI Ronin-S/SC/RS 2/RSC 2 via the rosette adapter plate. It can support monitor up to 1kg, especially designed for 5” monitors. The monitor arm enables to tilt 180° and it can stop at any position without limitation. There are three 1/4-20 accessory holes and a cold shoe mount for microphone or light. The robust mount features a rubber pad to protect your monitor from scratching. Each thumbscrew features holes for the Allen wrench to ensure your monitor safe.

Designer: Tracy Joy

Note：

1. Maximum payload: 1kg

2. Please use the Allen Wrench to re-tighten the thumbscrew to ensure safe.

3. For Moza AirCross2, please attach the Mounting Plate 2826 first before attaching the monitor mount.

Compatibility:

DJI RS 2/RSC 2

DJI Ronin-S/SC

ZHIYUN WEEBILL-S/WEEBILL LAB

ZHIYUN CRANE 2S/3S/3 LAB

Moza AirCross2

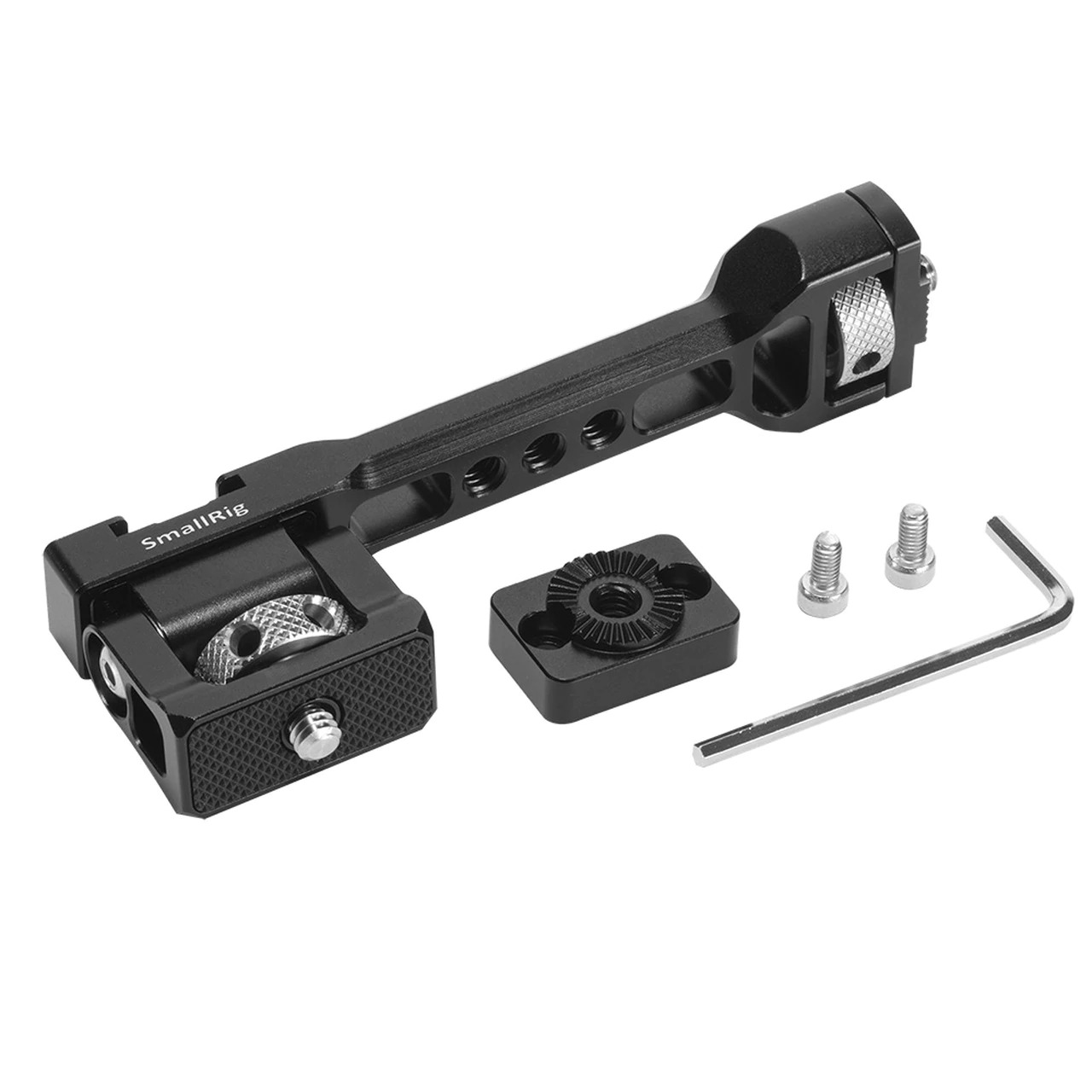

Package Includes:

1 x Monitor Mount

1 x Rosette Plate

2 x M4 Screw

1 x Allen Wrench

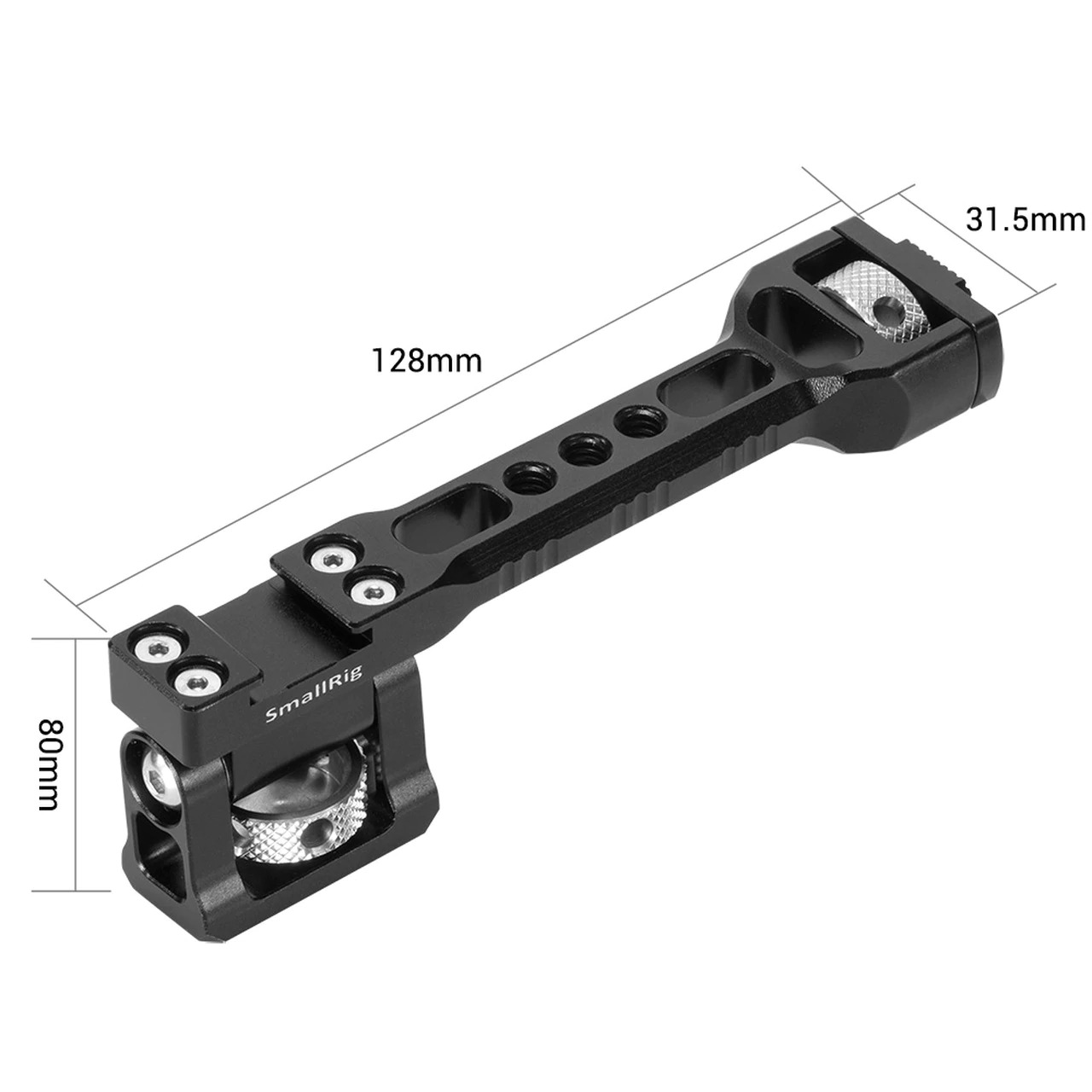

Product Dimensions: 128 x 80 x 31.5mm

Package Dimensions: 155 x 80 x 40mm

Net Weight: 125g

Package Weight: 157g

Material(s): Aluminum Alloy
