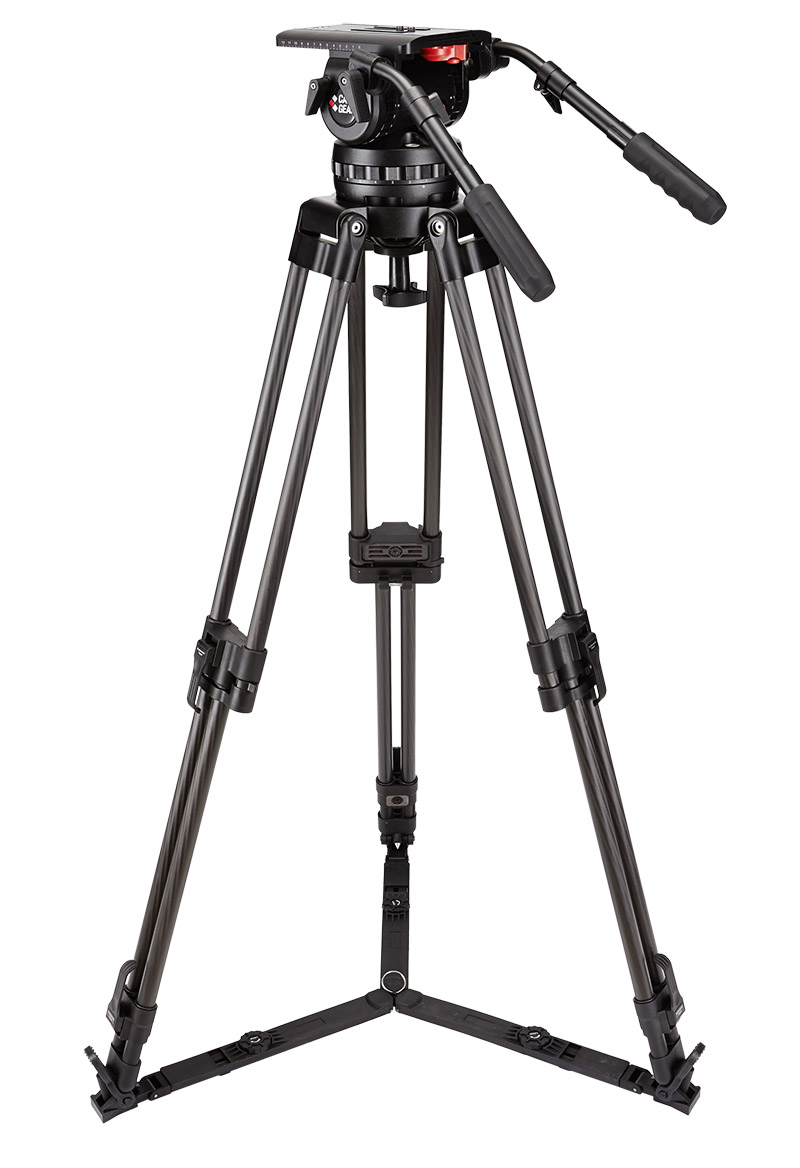

CAMGEAR V35P EFP GS150 Tripod Systems 150mm
CAMGEAR V35P EFP GS150 Tripod Systems 150mm ขาตั้งวิดีโอขนาด bowl 150 mm วัสดุคาร์บอนไฟเบอร์ น้ำหนักเบาแข็งแรงทนทาน พร้อมหัว V35P รับน้ำหนักได้ 36 กก. มาพร้อม ground spreader และกระเป๋าผ้าอย่างดี
System Configuration
- V35P Fluid Head
- EFP150/CF2 Two-Stage Carbon Fiber Heavy-Duty EFP Tripod
- Two PB-2 Telescopic Pan Bar (Left & Right)
- GS-1 Ground Spreader
- SB-3 Soft Bag
Specification
Payload Range 0-36 kgs/0-79 lbs
Weight 13.24 kgs/29.2 lbs
Maxiumum Height 1.83 m/72 in
Minimum Height 0.75 m/29.5 in
Transport Length 0.99 m/39 in

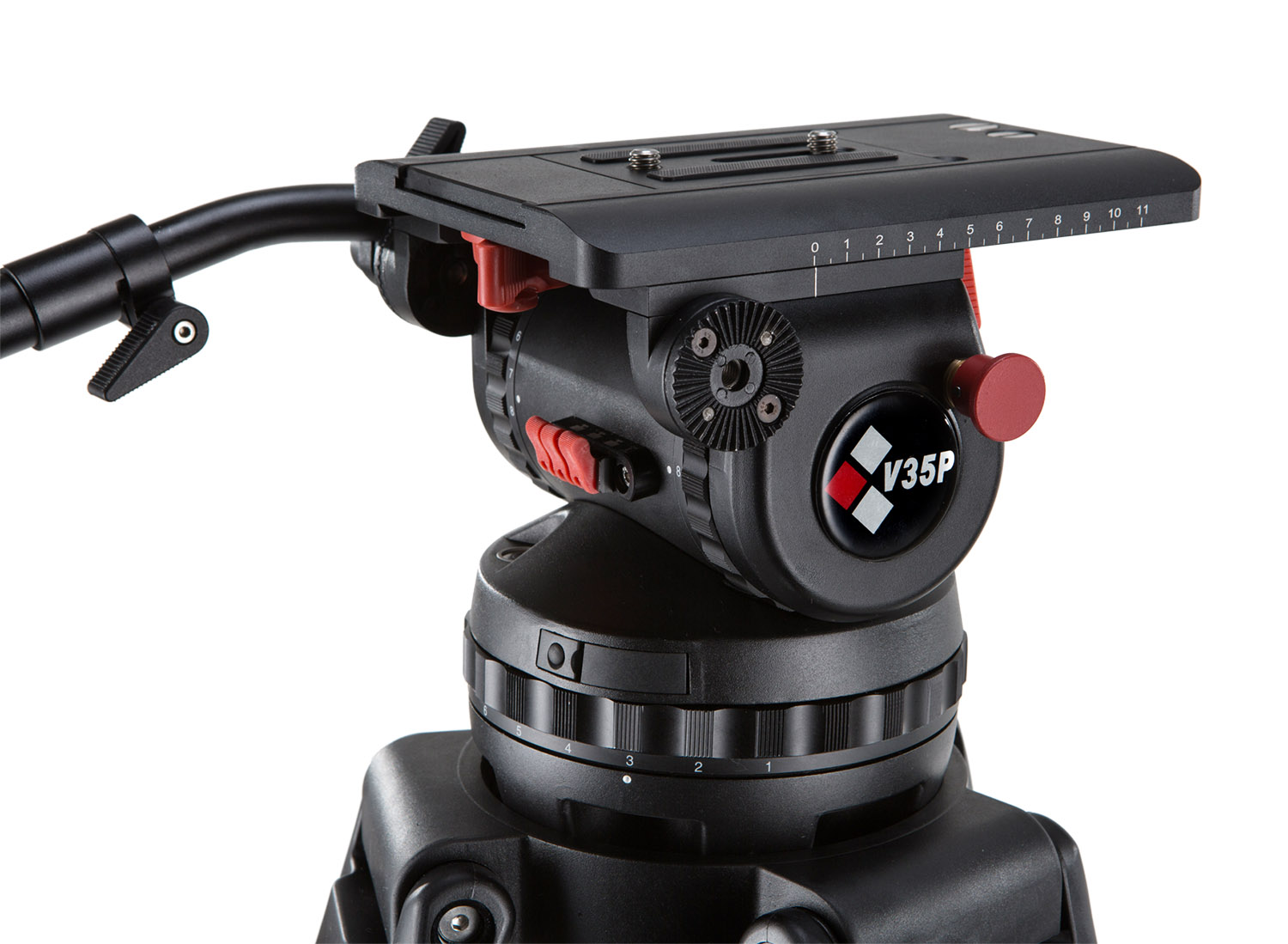

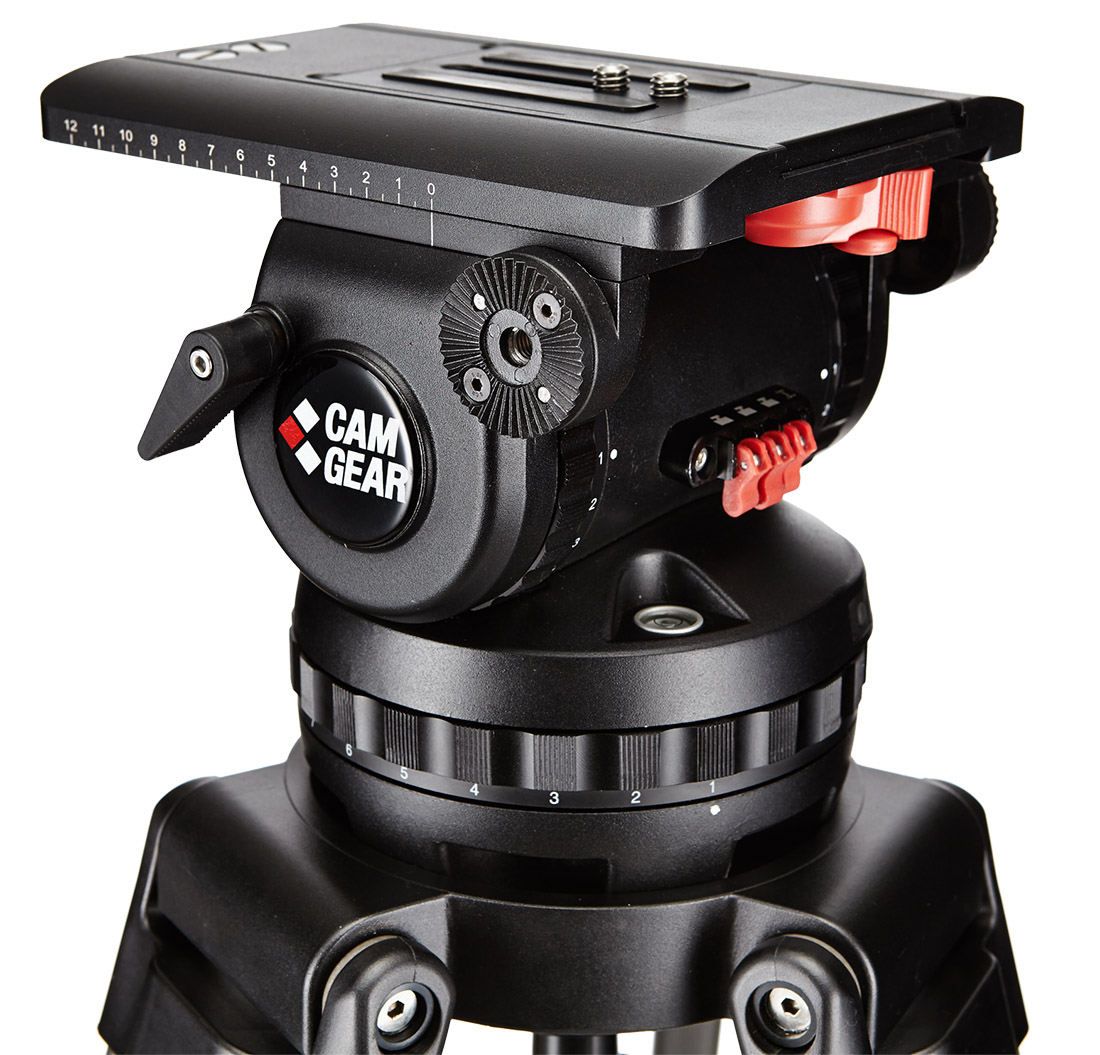

V35P Fluid Heads 150mm
Features
- Selectable 8 positions pan & tilt drag including zero postion, offer operators the silky smooth movement, precise motion tracking and shake-free shot.

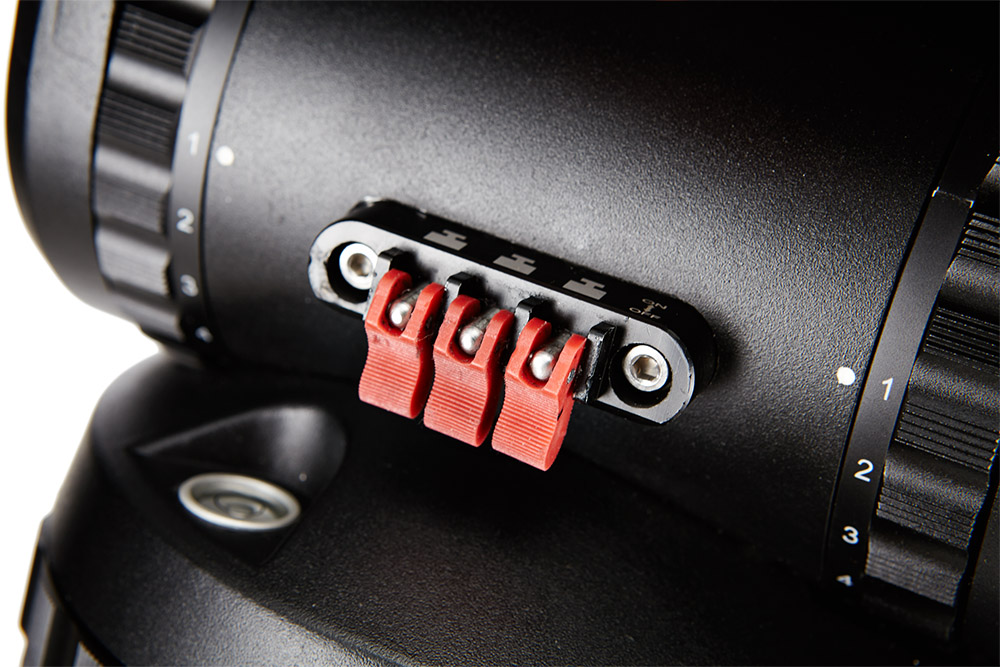

- Selectable 12 position counterbalance for cameras between 0-36 kgs/0-79 lbs. Thank to newly featured 4 added position, it can do much finer adjumstment for the cameras.
- Equipped with self-illuminating leveling bubble .
- Perfect solution for EFP and HD production, studio application with teleprompter or compact studio lens, 3D rig and Outside broadcasting application with compact studio lens.
- 150mm ball levelling

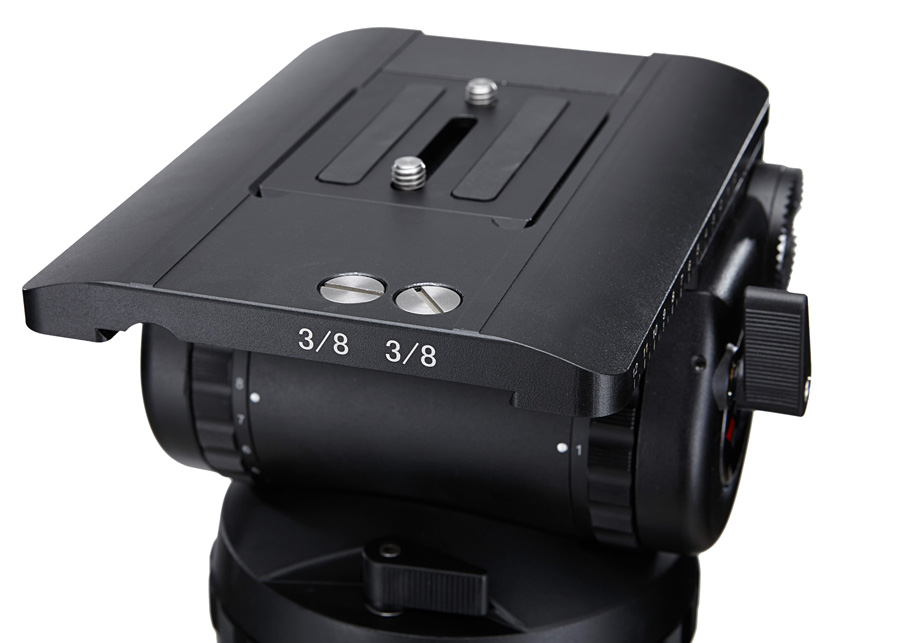

- Equiped with mini Euro plate quick release system, which enable faster setup of camera.
Specification
Model Number V35P
Payload Range 0-36 kgs/0-79 lbs
Camera Platform Type Mini Euro Plate
Sliding Range 120 mm/47.2 in
Camera Plate Two 3/8" screws
Counterbalance 12 steps (1-8 & 4 Adjusting Levers)
Tilt & Pan Drag 8 steps (1-8)
Tilt Range +90/-75°
Pan Range 360°
Operating Temperature -40° to +60° C / -40 to +140° F
Leveling Bubble Illuminated Leveling Bubble
Weight 7.03 kgs/16.1 lbs
Bowl Diameter 150 mm/5.9 in

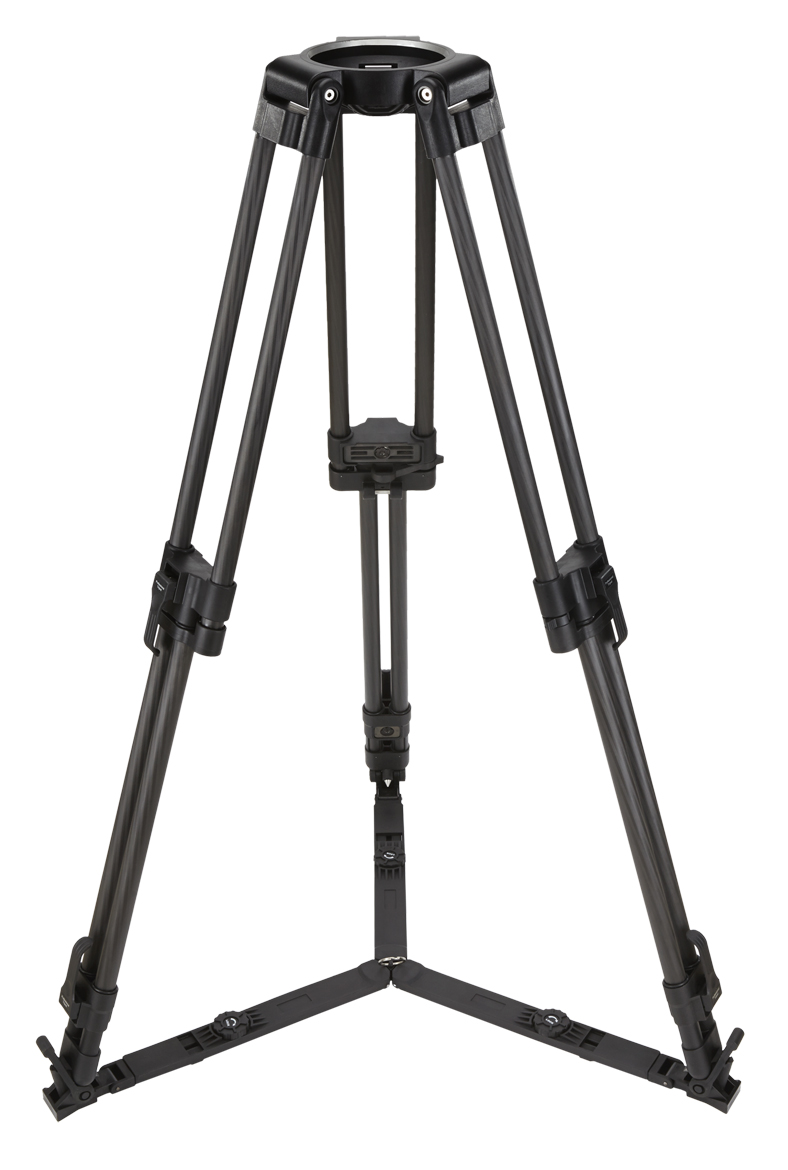

EFP150/CF2 Tripods 150mm
Features
- 2-Stage 150mm bowl carbon fiber tripod.
- Very sturdy construction, high torsion rigidity, it ensures rock solid base for majority of cameras. It is an ideal solution for EFP, HD production and studio application.
- With quick locking system and fast action transport clips.
- Come with ground spreader and able to use mid level spreader as well.
Specification
Payload 100 kgs/220 lbs
Bowl Diameter 150 mm/5.9 in
Construction 2 Stages
Material Carbon Fiber
Height with Ground Spreader 54-159 cm/21.2-62.6 in
Height with Mid-spreader 58-155 cm/22.8-61 in
Transport Length 78 cm/30.7 in
Weight 5.6 kgs/12.3 lbs
