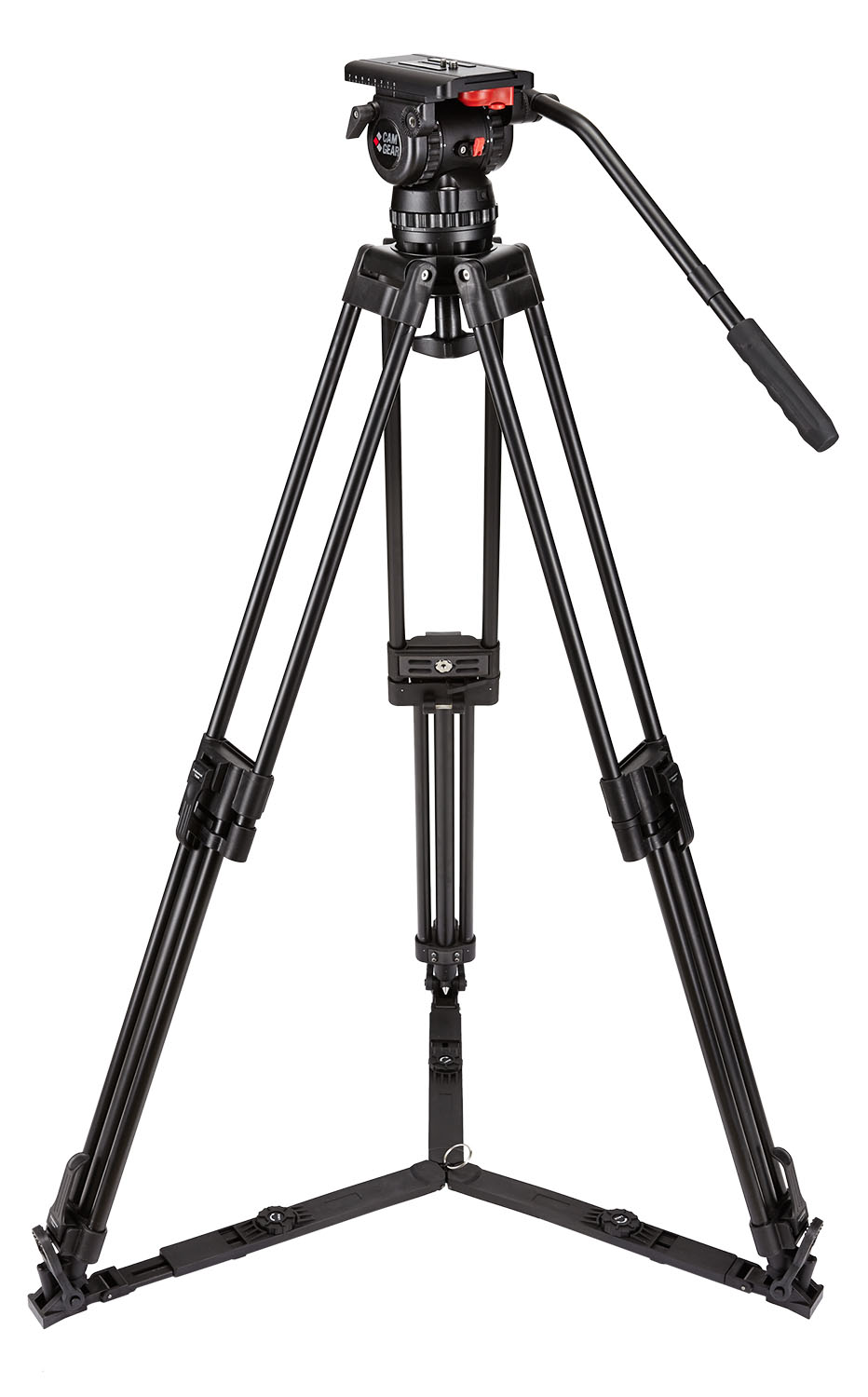

CAMGEAR V15P AL GS100 Tripod Systems 100mm
CAMGEAR V15P AL GS100 Tripod Systems 100mm ขาตั้งวิดีโอขนาด bowl 100 mm วัสดุอลูมิเนียมแข็งแรงทนทาน พร้อมหัว V15P รับน้ำหนักได้ 15 กก. มาพร้อม ground spreader และกระเป๋าผ้าอย่างดี
System Configuration
- V15P Fluid Head
- ENG/AL2 Two-Stage Aluminium 100mm ENG Tripod
- PB-1 Pan Bar
- GS-1 Ground Spreader
- SB-2 Soft Bag
Specification
Payload Range 0-15kg /0-33 lbs
Weight 8.06 kgs/17.8 lbs
Maxiumum Height 1.70 m/66.9 in
Minimum Height 0.61 m/24 in
Transport Length 0.88 m/34.6 in

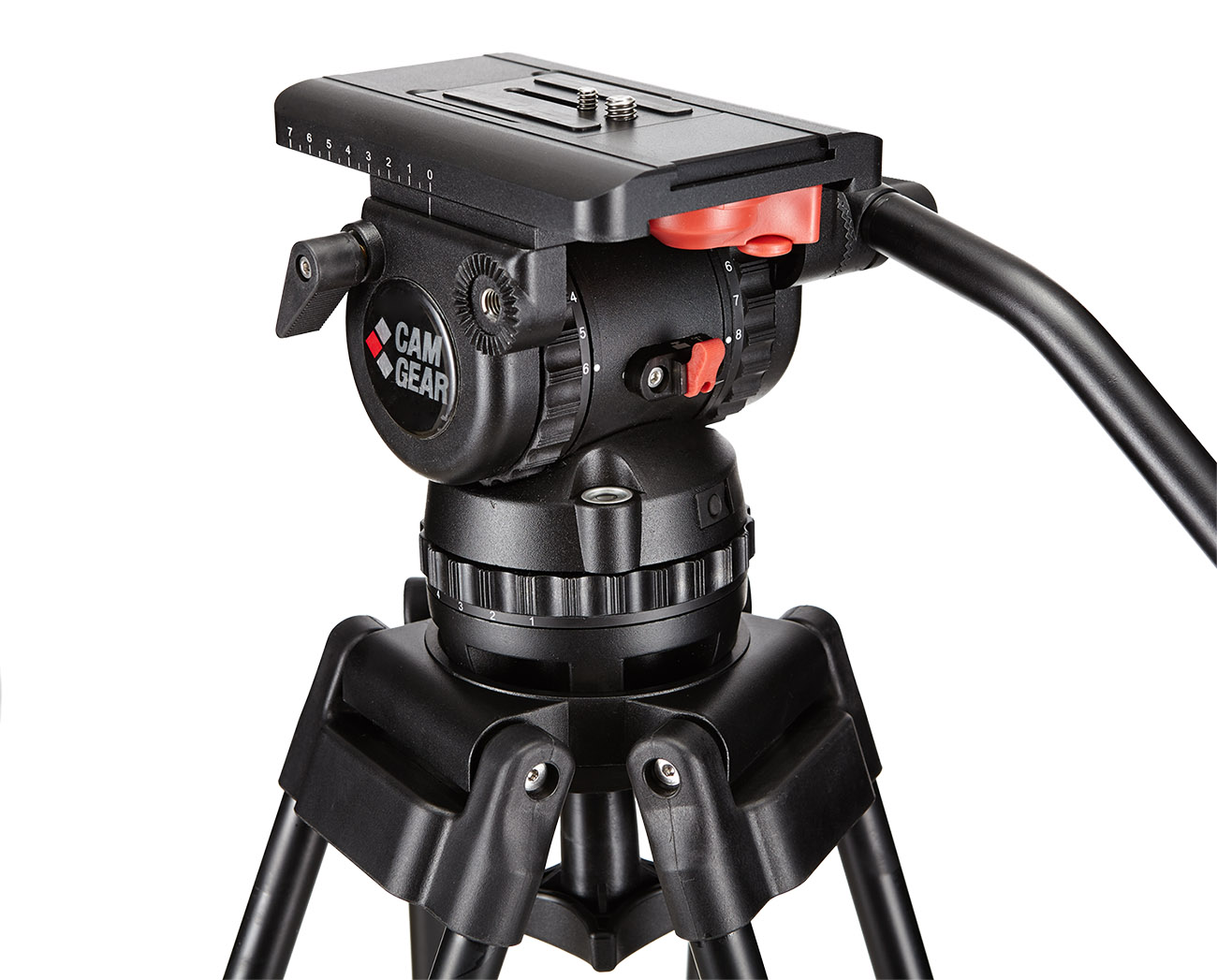

V15P Fluid Heads 100mm
Features
- Real professional drag performance, selectable 6 positions pan & tilt drag including zero postion, offer operators the silky smooth movement and precise framing.
- Selectable 9 position counterbalance for cameras between 0-15kgs / 0-33lbs. Thank to newly featured zero position, it can support the lightweight ENG camera as well.
- With self-illuminating leveling bubble.
- Ideal for the ENG cameras from XDCAM to P2HD with low or high profile configuration.
- 100m bowl head, compatible with all 100mm tripods on market.
- Equipped with mini Euro plate quick release system, which enable faster setup of camera.
Specification
Model Number V15P
Payload Range 0-15kgs/0-33 lbs
Camera Platform Type Mini Euro Plate
Sliding Range 70 mm/27.5 in
Camera Plate 1/4" and 3/8" screw

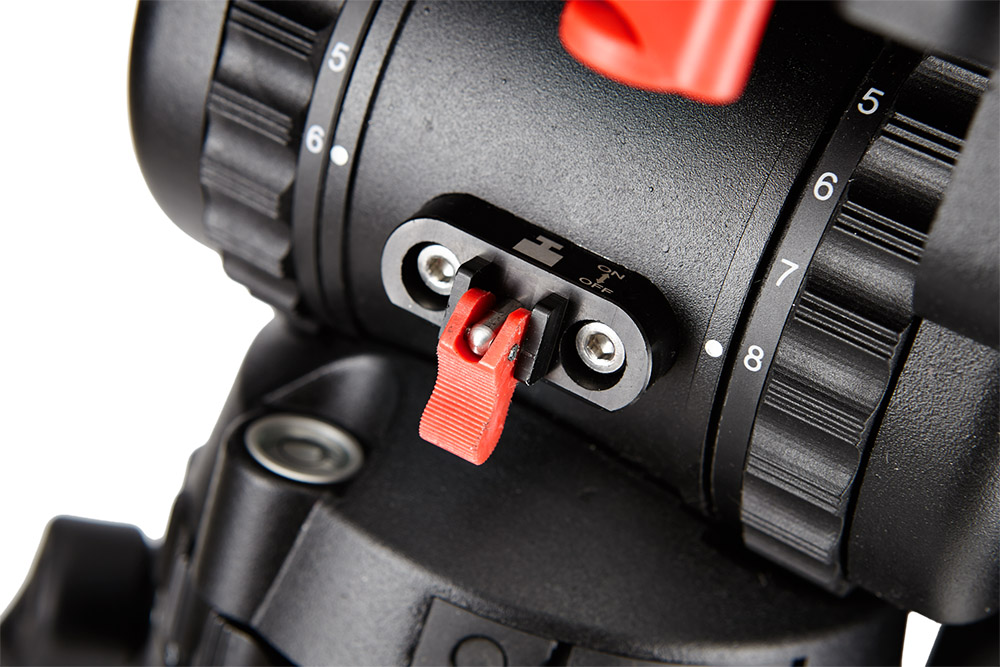

Counterbalance 9 steps (1-8 & 1 adjusting lever)
Tilt & Pan Drag 6 steps (1-6)
Tilt Range +90/-75°
Pan Range 360°
Operating Temperature -40° to +60° C / -40 to +140° F
Leveling Bubble Illuminated Leveling Bubble
Weight 3.4 kgs/7.5 lbs
Bowl Diameter 100 mm/3.9 in
ENG/AL2 Tripods 100mm
Features
- 2-Stage 100mm bowl aluminium tripod.
- Sturdy and robust design, support upto 75 kgs/165.3 lbs, suitable for ENG application.
- Double extension tripods are ideal for a much wider variety of application.
- With quick locking system and fast action transport clips.
- Come with ground spreader and able to use mid level spreader as well.
Specification
Payload 75 kgs/165.3 lbs
Bowl Diameter 100 mm/3.9 in
Construction 2 Stages
Material Aluminium
Height with Ground Spreader 45-154 cm/17.7-60.6 in
Height with Mid-spreader 52-150 cm/20.5-59 in
Transport Length 72 cm/28.3 in
Weight 4.56 kgs/10 lbs
