SmallRig Mini V-Lock Assembly Kit MD2801 เพลทติดแบต V-Mount ขนาดเล็กน้ำหนักเบา ยึดแน่นหนาด้วยน๊อตสองจุดป้องกันการหมุน

Key Features:

1. Standard V-Lock quick release set.

1. Lightweight and portable.

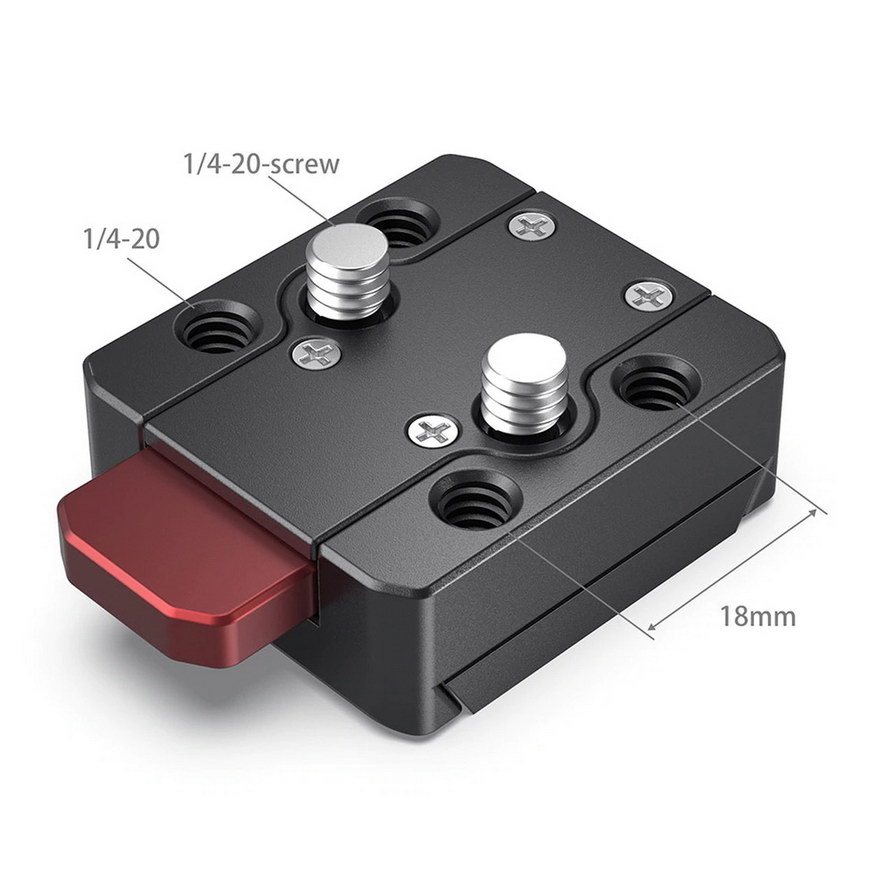

2. Featuring 2 1/4-20 mounting holes for anti-twisting.

3. The attached V -lock can replace the original V-Lock of the V-Mount battery.

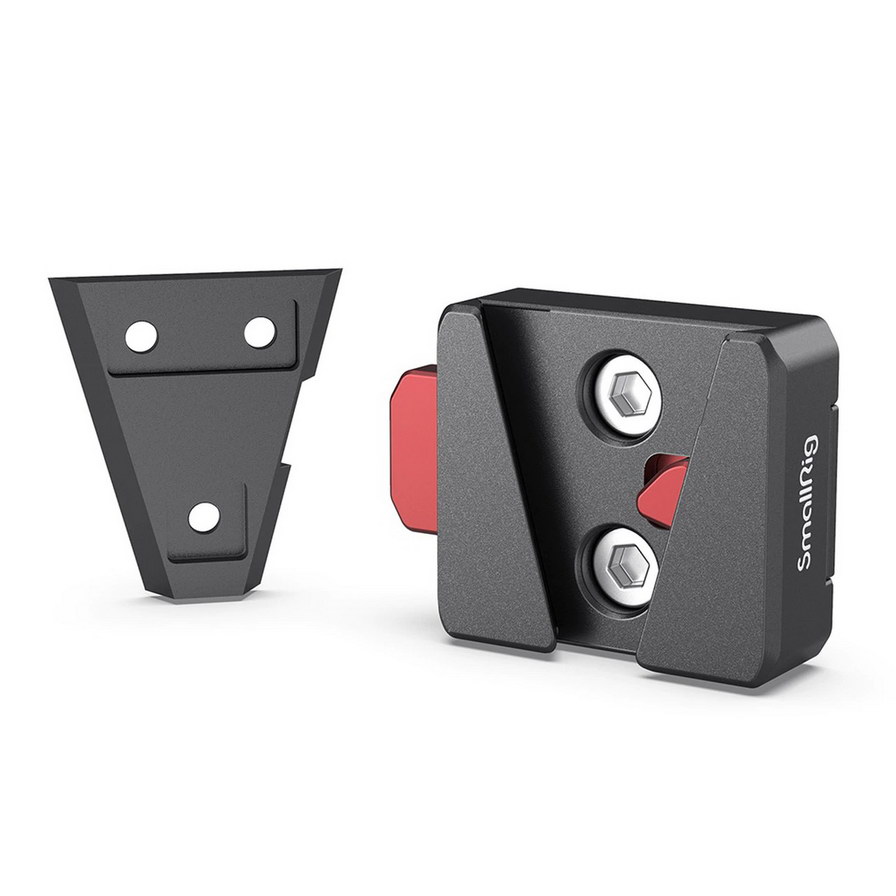

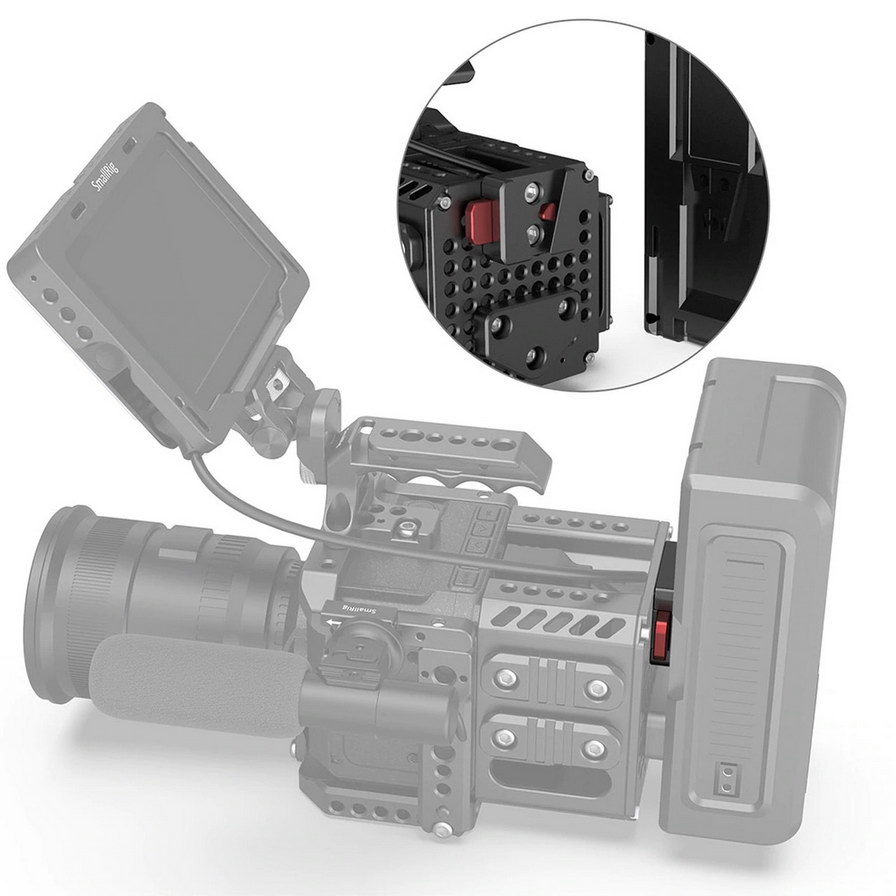

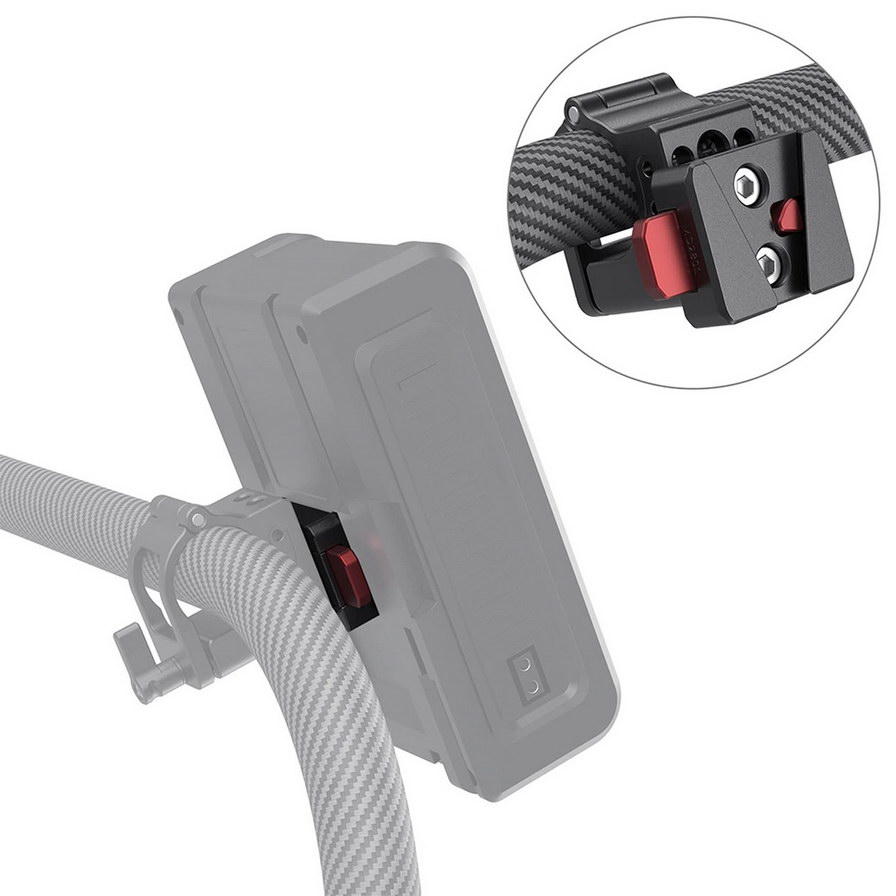

SmallRig Mini V-Lock Assembly Kit MD2801 is a quick release set based on the standard V-Lock. It comes with a Female V-Dock and a Male V-Lock. There are 2 1/4-20 mounting holes on the Female V-Dock, and you can attach this assembly directly to a SmallRig camera cage kit, SmallRig monitor frame, or SmallRig shoulder pad mount. In addition, you can mount this assembly kit to SmallRig battery hinge MD2802 which is designed for adjusting the angle of the battery with this setup to power all the accessories, which minimizes camera weight. The V-Lock with three M3 holes can be used as a replacement of the original V-Lock comes with the V-Mount battery.

DreamRig Designer: Simon Abele

Compatibility:

V-Mount Battery

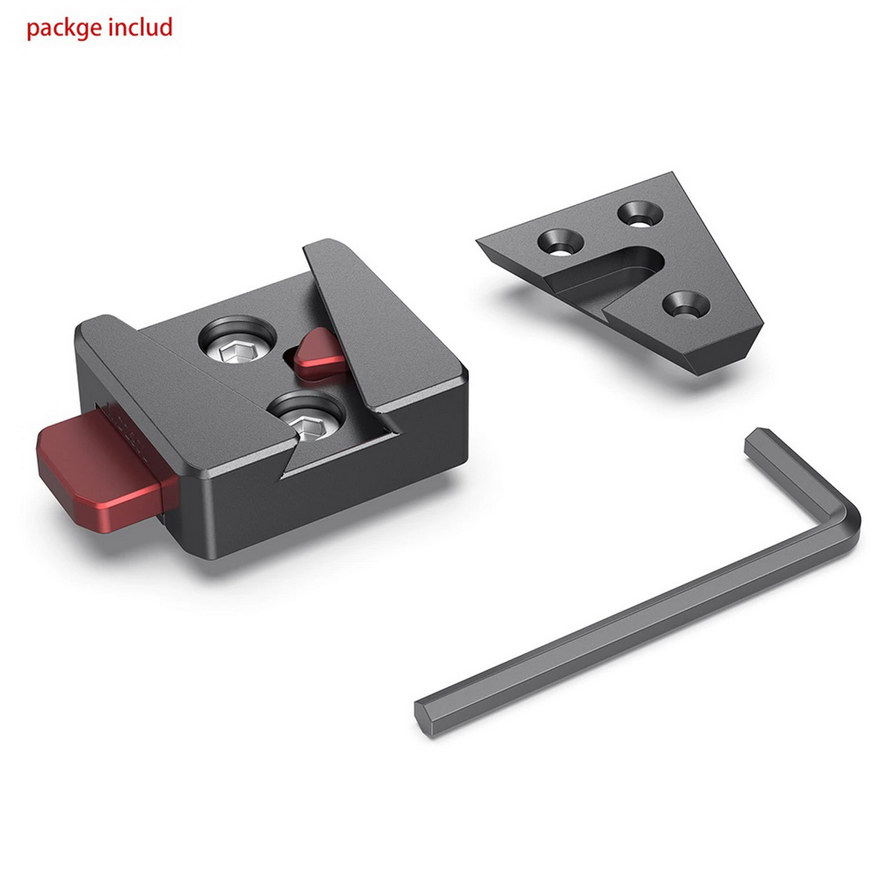

Package Includes:

1 x Female V-Dock

1 x Male V-Lock

1 x Spanner

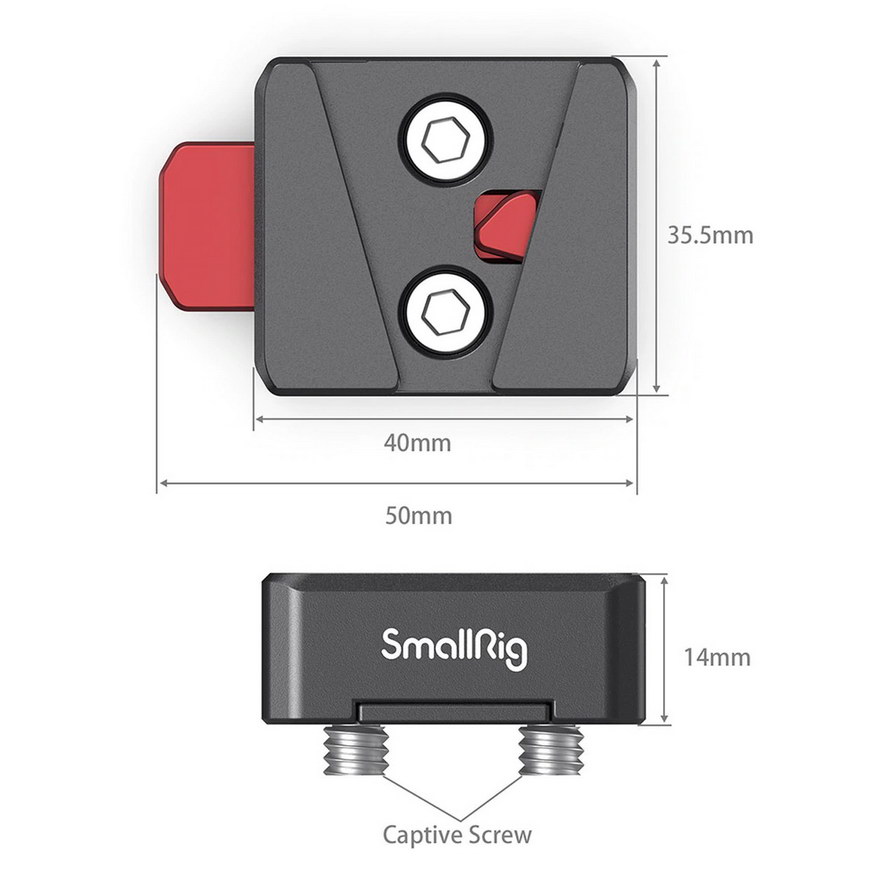

Product Dimensions: 52X35.5X14mm

Package Dimensions: 63X50X40mm

Net Weight: 48g

Package Weight: 66g

Material(s): Aluminum Alloy
